Assembly 32 Fuser Control Box Thru 36 AC Power Supply
| 32- NP Fuser Control Box -1 NP -2 NP -3 06F0411 4 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 10 PP -5 06F0172 8 Relay, Solid State -6 06F0413 16 Screw, Phillips Bind Hd M4 X 12 PP -7 88F3311 1 Relay, Socket -8 06F0413 2 Screw, Phillips Bind Hd M4 X 12 PP -9 53F1774 1 Relay, (US/Canada 60 Hz and Japan 50 Hz or 60 Hz) (K601) -10 53F1815 1 Relay, (Europe 50 Hz and Norway 50 Hz) (K601) -11 88F3312 1 Diode, Flyback Asm -14 06F1022 6 Resistor, without Thermal Switch Asm -15 06F1023 2 Resistor -16 06F0173 2 Switch, Thermal -17 06F0407 4 Nut, M3 PP -18 06F0405 4 Washer, Spring D3 PP -19 06F0420 8 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP -31 88F3368 1 Jumper, Shorting -32 88F3313 1 Block, Terminal -33 88F3314 1 Jumper, Shorting -34 88F3315 1 Jumper, Shorting -35 88F1626 2 Screw, Phillips Pan Hd M4 X 20 PP -37 06F0413 6 Screw, Phillips Bind Hd M3 X 20 PP -39 57G6526 1 Board, FS051 (IS2 @ 310) -39 90H1044 1 Board, FS053 (IS1, ID1/ID2) -39 24H8012 1 Board, FS071 (IS2 @ 324, ID3/4 and IR1/IR2 without bloom improvement) -39 24L4358 1 Board, FS082 (IR1/IR2 with bloom improvement hardware) -39 11L6132 1 Board, FS083 (IR3/IR4) -39 02N7738 1 Board, FS101/FS102 - For Printers with FC 4410 or 9410 - Automatic Forms Based Temperature Adjustment -43 06F0417 2 Washer, VF PP -44 06F0420 2 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP *1 Screws: Accessory of No. 7 ** Not in all machines -50 88F3316 1 Capacitor, Asm -51 88F3317 1 Capacitor, Asm -52 88F3318 1 Capacitor, Asm -56 53F1773 1 Board, Relay (RB091) (Printers without Backup Idler Roll) -56 45G1862 1 Board, Relay (RB092) (Printers with Backup Idler Roll) -61 28P1208 1 Bracket, SK091 card -62 28P1209 1 Card, SK091 -63 28P1210 4 Screw, Phillips Pan Hd with Star Wshr & Wshr M3x20 -64 28P1211 1 Cable, SK091 card -65 28P1212 1 Cover, SK091 card -66 06F0411 2 Screw, Phillips Pan Hd with Star Wshr & Wshr M4x8 -67 04H1113 1 Screw, Phillips Pan Hd with Star Wshr & Wshr M5x12 |  |

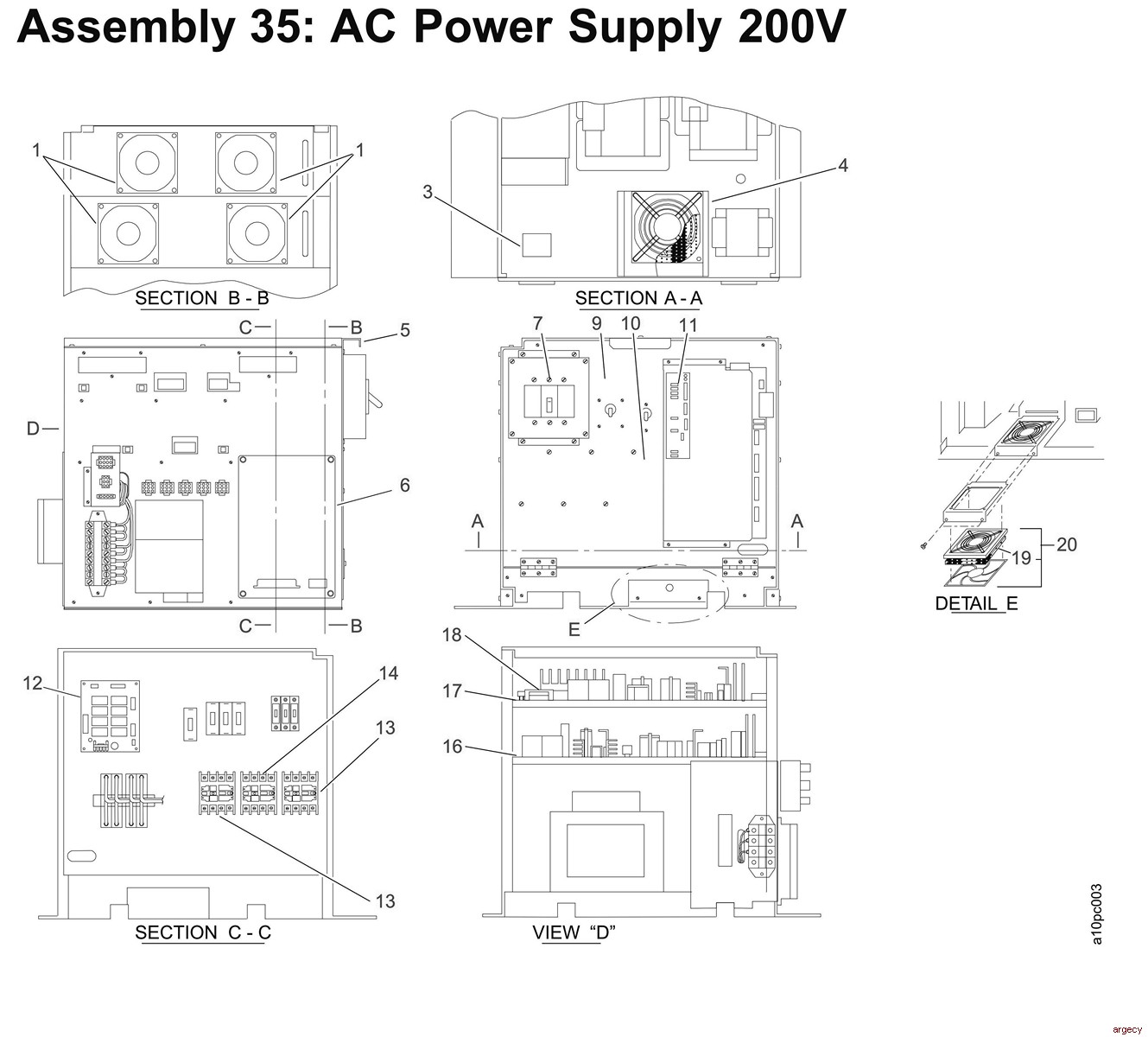

| 35- NP AC Power Supply 200V -1 45G1876 4 Fan,(2) Asm -3 53F1764 1 Relay, (K505) 200V/400V -4 45G1875 1 Fan,(1) Asm -5 45G1869 1 Power Supply 200V AC (IS2 @ 310) -5 90H1751 1 Power Supply 200V AC (IS2 @ 324 , ID3/4 & IR3/4) -5 89H9659 1 Power Supply 200V AC (IR1/2, IS1 &ID1/2) -6 27P9523 1 RB311, Relay Board -7 45G1871 1 Breaker, Circuit (1) 200V (IS1, IS2 @ 310, ID1/2 & IR1/2) -7 11L5197 1 Breaker, Circuit (1) 200V (IS2 @ 324, ID3/4 & IR3/4) -9 45G1872 1 Breaker, Circuit (2) 200V -10 45G1873 1 Breaker, Circuit (3) 200V -11 45G1859 1 Card Asm, SQ081 (IS2 @ 310) -11 89H9661 1 Card Asm, SQ082 (IS1, IS 2 @ 324, IDx, & IRx) -12 45G1868 1 Card, SR081 -13 45G1891 2 Relay, (1) 200V -14 45G1892 1 Relay, (2) 200V -16 45G1844 1 Power Supply DC1 (except EMEA) -16 28P0960 1 Power Supply DC1 (EMEA) -17 45G1843 1 Power Supply DC2 (except EMEA) -17 28P0961 1 Power Supply DC2 (EMEA) -18 04H0210 1 Fuse -19 88F3386 1 Filter, Power Supply -20 88F3387 1 Filter Asm, Power Supply |  |

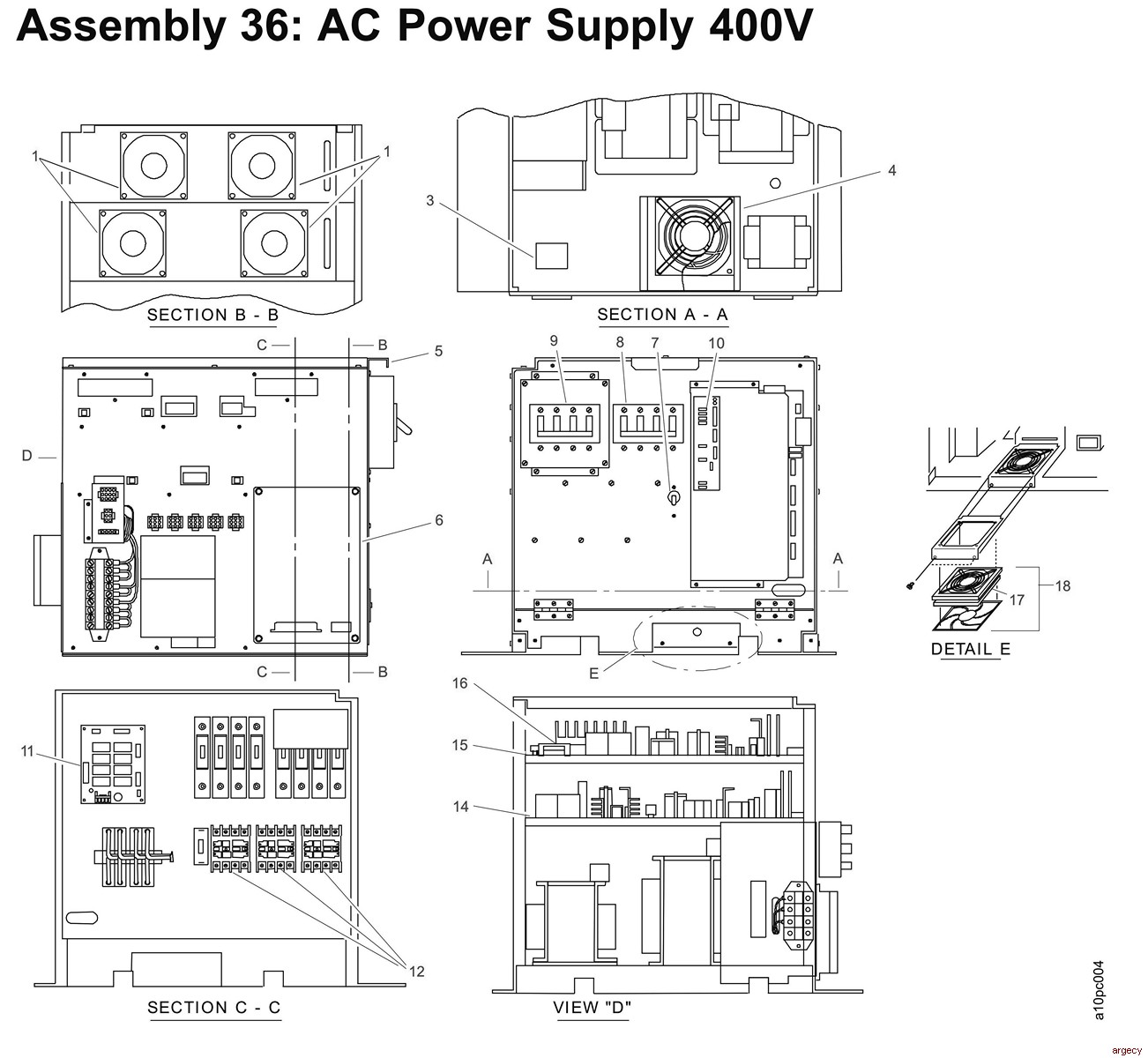

| 36- NP AC Power Supply 400V -1 45G1876 1 Fan (2) Asm -3 53F1764 1 Relay, (K505) 200V/400V -4 45G1875 1 Fan (1) Asm -5 45G1870 1 Power Supply (400V), AC (IS2 @ 310) -5 89H9660 1 Power Supply (400V), AC (IR1/2, IS1, ID1/2 ) -5 90H1752 1 Power Supply (400V), AC (IS2 @ 324, ID3/4 & IR3/4) -6 27P9523 1 RB311, Relay Board -7 45G1873 1 Breaker, Circuit (CB504) 400V -8 53F1761 1 Breaker, Circuit (CB503) 400V -9 45G1874 1 Breaker, Circuit (CB501) 400V -10 45G1859 1 Card Asm, SQ081 (IS2 @ 310) -10 89H9661 1 Card Asm, SQ082 ( IS1, IS2 @ 324, IDx & IRx) -11 45G1868 1 Card, SR081 -12 45G1892 3 Relay, (K501-503) 400V -14 45G1844 1 Power Supply DC1 (except EMEA) -14 28P0960 1 Power Supply DC1 (EMEA) -15 45G1843 1 Power Supply DC2 (except EMEA) -15 28P0961 1 Power Supply DC2 (EMEA) -16 04H0210 1 Fuse -17 88F3386 1 Filter, Power Supply -18 88F3387 1 Filter Asm, Power Supply |  |
