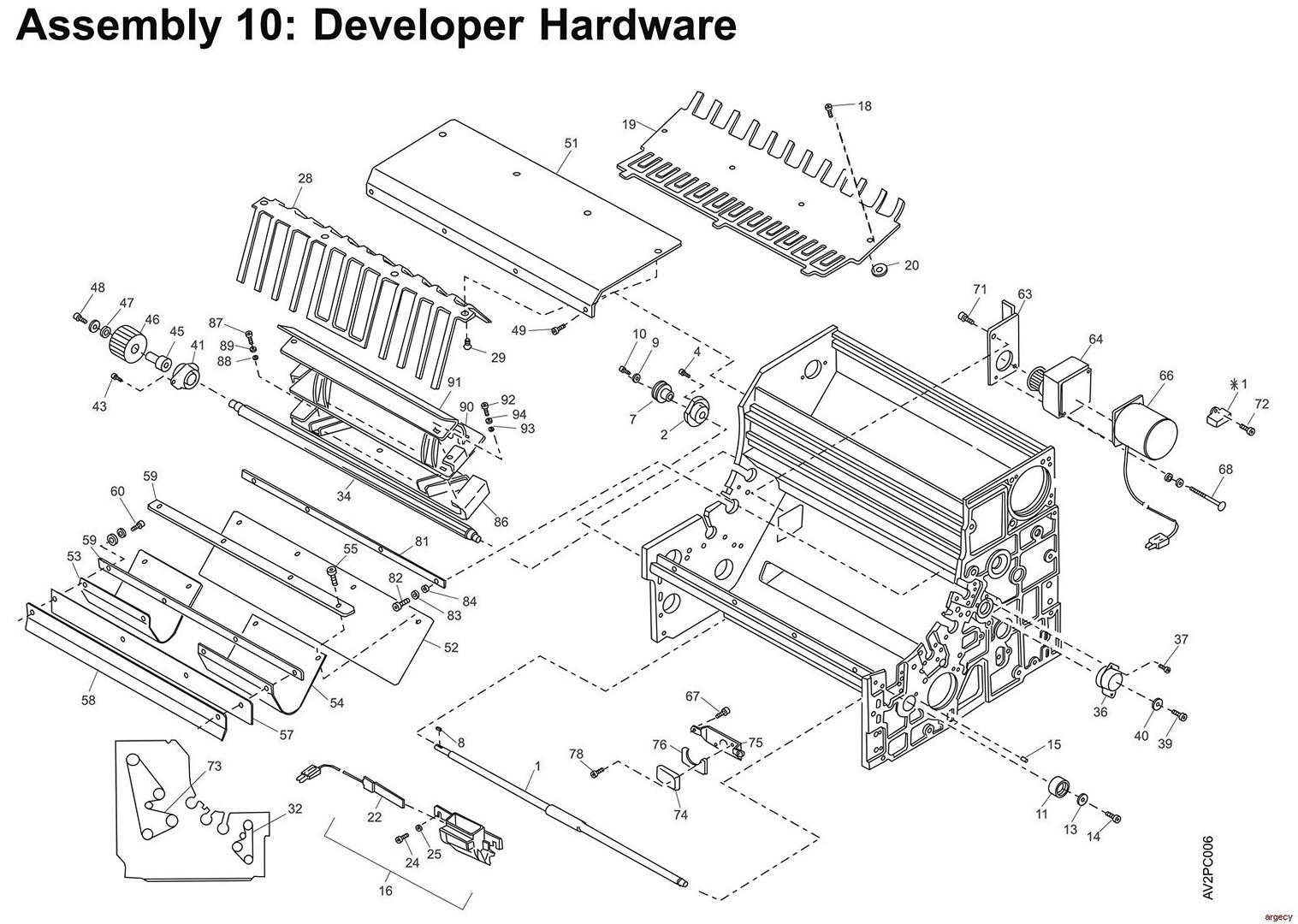

Assembly 10 Developer Hardware







10 NP Developer Hardware

57G6751 Toner Control Roll
Fully refurbished with 90-day warranty
57G6751



2
45G1895 Toner Control Bearing Asm
Fully refurbished with 90-day warranty
45G1895



4 06F0420 2 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

7 06F0616 Pulley, Toner Control Asm

8 06F0408 Key, 3 X 3 X 10 PP

9 06F0417 Washer, VF PP

10 06F0401 Screw, Phillips Pan Hd with Star Wshr & Wshr M3 X 12 PP

11 53F1843 Bearing, Toner Control Asm

13 06F1158 Washer, FP

14 06F0415 Bolt, Hexagon Socket Hd with Star Wshr & Wshr M4 X 12 PP

15 88F2582 Lock, Bearing

16
57G4423 Toner Control Assembly
Fully refurbished with 90-day warranty
57G4423




18 06F0420 4 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

19 30H2767 Plate, Upper Toner Belt

20 06F0420 4 Washer, Press PP

22
45G1877 Toner Control Assembly
Fully refurbished with 90-day warranty
45G1877
$322.00



24 06F0404 2 Bolt, Hexagon Socket Hd M4 X 8 (stainless) PP

25 06F0406 2 Washer, Bolt D4 (brass) PP

26 57G6658 Mixer, Developer (T) Asm (All Except 310 PPM, 324 PPM, 480/600 DPI and 229 PPM duplex)

28 NP

29 06F0420 4 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 8 PP

32 53F1849 Belt, Toner Control

34
57G6754 Toner Feed Shaft
Fully refurbished with 90-day warranty
57G6754



36 90H2556 Flange Housing

37 06F0420 2 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

39 06F0415 Bolt, Hexagon Socket Hd with Star Wshr & Wshr M4 X 12 PP

40 06F0417 Washer PP

41 90H2555 Flange and Bearing Asm

43 06F0420 2 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

45 88F1636 Shaft, Pulley Asm

46 53F1847 Pulley, Toner Feed

47 06F0417 Washer, Shaft Clamp PP

48 88F1626 Bolt, Hexagon Socket Hd M4 X 38 PP

49 06F0420 4 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP 51 NP

52 30H6693 Plate, Toner Feed

53
57G4429 Toner Feed Shaft Cover Seal
Fully refurbished with 90-day warranty
57G4429



54 57G4428 Seal, Toner Feed Shaft Cover

55 06F0420 4 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

57 04H1124 Scraper, Toner Feed

59 NP

60 06F0404 4 Bolt, Hexagon Socket Hd M4 X 8 (stainless) PP

63 57G4426 Holder, Toner Feed Motor

64
45G1900 60Hz Gearhead Asm
Fully refurbished with 90-day warranty
45G1900



66
45G1881 Toner Feed Motor and Capacitor Asm
Fully refurbished with 90-day warranty
45G1881



67 06F0420 2 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

68 06F0402 3 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 60 PP

71 06F0420 2 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

72 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

73 53F1848 Belt, Toner Feed

74
45G1866 Toner Empty Sensor
Fully refurbished with 90-day warranty
45G1866



75 57G4425 Holder, Toner Empty

76 88F2598 Plate, Toner Empty Beat

78 88F1626 2 Screw, Phillips Pan Hd with Star Wshr & Wshr M3 X 8 PP

81 NP

82 57G4439 4 Bolt, Hexagon Socket Hd M3 X 6 (stainless)

83 57G4433 4 Washer, Spring D3 (stainless)

84 06F0406 4 Washer, Bolt D3 (brass) PP

86 04H1095 Plate, Mixing Asm

87 NP

88 06F0406 3 Washer, Bolt D4 (brass) PP

89 06F0405 3 Washer, Spring D4 PP

90 04H1094 Plate, Mixing U2 Asm

91 04H1096 Plate, Mixing U3

92 06F0404 4 Screw, Phillips Pan Hd M4 X 8 (brass) PP

93 06F0406 4 Washer, D4 PP

94 06F0405 4 Washer, Spring D4 (stainless) PP

95 04H1093 Plate, TF Protector

96 24H8057 Seal, Toner Hopper Rear

97 24H8058 Seal, Toner Hopper
4000 Parts 3130
