IBM Infoprint M40 4896 Parts






Please call for parts assistance

Looking for whole machines? Click here

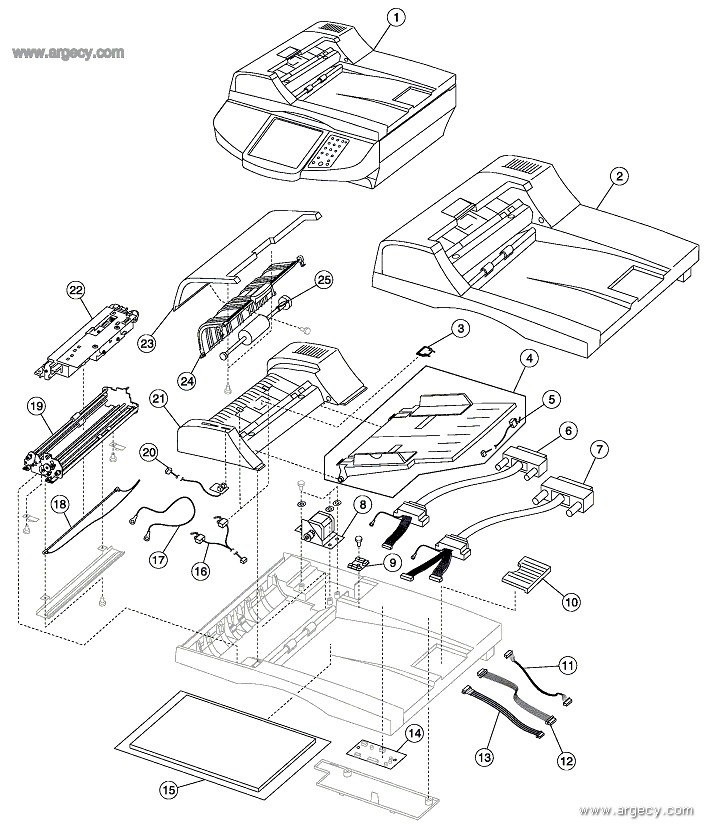

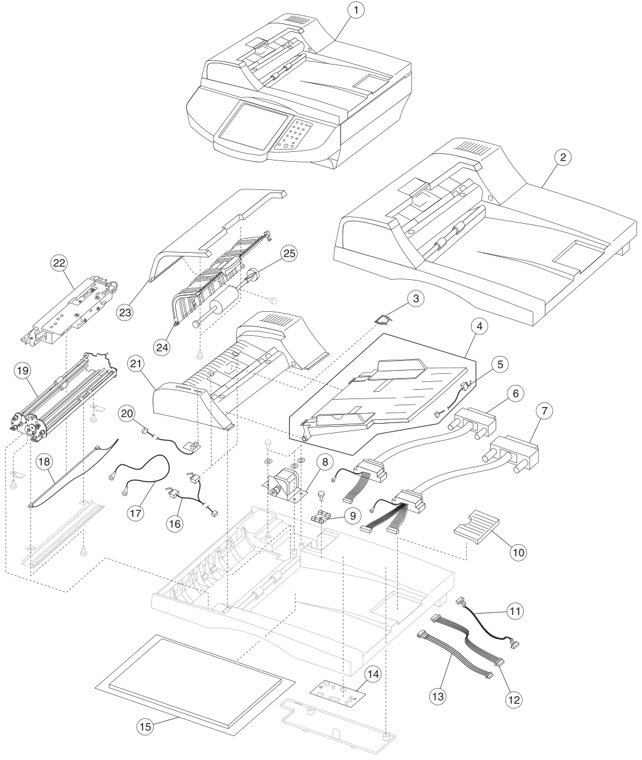

1
4896-111 IBM M40 MFP Option
Fully refurbished with 90-day warranty
4896-111 39v1297 40x2176



4896-111 IBM M40 MFP Option
New
4896-111 39v1297 40X2176 (New)

Retired, no longer available: Contact for alternatives



4896-211 IBM M40 MFP Option
Fully refurbished with 90-day warranty
4896-211 39v1298



4896-311 IBM M40 MFP Option Color 1764
New
4896-311 39V2053 (New)

Retired, no longer available: Contact for alternatives



4896-311 IBM M40 MFP Option Color
Fully refurbished with 90-day warranty
4896-311 39V2053



4896-211 IBM M40 MFP Option
New
4896-211 39v1298 (New)

Retired, no longer available: Contact for alternatives



Scanner entire unit

2
40X2180 Document Cover Assembly (ADF)
New
40X2180 (New)
$699.00



40X2180 Document Cover Assembly (ADF) Whole upper ADF
Fully refurbished with 90-day warranty
40X2180
$399.00



3
40X2538 MFP Separator Roll Assembly
New
40X2538 (New)
$12.40



4

40X2532 ADF Document Input Tray
Fully refurbished with 90-day warranty
40X2532
$34.71



5 40X2542 Paper length sensor

6
40X2550 ADF/CCD Motor Cable (10-Pin)
New
40X2550 (New)
$15.72



7
40X2551 ADF/CCD data cable (26-pin)
New
40X2551 (New)
$19.71



8
40X2547 ADF Paper Feed Motor
New
40X2547 (New)
$28.29



40X2547 ADF Paper Feed Motor
Fully refurbished with 90-day warranty
40X2547
$24.71



9
40X2548 ADF Interface Board
New
40X2548 (New)
$15.61



10
40X2533 Paper Stop
New
40X2533 (New)
$11.94



11 40X2549 ADF sensor cable (6-pin)

12 40X2543 ADF FF to motor/distribution cable

13 40X2546 Paper feed motor cable (4-pin)

14
40X2552 ADF Motor/Distribution Board
New
40X2552 (New)
$38.71



40X2552 ADF Motor/Distribution Board
Fully refurbished with 90-day warranty
40X2552
$83.05



15
40X2534 Scanner Cushion
New
40X2534 (New)
$23.65



16 40X2541 Paper present/feed sensors

17 40X2586 Paper present/feed ground cable

18
40X2192 ADF Lamp
New
40X2192 (New)
$18.30



19

40X2184 Paper Feed Assembly With Paper Feed 2 Sensor
Fully refurbished with 90-day warranty
40X2184
$61.46



20 40X2598 ADF upper cover sensor

21
40X2537 ADF lower cover assembly
New
40X2537 (New)
$30.64



including
ADF lower cover (1)
Mylar (1)

22
40X2183 ADF Optical Unit Assembly
New
40X2183 (New)
$119.96



40X2183 ADF Optical Unit Assembly
Fully refurbished with 90-day warranty
40X2183
$71.21



23
40X2536 ADF Outer Cover
New
40X2536 (New)
$18.62



24
40X2535 ADF Upper Cover
Fully refurbished with 90-day warranty
40X2535
$35.66



25
40X2540 M40 MFP Pick Roll Assembly
New
40X2540 (New)
$34.96

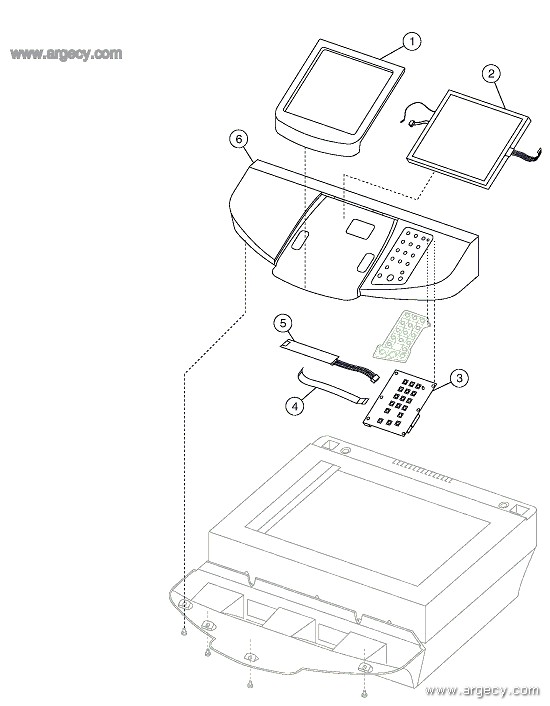

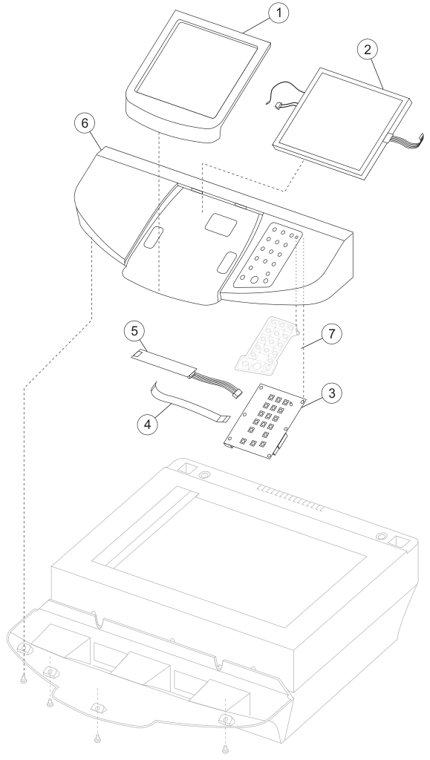

1 40X2593 Bezel

2
40X2556 Display Panel Assembly
New
40X2556 (New)
$155.72



40X2556 Display Panel Assembly
Fully refurbished with 90-day warranty
40X2556
$90.71



3
40X2555 Keypad Board
New
40X2555 (New)
$61.46



40X2555 Keypad Board
Fully refurbished with 90-day warranty
40X2555
$45.21



4 40X2558 FFC cable

5
40X2557 LCM HV Inverter Board
Fully refurbished with 90-day warranty
40X2557
$34.71



6
40X2554 Operator Panel Cover
New
40X2554 (New)
$16.66

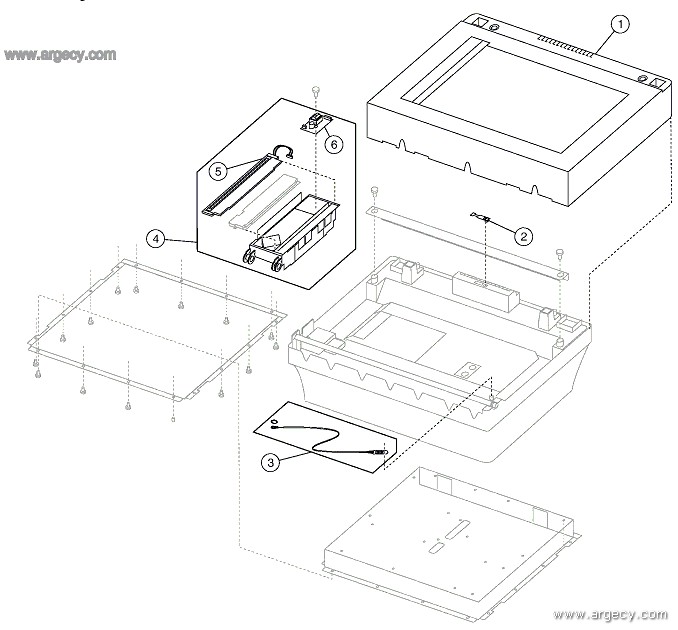

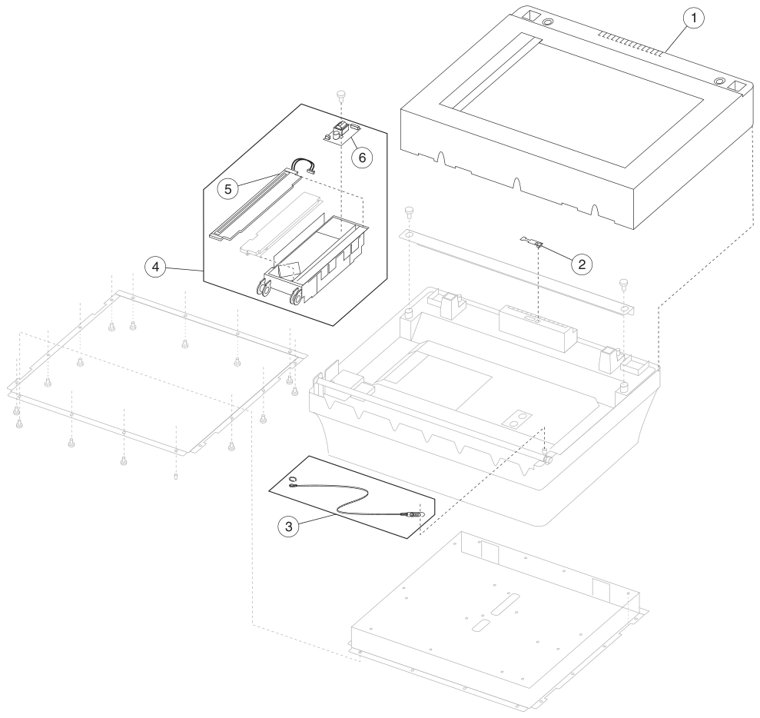

1
40X2559 Flatbed Cover With Glass
New
40X2559 (New)
$26.57



40X2559 Flatbed Cover With Glass
Fully refurbished with 90-day warranty
40X2559
$29.71



2

3

includes
Carriage transport belt
Clip

4

40X2193 Flatbed CCD Assembly
Fully refurbished with 90-day warranty
40X2193 40x2560
$71.21



5
40X2561 Flatbed CCD Lamp Assembly
New
40X2561 (New)
$19.63



6

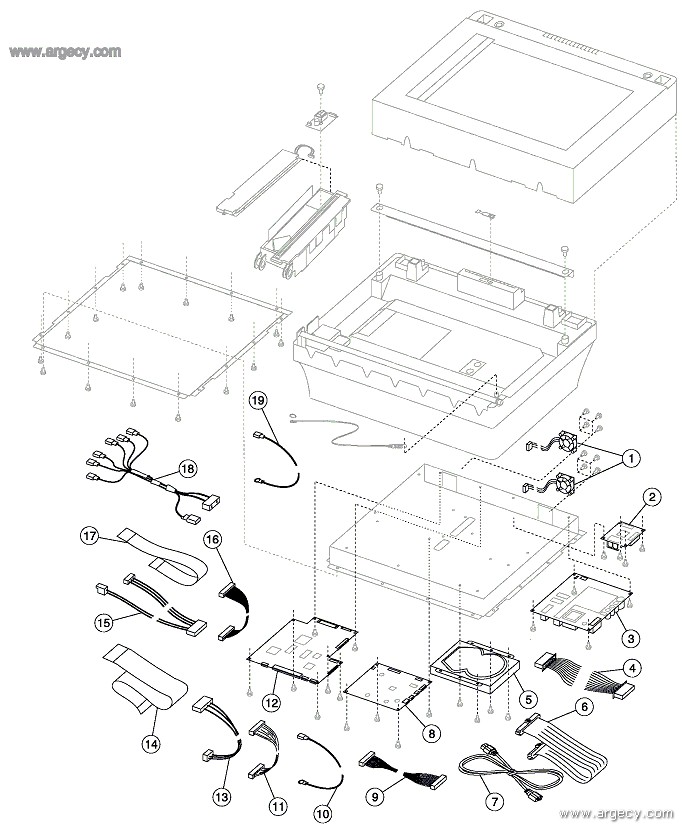

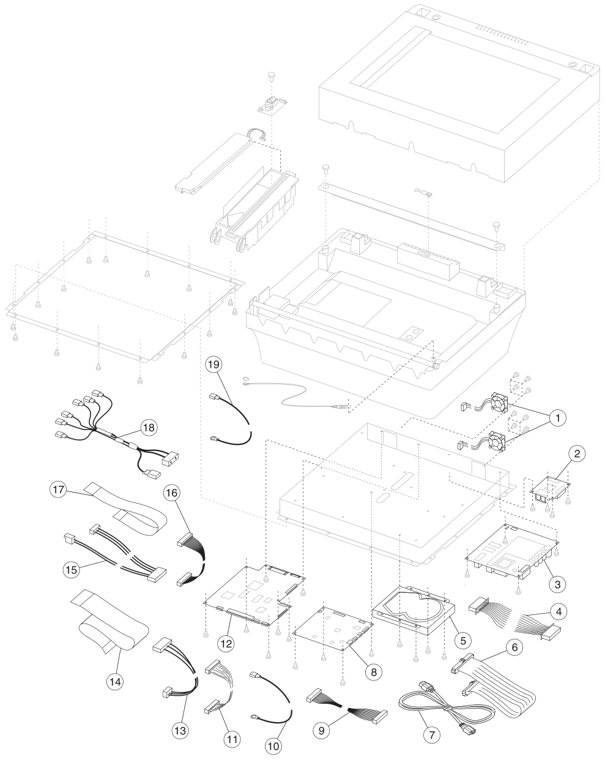

1 40X2580 Control cooling fan (1 cooling, 2 clips)

2
40X2567 Modem board
New
40X2567 (New)
$69.71



40X2567 Modem board
Fully refurbished with 90-day warranty
40X2567
$44.71



(models 4896-101 or 201 only)

3
40X2568 Power Supply Board
New
40X2568 (New)
$61.46



40X2568 Power Supply Board
Fully refurbished with 90-day warranty
40X2568
$38.71



4 40X2572 Display cable

5
40X2195 Hard Disk Drive Assembly
New
40X2195 (New)
$84.21



40X2195 Hard Disk Drive Assembly
Fully refurbished with 90-day warranty
40X2195
$245.12



6 40X2573 Hard drive data cable (80-pin)

7 40X2581 AC jumper power cord

8

40X2565 A1 Board With Modem
Fully refurbished with 90-day warranty
40X2565 40X5100



9 40X2574 Modem to scanner control cable (30-pin) (models 4896-101 or 201 only)

10 40X2587 Document cover sensor cable

11 40X2578 A1 to scan control cable (12-pin)

12
40X2194 Scanner Control Board Assembly
New
40X2194 40x2197 21J0064 (New)
$298.71



40X2194 Scanner Control Board Assembly
Fully refurbished with 90-day warranty
40X2194 40X2197 21J0064
$142.72



13 40X2577 Hard drive PS cable (4-pin)

14 40X2571 Flatbed CCD cable (36-pin)

15 40X2575 Power distribution cable (2+3-pin)

16 40X2579 Motor cable

17
40X2570 Flatbed Motor Cable (16-Pin)
New
40X2570 (New)
$12.50



18 40X2576 AC power cable (3+3-pin)

19 40X2588 Control panel ground cable

20
40X2660 Modem Display Toroid
New
40X2660 (New)
$144.28



40X2660 Modem Display Toroid
Fully refurbished with 90-day warranty
40X2660



21
40X2661 AC Power Cord Toroid
New
40X2661 (New)
$284.37


NS
40X2582 PCI Cable
New
40X2582 (New)
$20.18



NS
40X2583 PCI Cable (20 ft.)
New
40X2583 (New)
$94.17



NS
40X2584 Scanner PCI Card Assembly
New
40X2584 (New)
$119.71



40X2584 Scanner PCI Card Assembly
Fully refurbished with 90-day warranty
40X2584
$89.71



NS 40X4833 4 inch wire harness USB cable assembly

NS
21J0281 MFP Firmware Card Assembly
New
40X2585 40X4298 40X4680 40X4990 40X5341 (New)



Mono

NS
40X2596 Operator Panel cover
New
40X2596 (New)
$127.49



NS 40X2199 Scanner registration kit

NS

(supports attached InfoPrint 1664s)

NS
40X2172 Scanner CCD ribbon
New
40X2172 I (New)
$17.98



(supports attached InfoPrint 1764s)

NS
40X2597 Operator Panel Cover
New
40X2597 (New)
$13.93



(supports attached InfoPrint 1664s)

NS
40X2174 Operator Panel cover
New
40X2174 (New)
$45.96



(supports attached InfoPrint 1764s)
