IBM 4317 Parts
| 1-1 -2 -3 -4 -5 -6 |  |

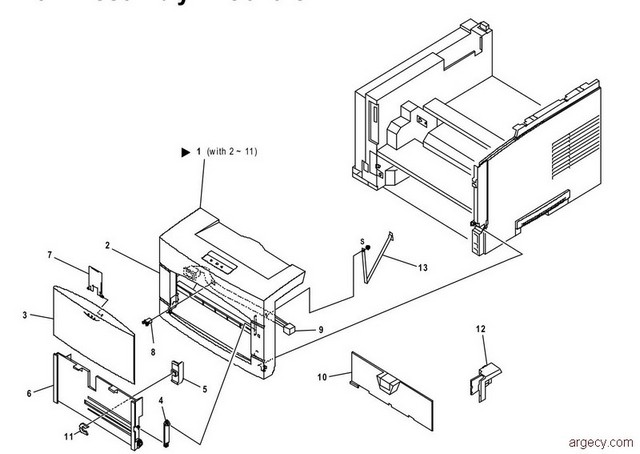

| 2-1 NP Cover assembly, front (with parts 2-2 ~ 2-11) -2 NP - - Cover, envelope feed -3 NP - - Cover, tray -4 63H2398 - - Stopper, tray -5 NP - - Guide holder -6 NP - - Tray, main -7 63H2399 - - Tray -8 63H2256 - - Holder, catch -9 NP Harness assembly, envelope, front (This harness assembly is not detachable from the front cover assembly.) -10 NP - - Cover, inner -11 NP - - E Ring -12 -13 63H2397 Stopper, cover |  |

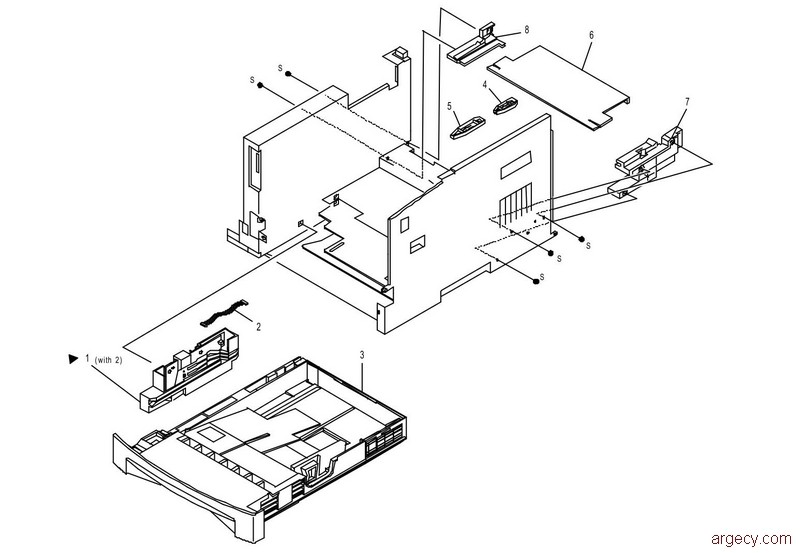

| 3-1 -2 NP - - Harness assembly, size -3 -4 NP Rail, cassette, front -5 NP Rail, cassette, rear -6 -7 NP Guide rail, right -8 NP Guide rail, left |  |

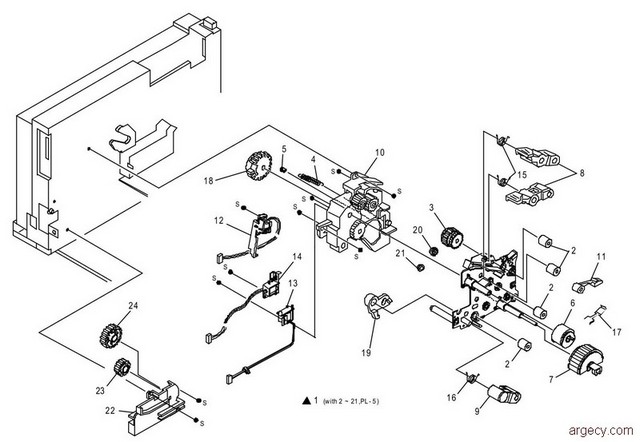

| 4-1 with parts 4-2 ~ 4-21 and parts 5-1 ~ 5-22) -2 -3 -4 NP - - Spring, lever -5 NP - - Lever -6 -7 -8 -9 -10 NP - - Supporter -11 -12 -13 -14 -15 NP 2 - - Spring, pinch roll -16 NP - - Spring, transfer roll -17 NP - - Spring, pinch, duplex -18 NP - - Gear, auxiliary tray -19 NP - - Link, release -20 NP - - Bushing, registration -21 NP - - Bushing, pinch registration -22 -23 -24 |  |

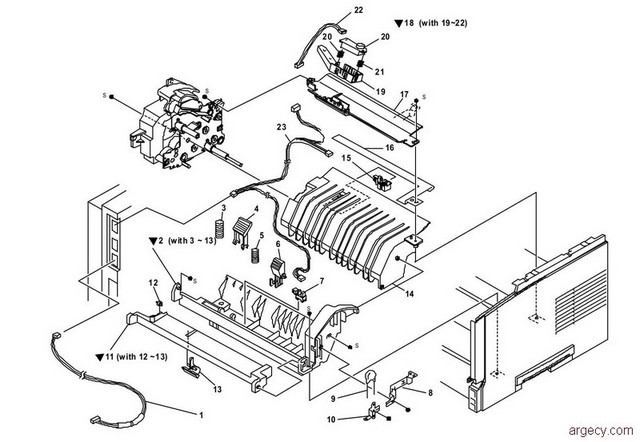

| 5-1 -2 NP Chute, auxiliary tray assembly (with parts 5-3 ~ 5-13) -3 NP - - Spring -4 -5 NP - - Spring, retard -6 63H2684 - - Holder, multi -7 63H2323 - - Sensor, no-paper -8 NP - - Spring, right -9 NP - - Varistor -10 NP - - Spring, left -11 63H2685 - - Tray, bottom assembly (with part 5-12 and 5-13) -12 NP - - - - Roll, cam -13 NP - - - - Actuator, auxiliary tray, no-paper -14 NP Chute, bottom -15 -16 NP Spring, earth, bottom -17 NP Chute, inlet -18 (with parts 5-19 ~ 5-22) -19 NP - - Holder, toner sensor -20 NP - - Toner sensor assembly -21 NP 2 - - Spring, toner sensor -22 63H2686 - - Harness assembly, toner sensor -23 |  |
| 6-1 -2 (This is a part in the fuser assembly CRU, part 7-1.) -3 NP - - Transport chute assembly (with part 6-4) -4 NP - - - - BTR chute |  |

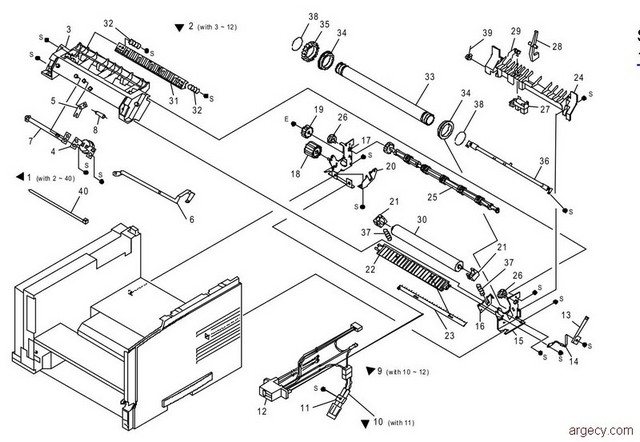

| 7-1 (This is a CRU.) -2 NP - - Cover, top assembly (with parts 7-3 ~ 7-12) -3 NP - - - - Cover, top -4 NP - - - - Thermostat -5 NP - - - - Plate, fuser -6 NP - - - - Harness, plate 1 -7 NP - - - - Harness, plate 2 -8 NP - - - - Fuse -9 NP - - - - Harness assembly, fuser (with parts 7-10 ~ 7-12) -10 NP - - - - - - Harness, exit (with part 7-11) -11 NP - - - - - - - - Sensor assembly, temperature -12 NP - - - - - - Connector, fuser plug -13 NP - - Spring assembly, earth -14 NP - - Ground diode assembly -15 NP - - Frame, right -16 NP - - Lever, pressure roll, right -17 NP - - Frame, left -18 NP - - Gear, drive, 15T -19 NP - - Gear, idle, exit,12T -20 NP - - Lever, pressure roll, left -21 NP 2 - - Bearing, pressure roll -22 NP - - Chute, inlet -23 NP - - Static eliminator -24 NP - - Chute, exit, low -25 NP - - Decurl roll -26 NP 2 - - Bearing, exit -27 NP - - Sensor assembly, photo exit -28 NP - - Actuator, exit -29 NP - - Spring, exit actuator -30 NP - - Pressure roll assembly -31 NP - - Chute, exit assembly -32 NP 2 - - Spring, exit -33 NP - - Heat roll -34 NP 21 - - Bearing, heat roll -35 NP - - Gear, heat roll -36 NP - - Heater, quartz -37 NP 2 - - Spring, pressure roll -38 NP - - Ring, roller -39 NP - - Spring, exit -40 NP - - Cable tie |  |

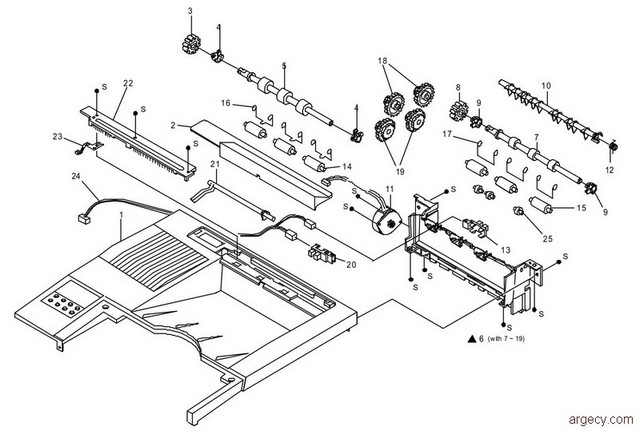

| NOTE: This entire assembly is part 1-5. 8-1 -2 -3 -4 -5 -6 (with parts 8-7~ 8-19) -7 -8 NP - - Gear, exit -9 NP 2 - - Bearing, exit -10 NP - - Exit gate -11 63H2292 - - Motor assembly, step, exit -12 NP - - Spring, direction -13 -14 -15 -16 NP 3 - - Spring, pinch, exit -17 NP 3 - - Spring, pinch, mid -18 NP 2 - - Gear, 26 -19 NP 2 - - Gear, 47W -20 -21 -22 NP Eliminator assembly -23 NP Spring, earth, exit -24 -25 NP 3 Roll |  |
| 9-1 NP Plate, ROS -2 NP EP cartridge, side guide assembly (with parts 9-3 and 9-4) -3 NP - - EP assembly, side guide -4 NP - - Spring -5 -6 NP - - EP assembly, top guide -7 NP 2 - - Roller -8 NP 2 - - Arm -9 NP 2 - - Spring -10 NP Duct, left -11 NP Duct, front -12 -13 63H2264 Drive Asm - Ibm 4317 (Np17) Fully refurbished with 90-day warranty 63H2264 Retired, no longer available: Contact for alternatives -14 -15 NP EP cartridge (This is a CRU.) |  |

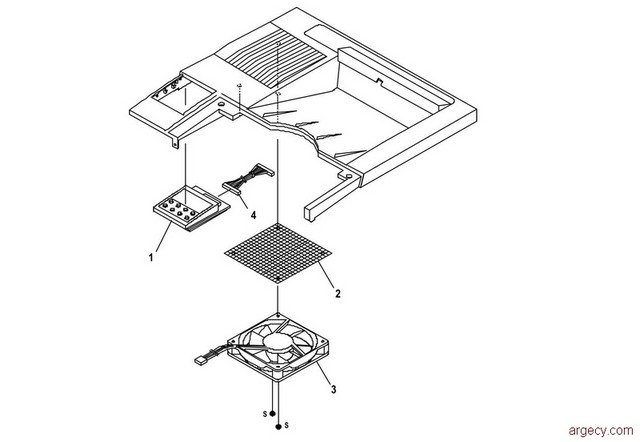

| 10-1 -2 63H2373 Filter, fan -3 -4 l |  |

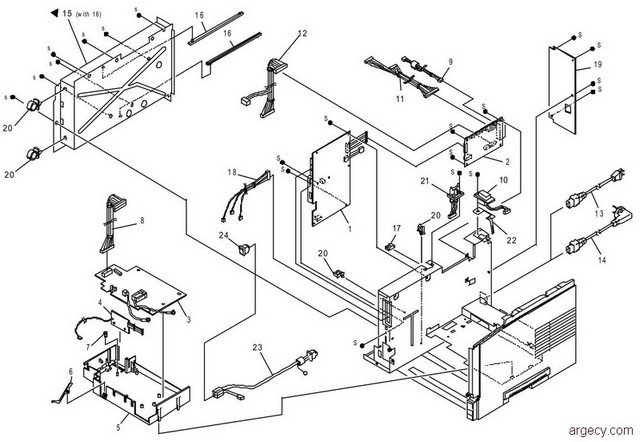

| 11-1 -2 -3 -4 -5 NP HVPS housing -6 63H2289 Actuator, no paper -7 NP Spring, earth -8 -9 -10 -11 -12 -13 -14 NP Power cord, EC -15 NP Chassis assembly, electrical box (with part 11-16) -16 NP 2 - - Guide rail -17 NP Bushing -18 -19 NP Panel, back -20 NP 4 Clamp -21 -22 NP Spring, earth, motor -23 -24 |  |

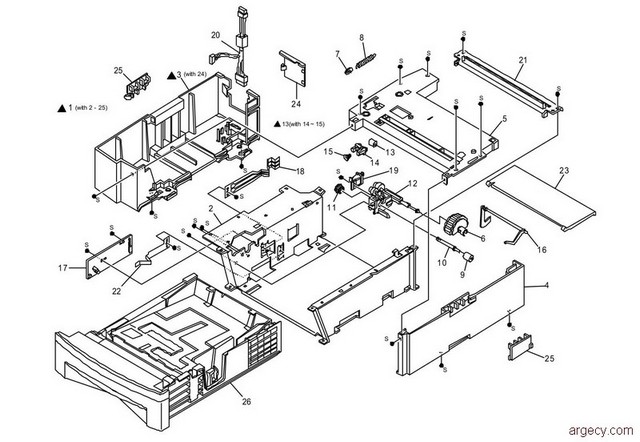

| 13-1 -2 NP - - Frame assembly, 500 -3 NP - - Cover assembly, left, 500 (with part 13-24) -4 NP - - Cover assembly, right, 500 -5 NP - - Chute, 500 -6 63H2246 - - Roll assembly, feed, 500 -7 NP - - Lever, clutch -8 NP - - Spring, feed, 500 -9 10 NP - - Shaft, turn, 500 -11 NP - - Gear, turn, 500 -12 NP - - Roll sub-assembly -13 (with parts 13-14 and 13-15) -14 NP - - - - Holder, pinch, 500 -15 NP - - - - Spring, pinch, 500 -16 -17 -18 63H2238 - - Spring, size, 500 -19 -20 -21 NP - - Plate, tie, 500 -22 NP - - Spring, cassette latch -23 NP - - Cover, rear, 500 -24 NP - - Cover, connector -25 -26 NS |  |

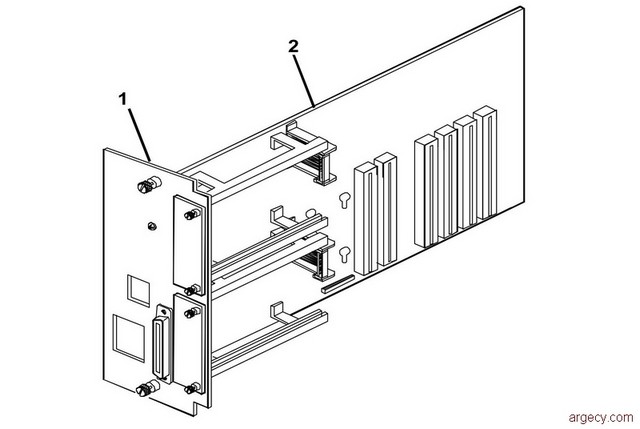

| 20-1 63H2417 Bezel assembly -2 63H2425 Controller PWB Assembly 4317 (Main Board) Fully refurbished with 90-day warranty 63H2425 $49.00 -NS (Only on early versions of the printer) |  |

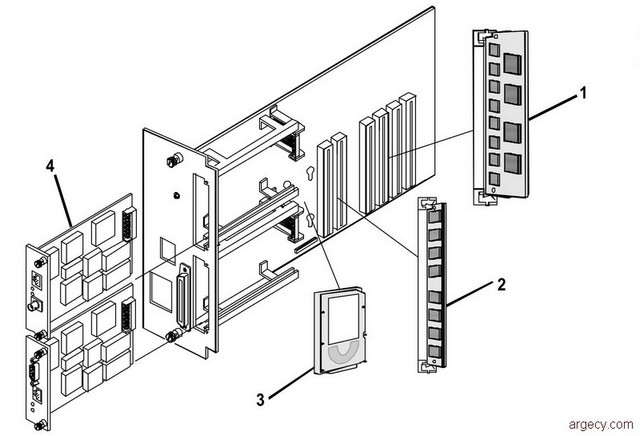

| 21-1 -1 -1 -1 -2 63H2461 2M DRAM feature -2 -2 -2 -2 -3 -4 63H2446 4312/4317/4320/4324/4332 Twinax SCS Interface Fully refurbished with 90-day warranty 63H2446 -4 -4 63H2142 4312, 4317, 4320, 4324, 4332 10BaseT Ethernet card Fully refurbished with 90-day warranty 63H2142 $95.00 -4 63H2141 Token Ring for NP series Fully refurbished with 90-day warranty 63H2141 Retired, no longer available: Contact for alternatives 63H2450 43Xx Token Ring Fully refurbished with 90-day warranty 63H2450 Retired, no longer available: Contact for alternatives -NS 22-NS 63H2248 Screw kit -NS 63H2403 Spring kit |  |
