IBM Infoprint 4247-L03 Parts






Please call for parts assistance

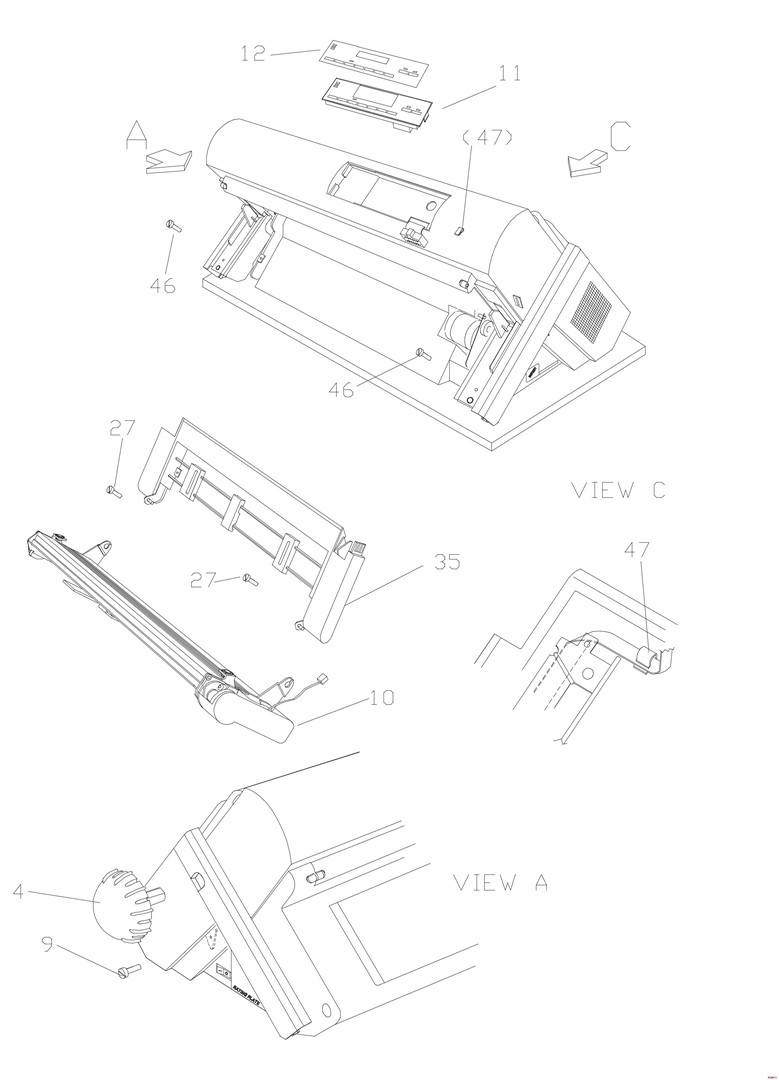

1
41U2399 Hand Grip
New
41U2399 (New)
$15.00



9 41U2328 Screw 3.9 x 16 (misc. Kit item 15)

10
Sale41U2430 Upper Tractor Assembly 4-pin
New
41U2430 44D8975 (New)
$285.00 $229.00



(opt)

11
41U2473 Operator Panel Assembly
New
41U2473 (New)
$199.00



12

27 08H7355 Screw M3 x 8 (misc. Kit item 7)

35
41U2472 Base Tractor Feed
Fully refurbished with 90-day warranty
41U2472
$309.00



41U2472 4247-L03 Main Tractor 4-Pin
New
41U2472 Beige (New)
$209.00


46 41U2328 Screw T.C.I.C. 3.9 x 25 (misc. Kit item 16)

47 41U2290 Clamp for Cable (misc. Kit item 13)
https://argecy.com/images/4247-L03-189_cr.jpg

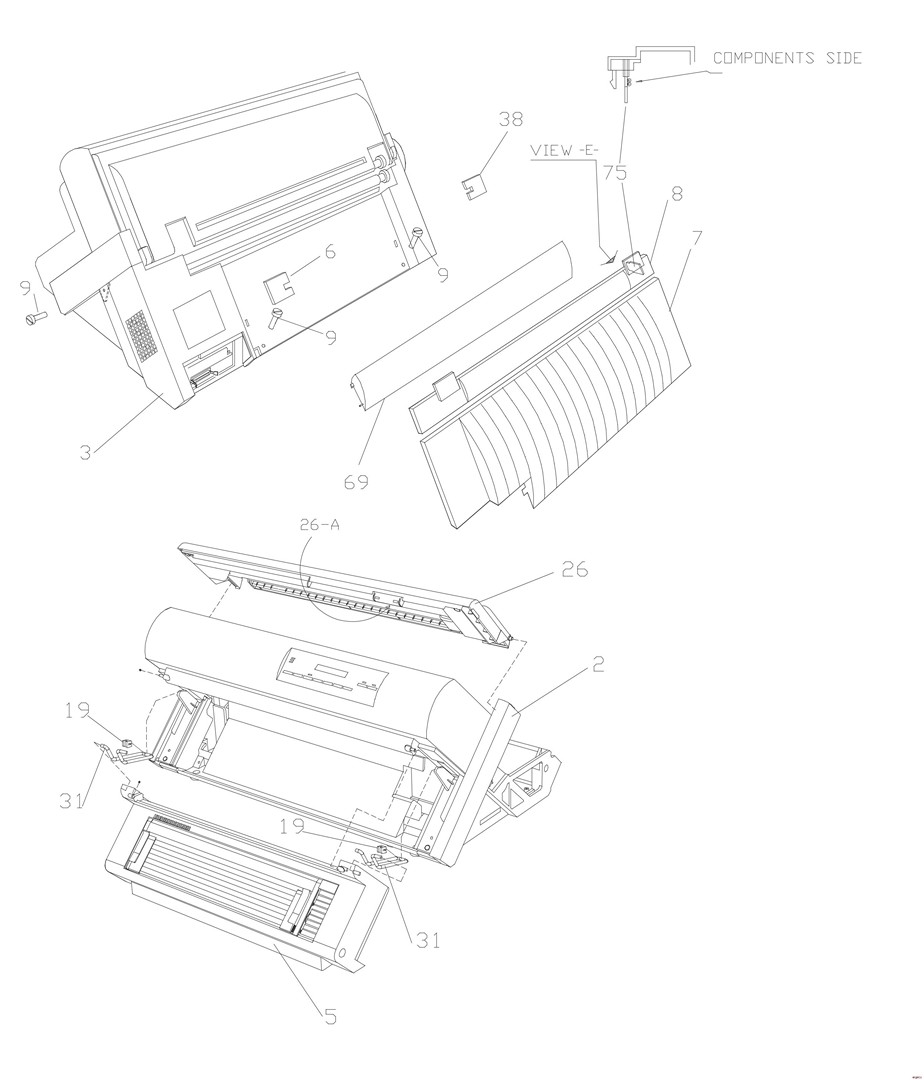

22
41U2462 Main Cover Group
New
41U2462 (New)
$295.00



3
41U2398 Rear Cover Group
New
41U2398 (New)
$199.00



7
41U2398 Rear Cover Group
New
41U2398 (New)
$199.00



5
41U2464 Front Cover Group
New
41U2464 (New)
$495.00



6

8

9 41U2328 Screw 3.9 x 13 (misc. Kit item 15)

19

26
41U2463 Top Cover Group
New
41U2463 (New)
$195.00



26-A
08H7370 Magnet Interlock
Fully refurbished with 90-day warranty
08H7370
$20.00



31

Printer Data Plate Part of item 3

38

69
41U2395 Rear Deflector
Fully refurbished with 90-day warranty
41U2395



75
41U2468 PWA GX2INT Board
New
41U2468 (New)
$43.00


https://argecy.com/images/4247-L03-191_cr.jpg

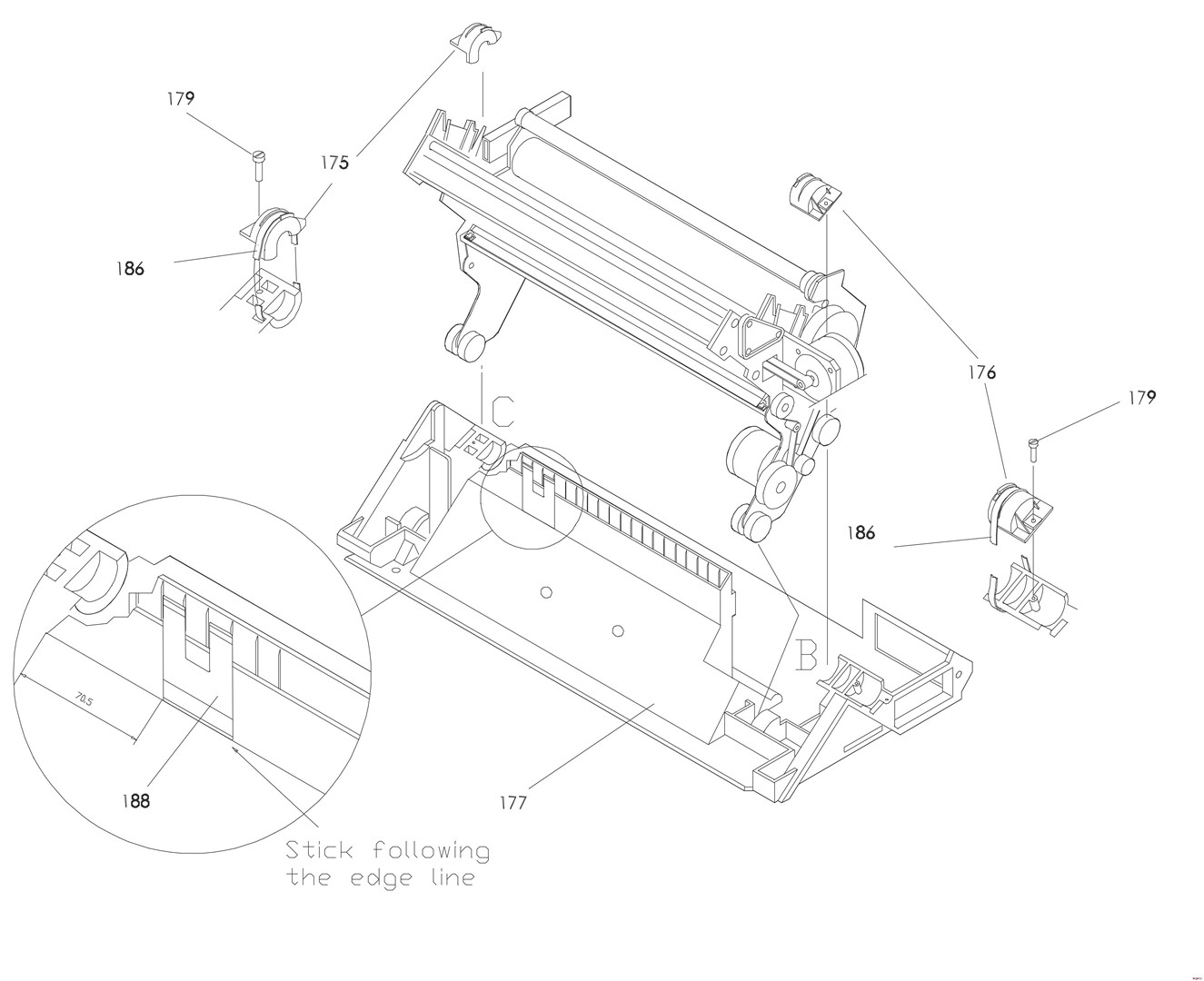

3175
08H7353 4247 Mechanical Block (Kit)
New
08H7353 (Set of two) (New)
$33.00



176
08H7353 4247 Mechanical Block (Kit)
New
08H7353 (Set of two) (New)
$33.00



177
41U2426 Base Assembly
Fully refurbished with 90-day warranty
41U2426
$95.00



179 41U2328 Screw 3.9x16 (misc. Kit item 15)

186 63H6062 Fastener Loop Self-Lock

188
63H6375 Fingers Mylar
New
63H6375 (New)
$38.00


https://argecy.com/images/4247-L03-193_cr.jpg

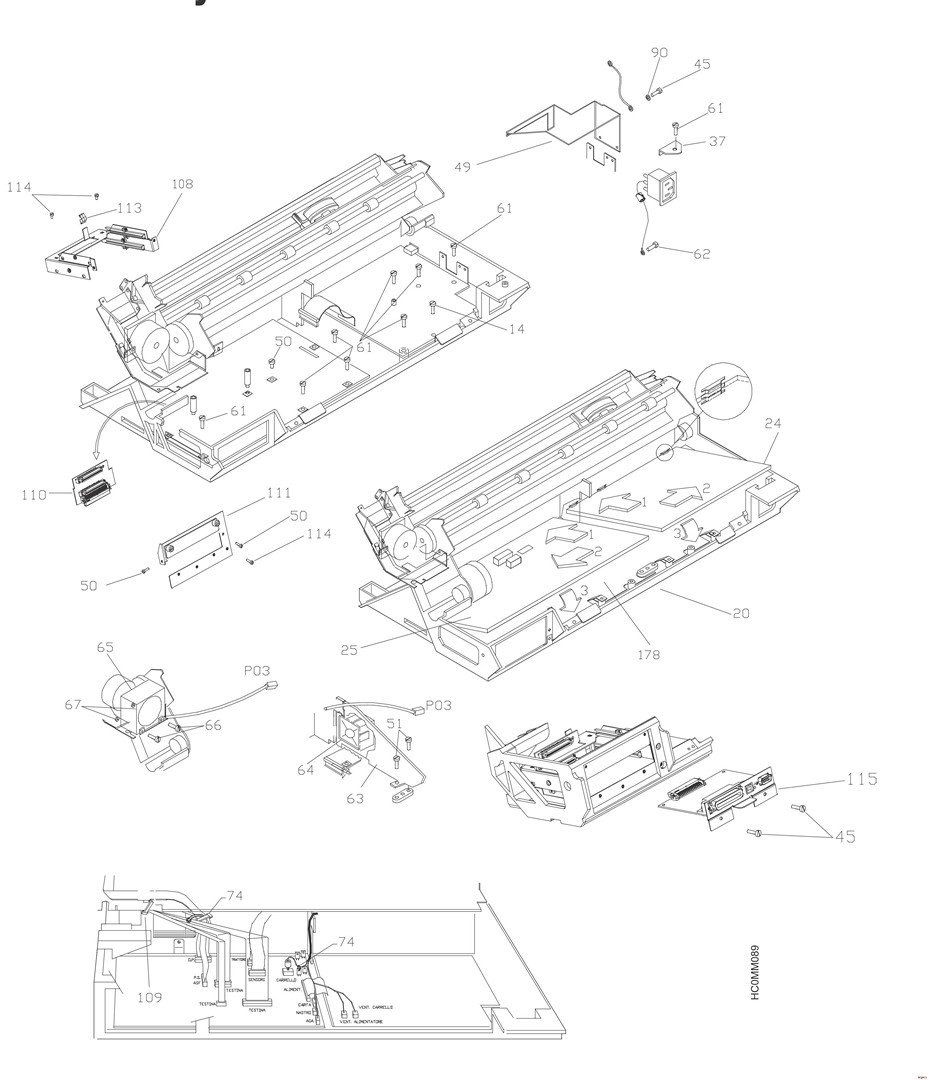

414 08H7355 Screw M3 x 8 (misc. Kit item 15)

20 NP Base Assembly

24
41U2471 Power Supply 120-240V
New
41U2471 (New)
$285.00



25
41U2474 Engine Board
Fully refurbished with 90-day warranty
41U2474
$599.00



37 08H7351 Inlet (misc. Kit item 11)

45 08H7355 Screw M3 x 4 (misc. Kit item 3)

49 NP P.S. Cover

50 08H7355 Screw M3x8 (misc. Kit item 5)

51 41U2328 Screw 2.9 x 9.5 (misc. Kit item 4)

61 41U2328 10 Screw 2.9 x 9.5 (misc. Kit item 11)

62 08H7355 Screw M4 x 6 (misc. Kit item 11)

63

08H7265 Fan Support
New
08H7265 (New)
$119.00



64

08H7258 Fan Assembly, Power Supply
New
08H7258 (New)
$95.00



08H7258 Fan Assembly, Power Supply
Fully refurbished with 90-day warranty
08H7258
$47.00



65

08H7252 Fan Assembly, Carriage Motor
New
08H7252 (New)
$47.00



08h7252 Fan Assembly
Fully refurbished with 90-day warranty
08h7252
$33.00



66 08H7355 Screw M3 x 30 (misc. Kit item 21)

67 41U2329 Nut M3 (misc. Kit item 17)

74 08H7264 Fastener Loop Self-Lock (50 per pack)

90 41U2329 Washer split D3.2 (misc. Kit item 25)

108 41U2609 Slot Assembly

109 08H7264 Fastener Loop Self-Lock (50 per pack)

110



111 NP Mask Plate

113 NP Finger Soft Grounding

114 08H7355 Screw M3x6 (misc. Kit item 13)

115
41U2227 SBCS Controller Parallel Serial USB 2.0
Fully refurbished with 90-day warranty
41U2227
$376.00



115

115
41U2236 DBCS Controller Parallel Serial USB 2.0
Fully refurbished with 90-day warranty
41U2236
$199.00



115
41U2237 DBCS Controller Parallel Ethernet 10/100
Fully refurbished with 90-day warranty
41U2237
$475.00



178
https://argecy.com/images/4247-L03-195_cr.jpg

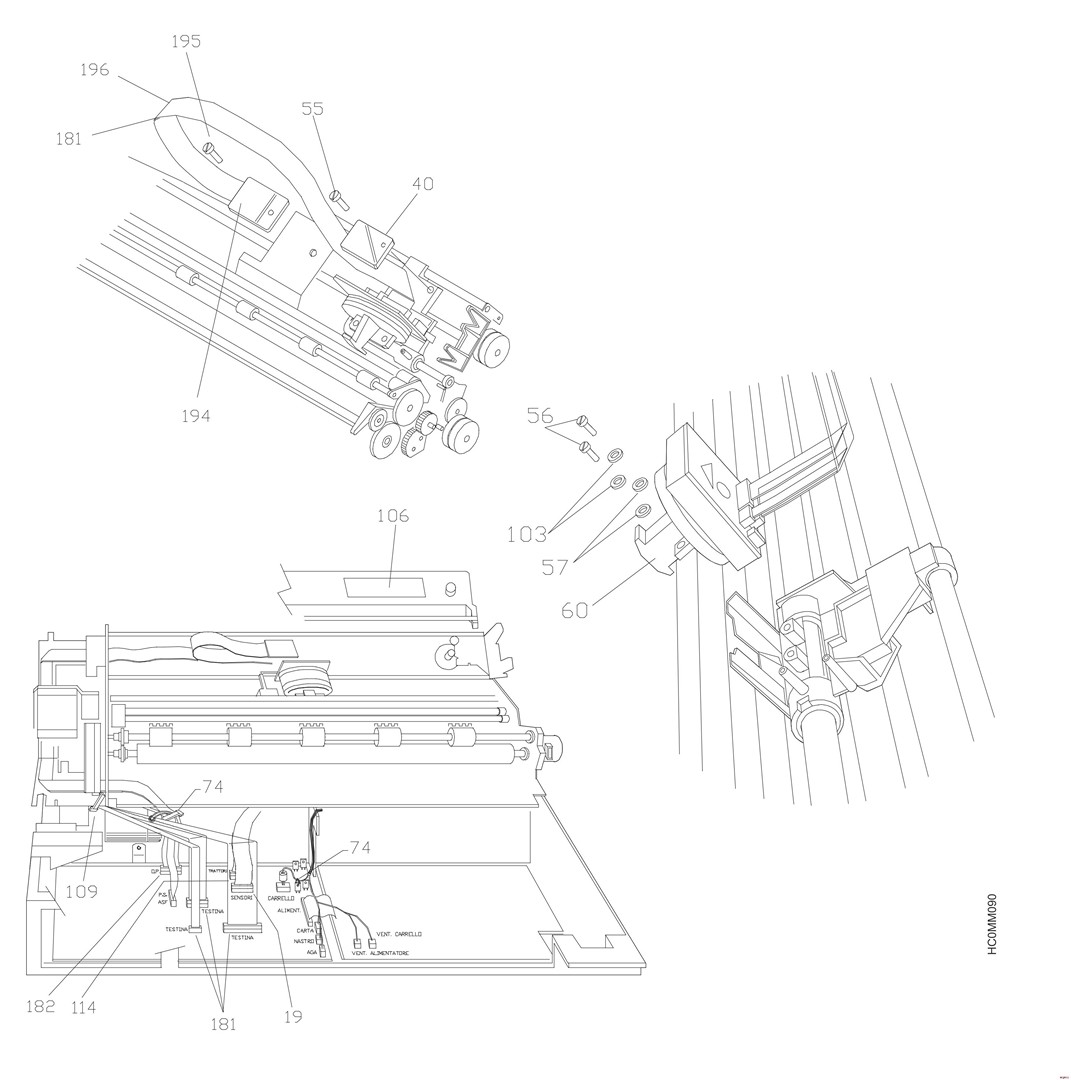

519
41U2465 Reflective Sensor
New
41U2465 (New)
$125.00



40 08H7253 P.H. Bracket

55 08H7355 Screw M4 x 8 (misc. Kit item 19)

56 08H7355 Screw M4 x 14 (misc. Kit item 2)

57 41U2329 Washer (misc. Kit item 8)

60
41U2470 Printhead ER24MR
New
41U2470 (New)
$399.00



74 08H7264 Fastener Loop Self Lock (50 per pack)

103 41U2329 Washer Internal Teeth (misc. Kit item 24)

109 08H7264 Fastener Loop Self Lock (50 per pack)

114
08H7248 Tractor Cable (Alternance)
New
08H7248 (New)
$119.00



08H7248 Cable Tractor Assembly
Fully refurbished with 90-day warranty
08H7248
$40.00



181
41U2466 P.H. Cable 24
New
41U2466 (New)
$47.00



41U2466 P.H. Cable 24
Fully refurbished with 90-day warranty
41U2466



182

08H7249 Operator Panel Cable
New
08H7249 (New)
$86.00



194 63H6349 Frame Bracket with M4x6 screw

195 08H7355 Screw M4x6 (Flat Head) (misc. Kit item 23)

196 41U2461 Protect. Mylar for PH Cable
https://argecy.com/images/4247-L03-197_cr.jpg

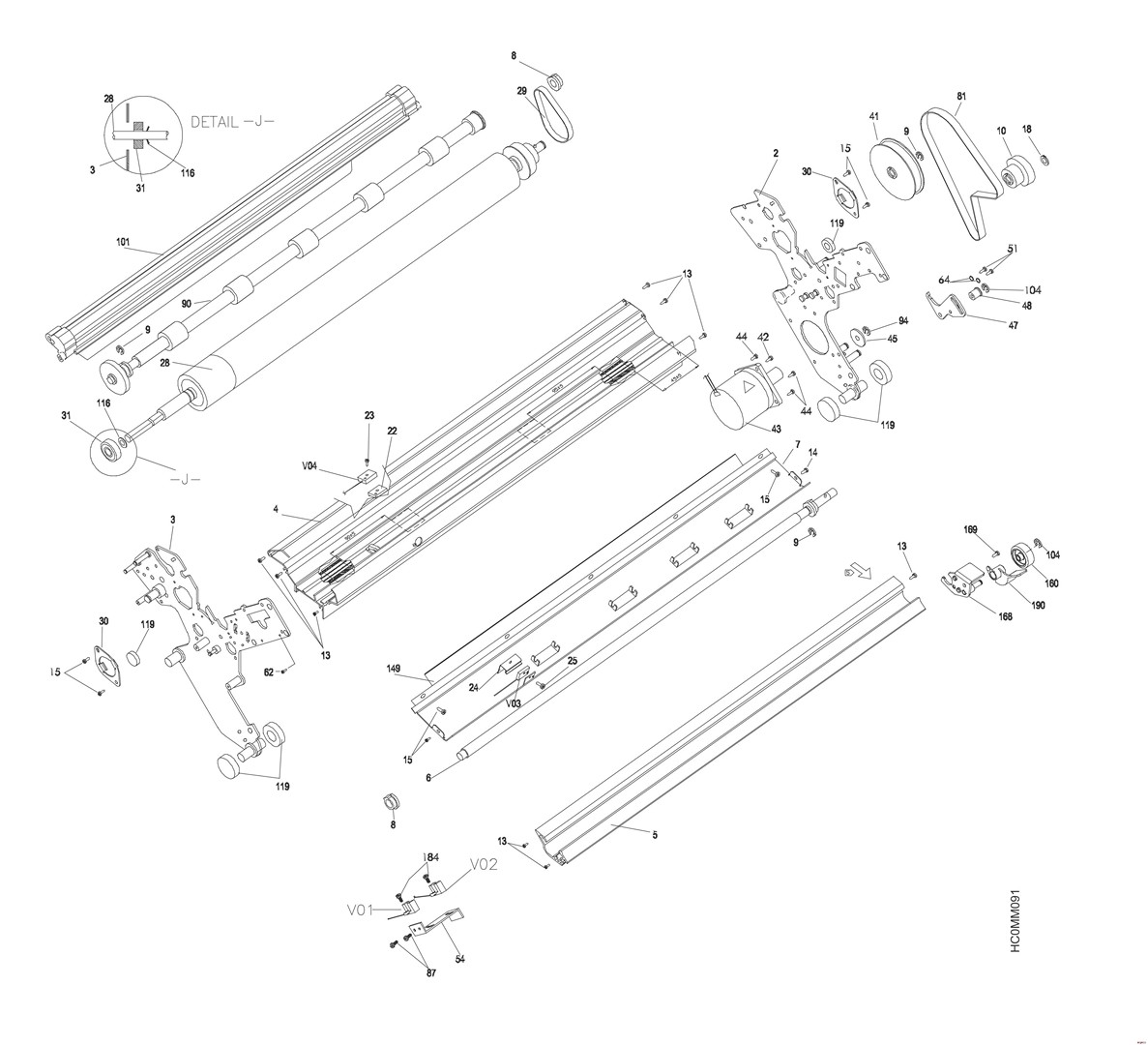

62 NP Right Frame

3 NP Left Frame

4 NP Base Frame

5 NP Guide Assembly

6
41U2392 Lower Feeder Assembly
New
41U2392 (New)
$74.00



7 41U2431 Support Spring

8 08H7351 Bush (misc. Kit item 7)

9 41U2329 Ring Benzing D.7 (misc. Kit item 6)

10
41U2393 Front Pulley
New
41U2393 (New)
$29.00



13 41U2328 9 Screw 3.5 x 13 (misc. Kit item 1)

14 08H7355 Screw M3 x 6 (misc. Kit item 1)

15 08H7355 Screw M3 x 4 (misc. Kit item 3)

18 41U2329 Ring Ret. D.8 (misc. Kit item 7)

22 08H7353 Spacer (misc. Kit item 3)

23 41U2328 Screw 2.2 x 9.5 (misc. Kit item 4)

24 41U2290 Sensor Plate (misc. Kit item 4)

25 08H7355 Screw M2 x 8 (misc. Kit item 4)

28
41U2330 Platen Assembly
New
41U2330 (New)
$119.00



29
08H7287 Platen Belt Toothed
New
08H7287 (New)
$39.00





30 41U2290 Bearing Retainer (misc. Kit item 5)

31 08H7351 Bearing (misc. Kit item 8)

41
08H7288 Pulley
New
08H7288 (New)
$51.00





42 08H7355 Screw M3 x 8 (misc. Kit item 7)

43
41U2469 Paper Motor Assembly
Fully refurbished with 90-day warranty
41U2469
$91.00



44 08H7355 Screw M3 x 10 (misc. Kit item 8)

45 08H7301 Idle Gear

47 08H7311 Paper Feed Belt Tension Lever

48 08H7302 Idle

51 08H7355 Screw M4 x 6 (misc. Kit item 9)

54 NP Home Sensors Support

62 41U2328 Screw 2.9x13 (misc. Kit item 7)

64 41U2329 Washer (misc. Kit item 8)

81
08h7307 Paper Belt Toothed
Fully refurbished with 90-day warranty
08h7307
$32.00



08H7307 Paper Belt Toothed
New
08H7307 (New)
$85.00



87 08H7355 Screw M3 x 6 (misc. Kit item 13)

90
08h7290 Upper Feeder Assembly
Fully refurbished with 90-day warranty
08h7290
$45.00



08H7290 Upper Feeder Assembly
New
08H7290 (New)
$129.00



94 41U2329 Ring Benzing D6 (misc. Kit item 5)

101

01P7165 Bail Assembly for 4247
Fully refurbished with 90-day warranty
01P7165
$75.00



104 41U2329 Ring Benzing D4 (misc. Kit item 3)

116 41U2329 Thrust Washer (misc. Kit item 11)

119 41U2290 Vibrodamp (misc. Kit item 1)

149
24H7729 Lower Mylar Assembly
New
24H7729 (New)
$69.00



24H7729 Lower Mylar Assembly
Fully refurbished with 90-day warranty
24H7729
$39.00



160 41U2611 Dual Tractor Gear (misc. Kit item 1)

168 41U2611 Bracket Pulley Pivot (misc. Kit item 2)

169 41U2328 Screw 3.5 x 19 (misc. Kit item 17)

184 08H7355 Screw M3x6 (misc. Kit item 13)

190 41U2611 Gear Protection (misc. Kit item 3)

01
41U2271 Opto Interrupter
New
41U2271 (New)
$132.00



02
41U2271 Opto Interrupter
New
41U2271 (New)
$132.00



03
41U2465 Reflective Sensor
New
41U2465 (New)
$125.00



04
41U2465 Reflective Sensor
New
41U2465 (New)
$125.00


https://argecy.com/images/4247-L03-199_cr.jpg

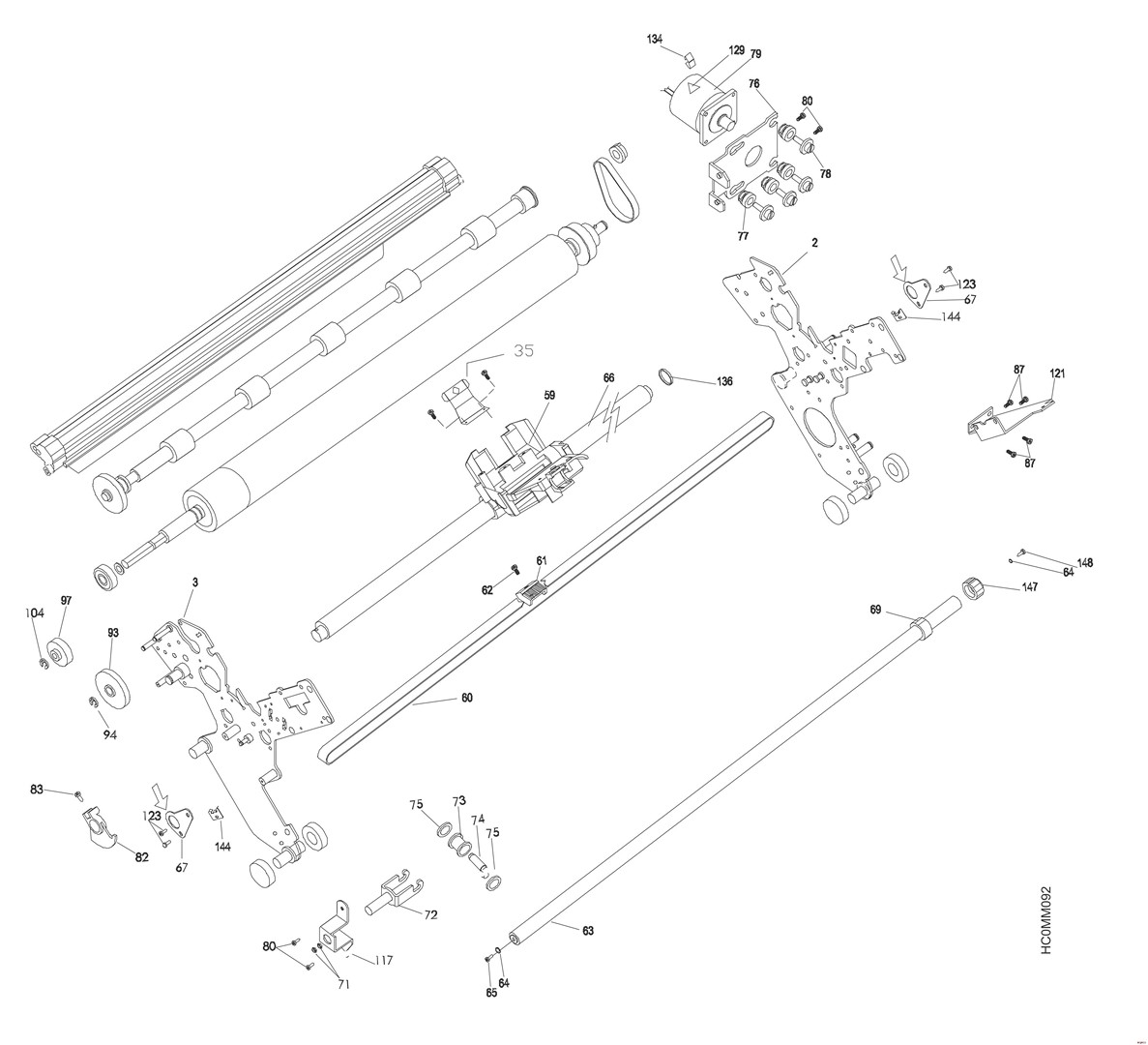

72 NP Right Frame

3 NP Left Frame

35

75P0548 Cover, Hammerbank (Ribbon Mask)
Fully refurbished with 90-day warranty
75P0548
$24.00



59
17R7487 Carriage Assembly
New
17R7487 (New)
$145.00



60
08h7304 Carriage Belt
New
08h7304 (New)
$38.00



08H7304 Carriage Belt Toothed
New
08H7304 (New)
$47.00



61 08H7353 Belt Bracket (misc. Kit item 5)

62 41U2328 Screw 2.9 x 13 (misc. Kit item 7)

63
63H6274 Shaft carriage support
Fully refurbished with 90-day warranty
63H6274
$46.00



63H6274 Rear Bar
New
63H6274 (New)
$94.00



64 41U2329 Washer (misc. Kit item 8)

65 08H7355 Screw M4 x 8 (misc. Kit item 10)

66
63H6063 Carriage Shaft
New
63H6063 (New)
$75.00



63h6063 Carriage Shaft
Fully refurbished with 90-day warranty
63h6063
$25.00



67 41U2290 Shaft Retainer (misc. Kit item 7)

69 08H7351 Carriage Bush (misc. Kit item 13)

71 75P0543 Nut Hexagonal M4 (Kit Pulley Bracket Assembly)

72 75P0543 Pulley Bracket Assembly (Kit Pulley Bracket Assembly)

73 75P0544 Pulley Assembly (Kit Pulley Assembly)

74 75P0544 Pivot (Kit Pulley Assembly)

76 NP Carriage Motor Support

77 41U2290 Motor Damp (misc. Kit item 3)

78 41U2290 Stud (misc. Kit item 8)

79
41U2318 Carriage Motor Assembly L03
New
41U2318 (New)
$79.00



80 08H7355 Screw M4 x 6 (misc. Kit item 11)

82
08H7308 AFTA Sector
New
08H7308 (New)
$59.00



08H7308 Gear AFTA sector Assembly
Fully refurbished with 90-day warranty
08H7308
$40.00



83 08H7355 AGA (AFTA) stud (misc. Kit item 22)

87 08H7355 Screw M3 x 6 (misc. Kit item 13)

93 08H7309 Double Gear

94 41U2329 Ring.D6 (misc. Kit item 5)

97 08H7310 Movable Gear

104 41U2329 Ring Benzing D4 (misc. Kit item 3)

117 75P0543 Support Bracket (Kit Pulley Bracket Assembly)

121 41U2290 Clamp 79 (misc. Kit item 14)

123 08H7355 Screw M3 x 4 (misc. Kit item 16)

134 NP Finger Soft Grounding

136 08H7353 O-Ring (misc. Kit item 11)

144 08H7351 Wear Res. Spring (misc. Kit item 12)

147 63H6274 Eccentric bushing (Rear Bar Kit)

148 63H6274 Screw M4 x 12 (Rear Bar Kit)
https://argecy.com/images/4247-L03-202_cr.jpg

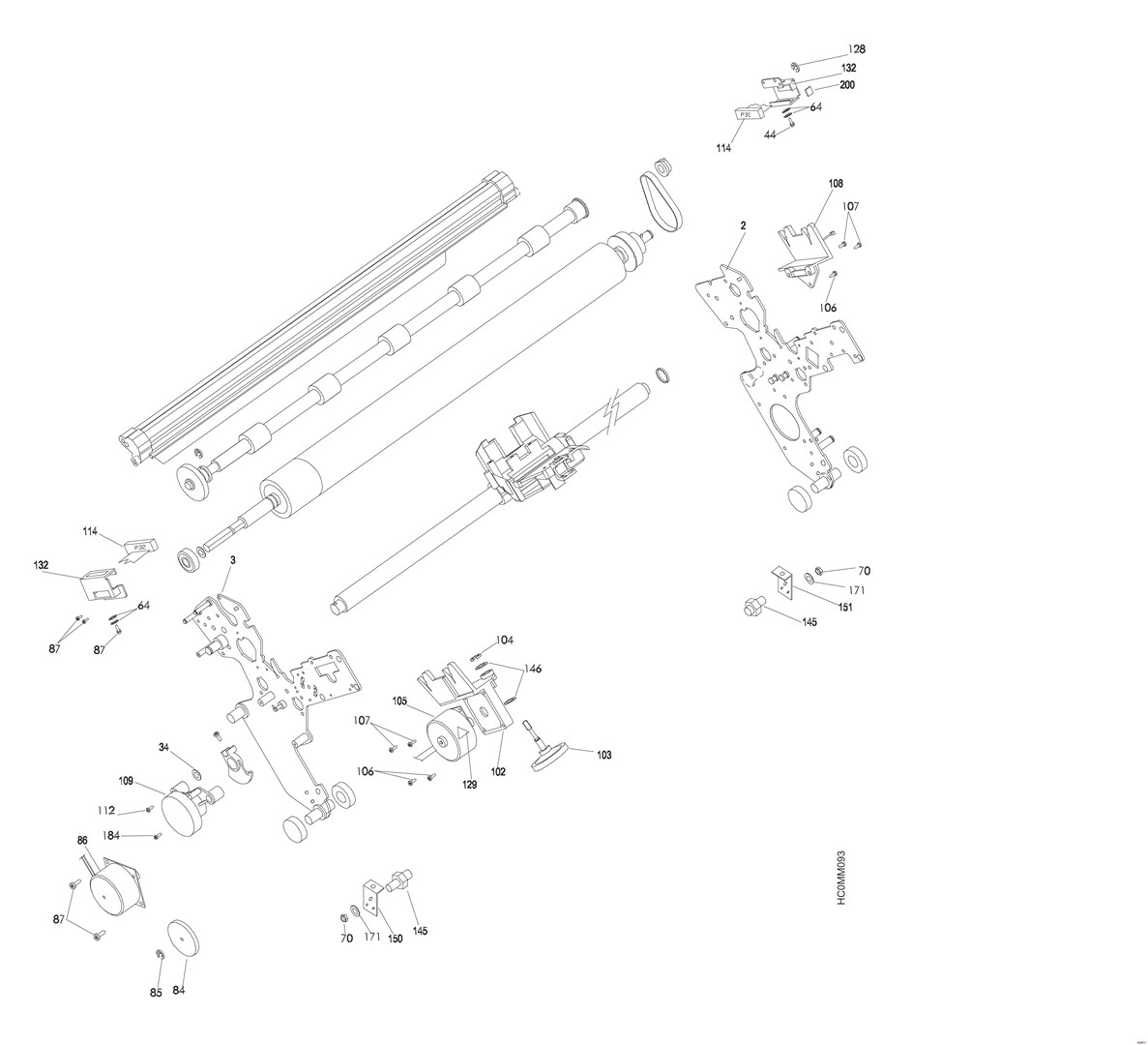

82 NP Right Frame

3 NP Left Frame

34 41U2290 Spacer (misc. Kit item 15)

44 08H7355 Screw M3 x 10 (misc. Kit item 8)

64 41U2329 Washer (misc. Kit item 8)

70 41U2329 Nut Hexagonal M5 (misc. Kit item 18)

84

85 41U2329 Ring D.2.3 (misc. Kit item 1)

86

08h7320 AGA (AFTA) Motor Assembly with cable
Fully refurbished with 90-day warranty
08h7320
$39.00



87 08H7355 Screw M3 x 6 (misc. Kit item 13)

102 02N7006 Left Cartridge Support Assembly (Kit Left Cart. Sup./Rib.Dr. Assembly)

103 02N7006 Pivot Assembly (Kit Left Cart.
Sup./Rib.Dr. Assembly)

104 02N7006 Ring Benzing D4 (Kit Left Cart.
Sup./Rib.Dr. Assembly)

105
08H7324 Ribbon Motor Assembly
New
08H7324 (New)
$45.00



08h7324 Ribbon Motor Assembly
Fully refurbished with 90-day warranty
08h7324
$25.00



106 08H7355 Screw M3 x 14 (misc. Kit item 14)

107 41U2328 Screw 2.9 x 19 (misc. Kit item 8)

108 08H7325 Right Cartridge Support

109 75P0542 AGA (AFTA) Indicator Group

112 08H7355 Screw M3 x 8 (misc. Kit item 15)

114
08H7248 Tractor Cable (Alternance)
New
08H7248 (New)
$119.00



08H7248 Cable Tractor Assembly
Fully refurbished with 90-day warranty
08H7248
$40.00



128 41U2329 Washer D 3 (misc. Kit item 15)

132



145 41U2329 Pivot Mech (misc. Kit item 26)

146 02N7006 Washer 60D (Kit Left Cart. Sup./Rib.Dr. Assembly)

150 NP Tractor Support Bracket Right

151 NP Tractor Support Bracket Left

171 41U2329 Washer Lock D5.3 (misc. Kit item 27)

184 08H7355 Screw M3 x 6 (misc. Kit item 17)

200 Foam Strip (Part of 08H7248 item 8-114)
https://argecy.com/images/4247-L03-205_cr.jpg
