IBM Infoprint 1930 & 1940 Parts (4569, 4570)






Please call for parts assistance

IBM 4569-N01 InfoPrint 1930 MFP
New
4569-N01 39V3638 (New)

Retired, no longer available: Contact for alternatives


IBM 4570-HN1 InfoPrint 1940 MFP Printer
Fully refurbished with 90-day warranty
4570-HN1 39V3668
$799.00


IBM 4570-N11 InfoPrint 1940 MFP Printer
Fully refurbished with 90-day warranty
4570-N11 39V3667
$699.00

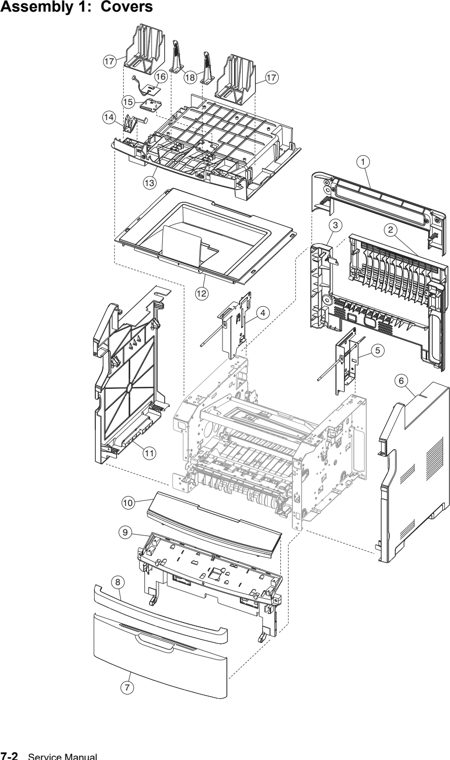

1-1 40X5827 Mid rear cover

2
40X5839 Rear door
Fully refurbished with 90-day warranty
40X5839
$13.47



3
40X5838 Rear Cover
Fully refurbished with 90-day warranty
40X5838
$23.74



4
40X5820 Rear left frame assembly
Fully refurbished with 90-day warranty
40X5820
$16.44



5
40X5821 Rear right frame assembly
Fully refurbished with 90-day warranty
40X5821
$15.58



6
40X5822 Right side cover
Fully refurbished with 90-day warranty
40X5822
$25.86



7
40X5379 Front door cover
Fully refurbished with 90-day warranty
40X5379
$15.07



8 40X5359 Nameplate cover

9
40X5806 Lower AIO access assembly
New
40X5806 (New)
$19.45



40X5806 Lower AIO access assembly
Fully refurbished with 90-day warranty
40X5806
$14.72



10
40X5778 Front access door cover
New
40X5778 (New)
$12.60





11
40X5823 Left side cover
Fully refurbished with 90-day warranty
40X5823
$26.38



12
40X5614 Top cover assembly
New
40X5614 (New)
$20.04



13
40X5811 Tub cover assembly
New
40X5811 (New)
$23.68



14 40X5809 USB cable mount bracket

15 40X5834 Output bin LED lens

16
40X5835 Output bin LED
New
40X5835 F5JJ9 (New)
$15.72



17 40X5815 Op panel support

18 40X5814 Display rotation support

NS
40X5381 Primary Tray
New
40X5381 (New)
$44.00


https://www.argecy.com/images/X46x-02.jpg

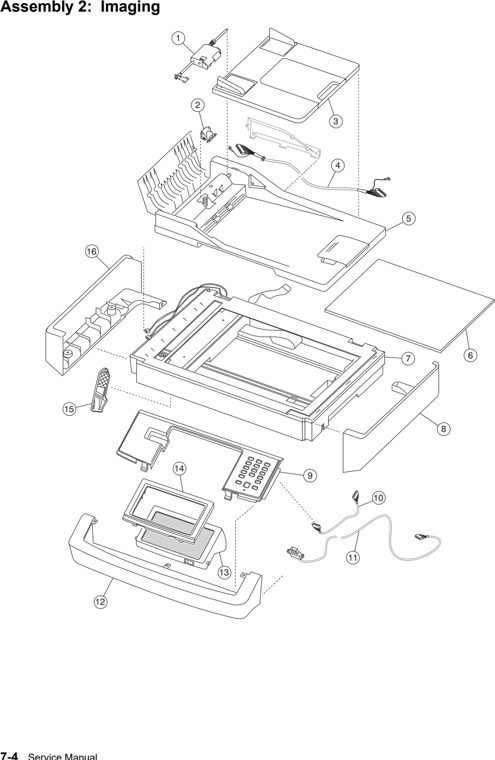

1
40X5471 ADF Separator Roll
New
40X5471 40X7545 (New)
$35.00



2
40X5472 ADF Separator Pad
New
40X5472 40x8419 (New)
$45.00



3
40X5470 ADF Input Tray
Fully refurbished with 90-day warranty
40X5470
$51.71



40X5470 ADF Input Tray
New
40X5470 (New)
$115.16



4 40X5540 ADF cable

5
40X5824 Duplex ADF unit
New
40X5824 (New)
$225.00



6
40X5804 Flatbed Cushion - Legal
New
40X5804 0TJ75 (New)
$29.88



7
40X5825 Flatbed module
New
40X5825 (New)

Retired, no longer available: Contact for alternatives



40X5825 Flatbed module
Fully refurbished with 90-day warranty
40X5825
$202.03



8 40X5818 Right scanner cover

9

10

11 40X5831 Operator panel USB cable

12 40X5826 Scanner front cover

13
40X5842 LVPS/HVPS card assembly 110 V
New
40X5842 (New)

Retired, no longer available: Contact for alternatives



14 40X0399 Op panel display bezel

14 40X0400 Op panel display bezel

14 40X0401 Op panel display bezel

15 40X5813 Kickstand support

16 40X5819 Left scanner cover

NS


https://www.argecy.com/images/X46x-04.jpg

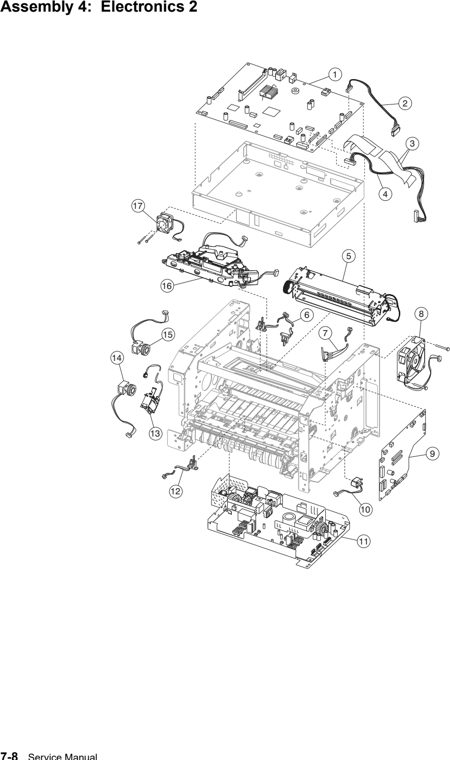

4-1


40X5829 Controller Board
New
40X5829 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$284.71







2 40X5816 LSU hsync extension cable

3 40X5832 Stairway cable

4 40X5833 Controller board cable

5

40X5365 Duplex and media sensor assembly
Fully refurbished with 90-day warranty
40X5365



7

8 40X5392 Cooling fan (screws included)

9
40X5830 Engine board
New
40X5830 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$64.71



10
40X5385 Toner low sensor
New
40X5385 (New)
$11.07



11
40X5842 LVPS/HVPS card assembly 110 V
New
40X5842 (New)

Retired, no longer available: Contact for alternatives



40X5842 LVPS/HVPS card assembly 110 V
New
40X5842 Advanced Exchange (New)

Retired, no longer available: Contact for alternatives



12
40X5366 Manual input sensor assembly
New
40X5366 (New)
$11.58





13
40X5369 Manual feed solenoid
New
40X5369 (New)
$13.72



40X5369 Manual feed solenoid
Fully refurbished with 90-day warranty
40X5369
$10.86



14
40X5371 MPF feed clutch
New
40X5371 (New)
$15.98



40X5371 MPF feed clutch
Fully refurbished with 90-day warranty
40X5371



15 40X1476 Lower card reader cover

16
40X5370 Media feed (ACM) clutch
New
40X5370 (New)
$14.74



17 40X1478 Upper card reader cover

18 40X1477 Card reader light pipe

19
40X5387 LSU (Printhead)
New
40X5387 34S4095 (New)
$129.72



20

20

20

21 40X1475 Card reader cable

22
40X5805 Controller Board Fan
New
40X5805 8XG3Y (New)
$41.71



40X5805 Controller Board Fan
Fully refurbished with 90-day warranty
40X5805
$29.71



NS 40X1479 Screw kit (for card reader)

NS 40X5817 LSU laser diode cable
https://www.argecy.com/images/X46x-08.jpg

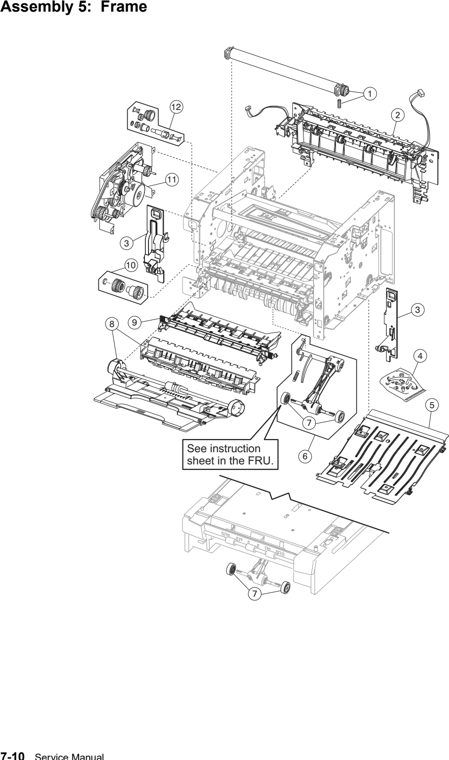

5-1


40X5364 Transfer Roll.
New
40X5364 40X8393 (New)
$24.99



2

3 40X5397 Front mounts

5
40X5380 Complete Duplex Assembly
New
40X5380 (New)
$34.12



6
40X5453 Media (ACM) drive assembly
New
40X5453 (New)
$44.79



7
40X5451 Paper Feed, ACM Tires
New
40X5451 (New)
$14.18



7
40X5440 Tray 2 paper feed tires
New
40X5440 (New)
$22.00



8
40X5358 MPF Tray Assembly
New
40X5358 (New)
$54.00



9
40X5383 Upper front frame assembly
New
40X5383 (New)
$15.72



40X5383 Upper front frame assembly
Fully refurbished with 90-day warranty
40X5383
$12.72



10
40X5368 Manual feed clutch CBM
New
40X5368 (New)
$13.41



40X5368 Manual feed clutch CBM
Fully refurbished with 90-day warranty
40X5368



11

12
40X5363 Duplex gear drive CBM
New
40X5363 WVYVK (New)
$24.65



40X5363 Duplex gear drive CBM
Fully refurbished with 90-day warranty
40X5363
$18.66



NS

Fuser (40X5344, 40X5345, or 40X2802)
Exit guide (40X5372)
Tray 1 ACM feed tires (40X5451)
Transfer roll CBM (40X5364)

NS 7377732 Field relocation package assembly
https://www.argecy.com/images/X46x-10.jpg
