IBM Infoprint 1824 Parts (4985)






Please call for parts assistance

Looking for whole machines? Click here

1-1

40X5418 Top Cover Assembly
Fully refurbished with 90-day warranty
40X5418
$34.71



2 Dust Cover

3
40X5416 Right cover assembly
Fully refurbished with 90-day warranty
40X5416
$13.81



40X5416 Right cover assembly
New
40X5416 (New)
$29.28



4
40X5419 250-sheet tray assembly
New
40X5419 (New)
$44.71



40X5419 250-sheet tray assembly
Fully refurbished with 90-day warranty
40X5419
$34.71



40X5168 Pick Tire
New
40X5168 (New)
$11.57



6

7



7

40X5436 Operator panel (DBCS) and display assembly
Fully refurbished with 90-day warranty
40X5436
$43.87



8 40X5443 InfoPrint Solutions Logo Plate

8

9
40X5417 Left cover assembly
New
40X5417 (New)
$24.08



40X5417 Left cover assembly
Fully refurbished with 90-day warranty
40X5417
$24.57

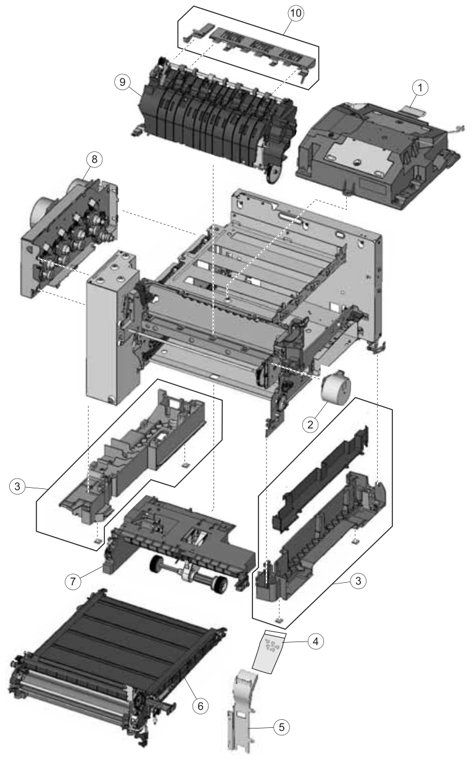

2-1
40X5411 Printhead
New
40X5411 (New)
$119.71



40X5411 Printhead
Fully refurbished with 90-day warranty
40X5411
$59.71



2
40X5415 Fuser drive motor assembly
New
40X5415 (New)
$14.47





40X5422 Lower left frame and lower right frame with cable cover
Fully refurbished with 90-day warranty
40X5422
$19.36



4 40X5424 Screw packet, miscellaneous screws
- TAPTITE M3 L6 PANHD(4)
- Tray Bias (2)
- Fuser Latch (2)
- ITU Front Hold Down (1)
- Front Cover Latch Spring (2)
- M3 x 6 Pan Head (2)
- M3 x 6 Shoulder (1)
- M3.5 X 5 Flat Head Plastite (1)
- METAL ROLN M3.5 8L (2)
- PLAST ROLN 2.9 8L (2)
- PLAST ROLN 3.5 6L (4)

5
Sale40X5403 Image Transfer Unit (ITU) Assembly
New
40X5403 40X7610 (New)
$318.00 $259.00



6

7

40X5412 Main drive gear assembly with motors
Fully refurbished with 90-day warranty
40X5412
$35.46



8
40x5437 Fuser Assembly C540 C543 C544 C546
New
40X5437 40X5406 40X7562 (New)
$148.72



9

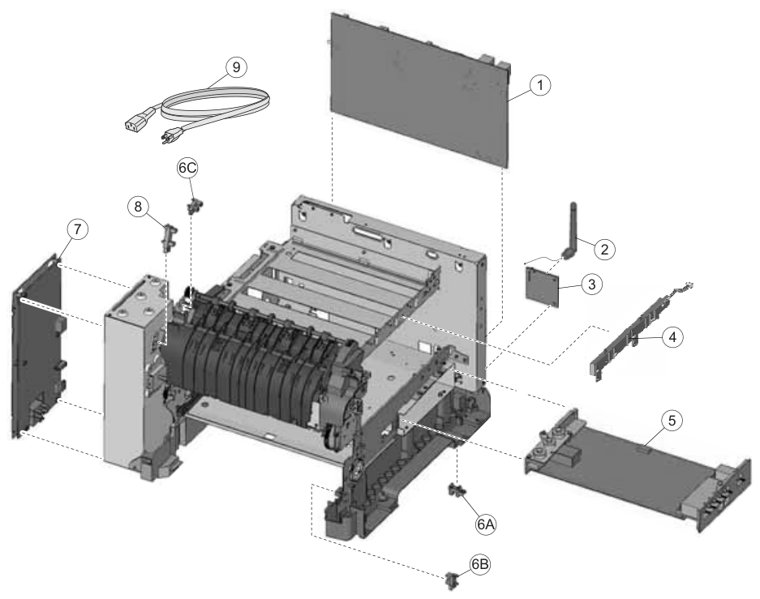

3-1
40X5427 L Controller Board
New
40X5427 L (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED
$236.78



2 40X5319 Antenna for wireless card-Wireless only

3

4
40X5404 Toner meter cycle card assembly
Fully refurbished with 90-day warranty
40X5404
$22.50





5
40X5405 High-Voltage Power Supply HVPS
New
40X5405 40x8695 (New)
$119.71



40X5405 High-voltage power supply HVPS
Fully refurbished with 90-day warranty
40X5405 40X8395
$79.71



6

A Tray present
B Duplex
C Exit/Bin full/narrow media sensor

7
40X5409 Low-Voltage Power Supply (Universal Power Supply)
New
40X5409 (New)

Retired, no longer available: Contact for alternatives



40X5409 Low-voltage power supply (universal power supply)
New
40X5409 Advanced Exchange (New)

Retired, no longer available: Contact for alternatives



40X5409 Low-Voltage Power Supply (Universal Power Supply)
Fully refurbished with 90-day warranty
40X5409
$115.66



8
40X5413 Fuser exit sensor
New
40X5413 (New)
$11.00



40X5413 Fuser exit sensor
Fully refurbished with 90-day warranty
40X5413



9

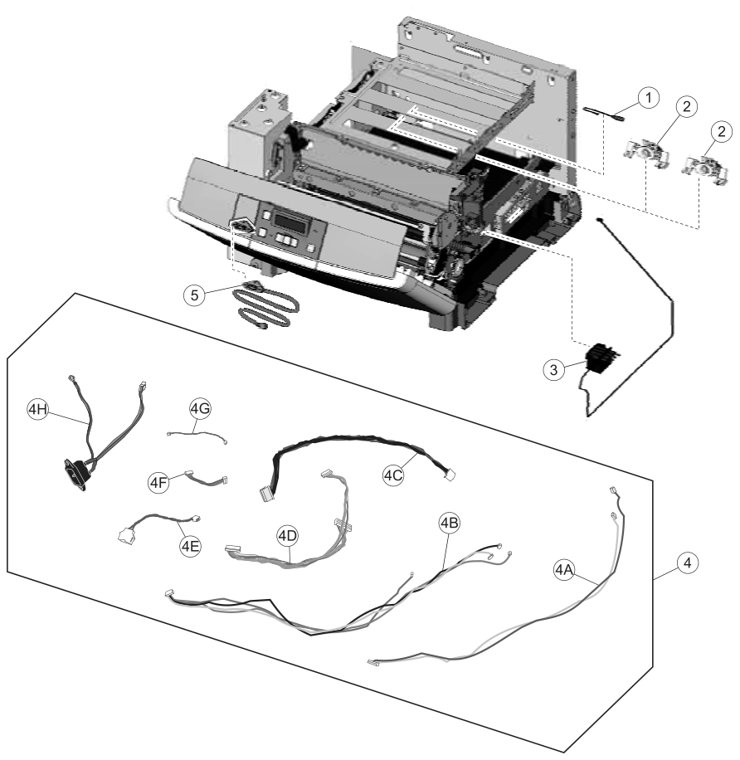

4-1




2

40X5414 Toner patch sensors left or right (one in package)
Fully refurbished with 90-day warranty
40X5414
$14.15



3

4
40X5423 Cable Packet
New
40X5423 (New)
$42.10



A AC power in
B Low-voltage power supply
C High-voltage power supply
D Fuser / S1
E CYM / K motors
F Option Tray
G Fuser exit/narrow media/bin full
H Wire tie-1.0mm
I Tray present cable

5

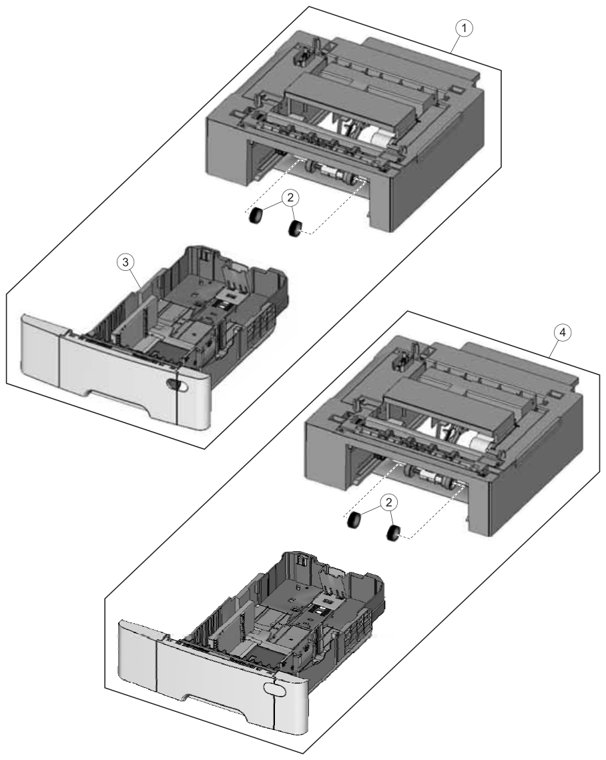

5-1
40X5434 550-Sheet Duo Drawer with 100-Sheet MPF
Fully refurbished with 90-day warranty
40X5434 40x8341
$109.71



40X5434 550-Sheet Duo Drawer with 100-Sheet MPF
New
40X5434 40X8341 (New)
$189.00



2
40X5168 Pick Tire
New
40X5168 (New)
$11.57



3

40X5435 Tray only for 550-Sheet Duo Drawer 100-Sheet MPF tray assembly C54x X543 X544
Fully refurbished with 90-day warranty
40X5435 40X2285
$108.02
