IBM Infoprint 1754 & 1764 Parts (4936 & 4937)
Please call for parts assistance

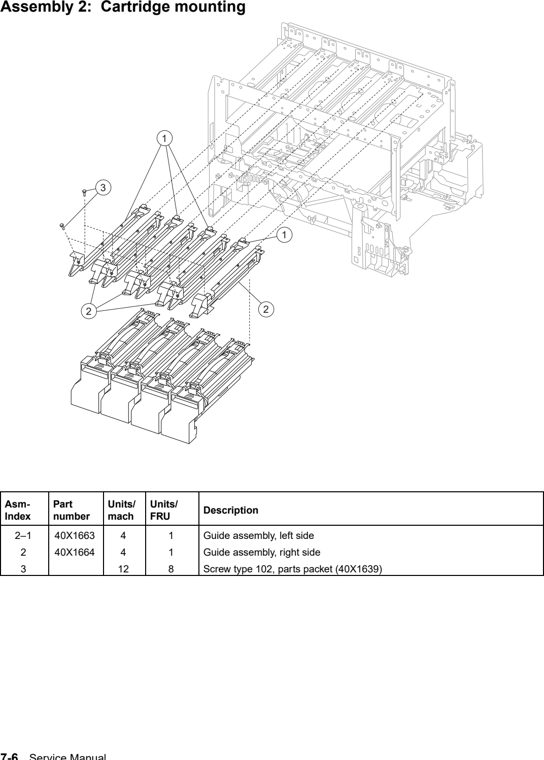

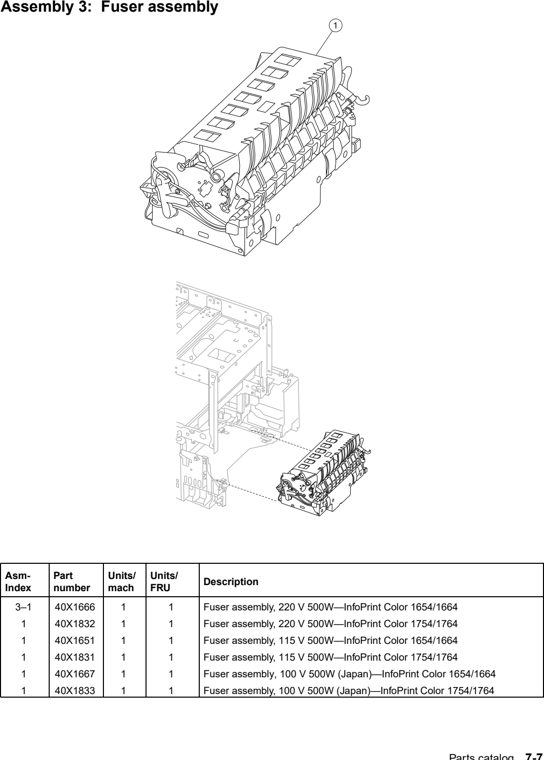

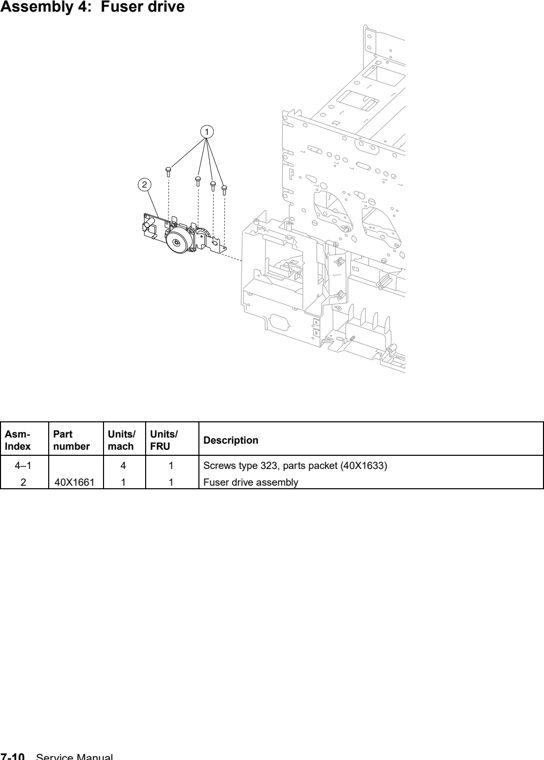

1-1 Also order cable tie parts packet (P/N 40X1648) 2 40X1631 250 output flag and retainer 3 40X1777 Output Options Autoconnect and Bin Sensor Fully refurbished with 90-day warranty 40X1777 $31.10 4 5 40X1601 Machine pad 6 40X1602 Top front support bracket 7 40X1622 Right rear cover 8 Screw type 324, parts packet (40X1635) 9 40X1620 Right front cover 10 Screw type 323, parts packet (40X1633) 11 12 40X1605 Front right light shield 13 40X1615 Front cover rear pivot cover 14 15 40X1608 Detent link spring 16 40X1672 Bellcrank detent bearing 17 40X1636 Rear hold down spring 18 40X1610 Front hold down bellcrank 19 20 40X1623 Front access door handle 21 22 23 40X1822 Operator panel bezel with overlays-InfoPrint Color 1754 only 23 InfoPrint Color 1764 only 24 40X1627 Clear LCD lens 25 40X1621 Front lower right cover 26 40X1629 Front right handle cover assembly 27 40X1768 Reference edge nip release strap 28 29 30 40X1618 Front lower left cover 31 40X1630 Front left handle cover assembly 32 40X1604 Left front light shield cover 33 40X1606 Paper tray guide 34 40X1612 Detent bellcrank 35 40X1613 Bellcrank detent spring 36 37 40X1616 Top paper jam label-InfoPrint Color 1664/1764 only 37 40X1617 Top paper jam label-InfoPrint Color 1654/1754 only | |
1.1-1 2 Screw type 323, parts packet (40X1633) 3 40X1653 Left upper pivot cover 4 40X1787 Jam access door spring 5 6 40X1655 Left lower pivot cover 7 40X1654 Left lower cover 8 9 40X1647 Ground cable 10 11 40X1643 Fuser latch slide 12 40X1645 Fuser latch slide spring 13 40X1640 Fuser top duct 14 40X1646 Duplex actuator arm assembly 15 40X1662 RIP fan duct 16 40X1642 Fuser wall duct 17 40X1641 Fuser bottom duct 18 40X1650 Fuser left duct 19 40X1652 Redrive belt cover duct NS 40X1648 Cable tie (6 in pack) Note: Use to secure cables to the inner system board shield) NS 40X1649 Cable tie mount NS 40X1671 Cable tie (6 in pack) | |
2-1 2 3 | |
1 | |
3.1-1 2 3 | |
4-1 Screws type 323, parts packet (40X1633) 2 | |

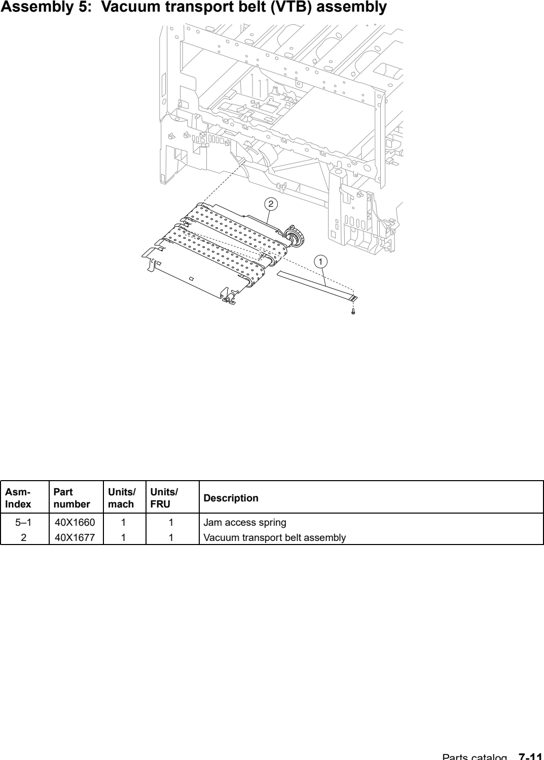

5-1 40X1660 Jam access spring 2 | |

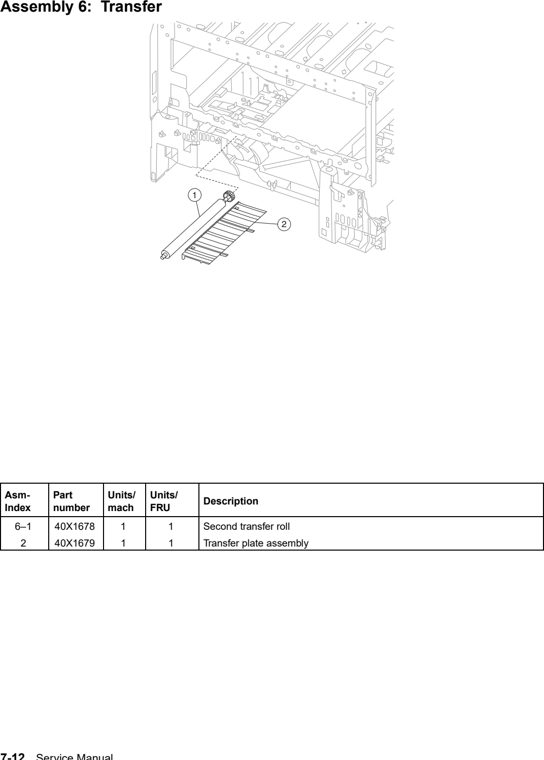

6-1 40X1678 Second Transfer Roll New 40X1678 (New) Retired, no longer available: Contact for alternatives 2 | |

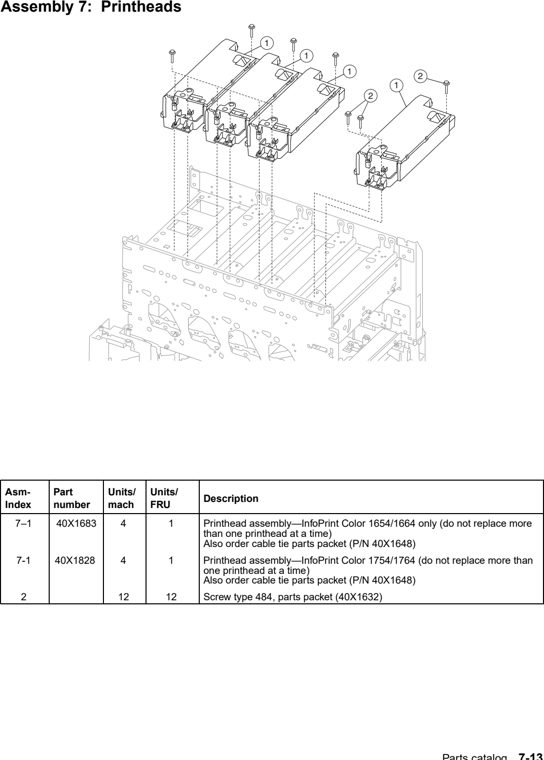

7-1 (do not replace more than one printhead at a time) Also order cable tie parts packet (P/N 40X1648) 2 Screw type 484, parts packet (40X1632) | |

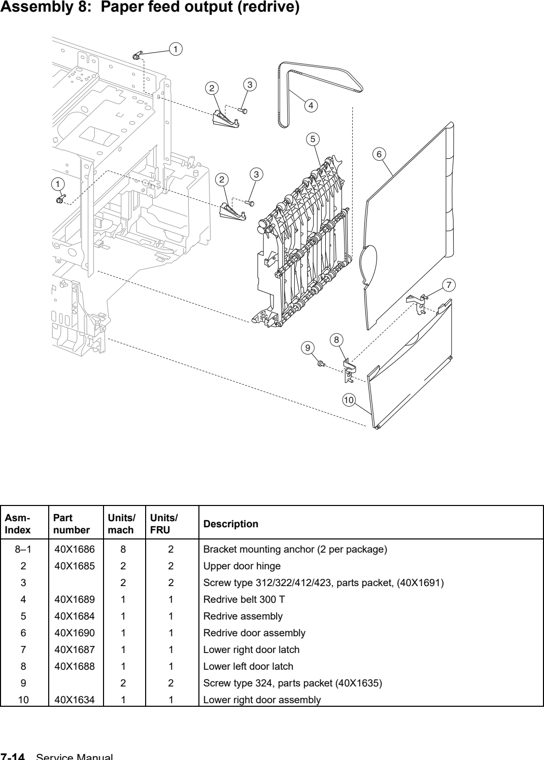

8-1 40X1686 Bracket mounting anchor (2 per package) 2 40X1685 Upper door hinge 3 4 40X1689 Redrive belt 300 T 5 6 7 40X1687 Lower right door latch 8 40X1688 Lower left door latch 9 Screw type 324, parts packet (40X1635) 10 | |

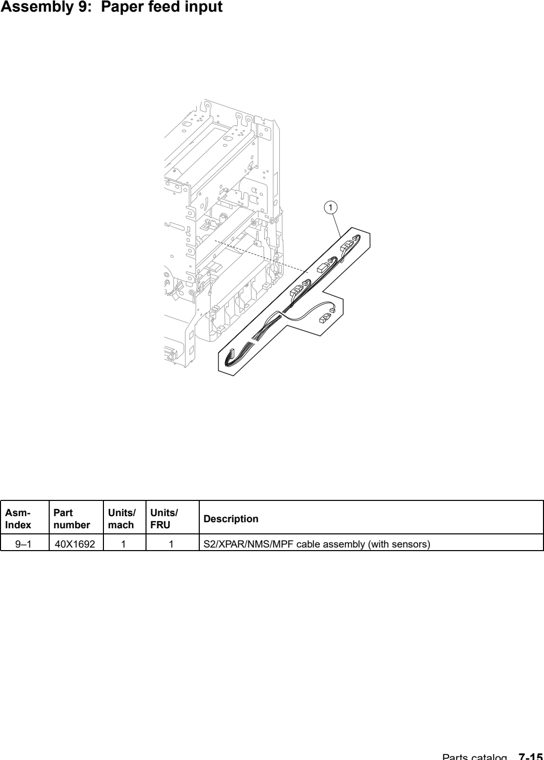

9-1 | |

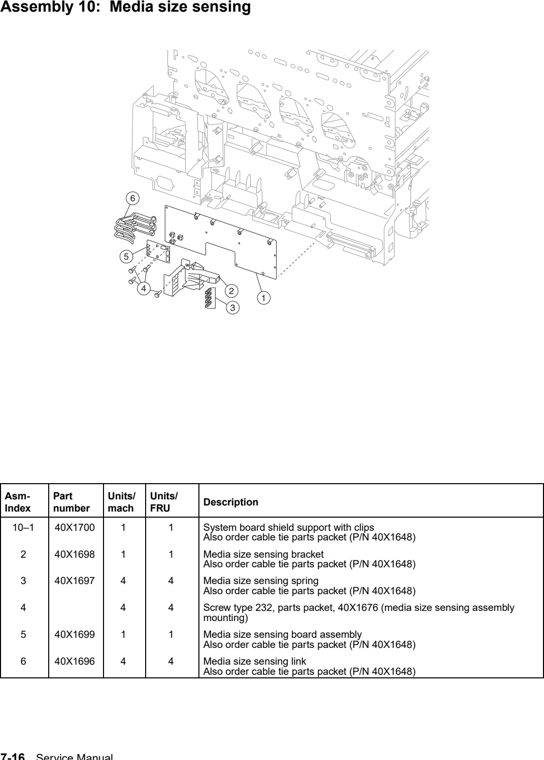

10-1 40X1700 System board shield support with clips Also order cable tie parts packet (P/N 40X1648) 2 40X1698 Media size sensing bracket Also order cable tie parts packet (P/N 40X1648) 3 40X1697 Media size sensing spring Also order cable tie parts packet (P/N 40X1648) 4 5 Also order cable tie parts packet (P/N 40X1648) 6 Also order cable tie parts packet (P/N 40X1648) | |

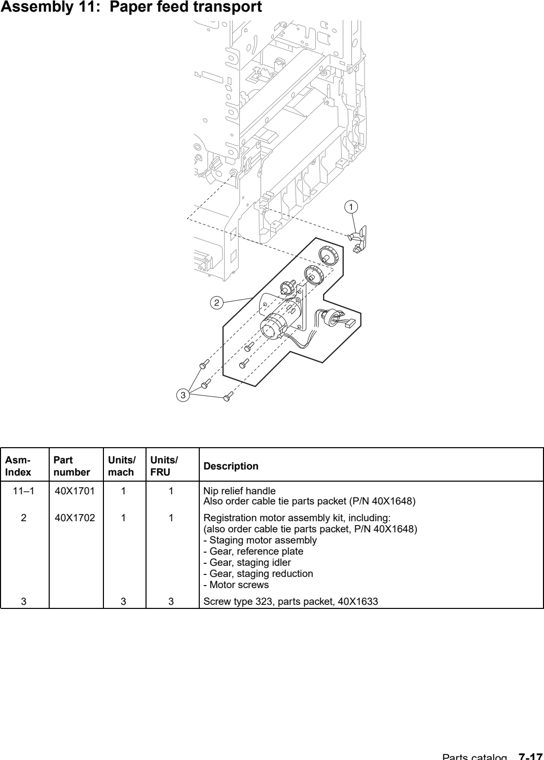

11-1 40X1701 Nip relief handle Also order cable tie parts packet (P/N 40X1648) 2 including: (also order cable tie parts packet, P/N 40X1648) - Staging motor assembly - Gear, reference plate - Gear, staging idler - Gear, staging reduction - Motor screws 3 Screw type 323, parts packet, 40X1633 | |

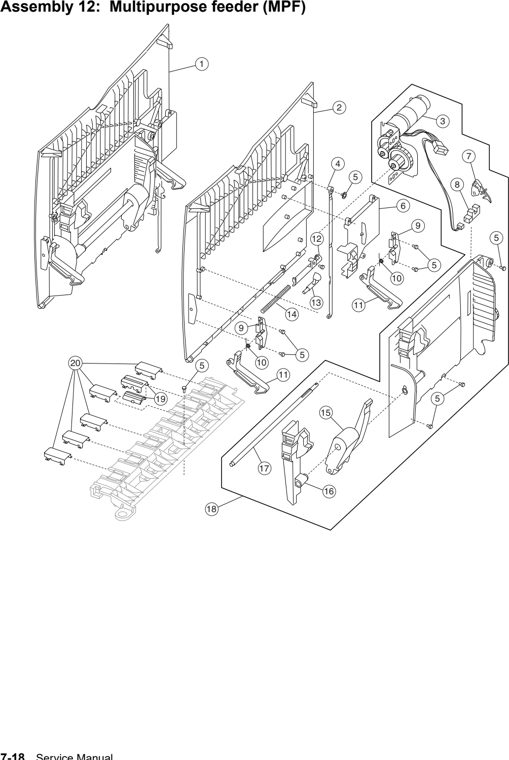

12-1 2 3 40X1853 MPF drive assembly 4 40X1708 Door hinge restraint 5 6 40X1710 MPF gear cover 7 40X1673 MPF paper out flag 8 40X1852 Paper out sensor MPF 9 40X1715 MPF support bracket cover 10 40X1707 MPF support bracket spring 11 40X1717 MPF support bracket 12 40X1713 Frame bias latch cover 13 40X1712 Frame bias latch 14 40X1706 Frame bias spring 15 40X1716 MPF autocompensator pick assembly 16 40X1736 MPF side restraint 17 40X1682 MPF pick shaft 18 19 40X1808 Friction buckler and buckler housing 20 40X1704 Rib housing NS 40X1854 MPF motor/sensor cable | |

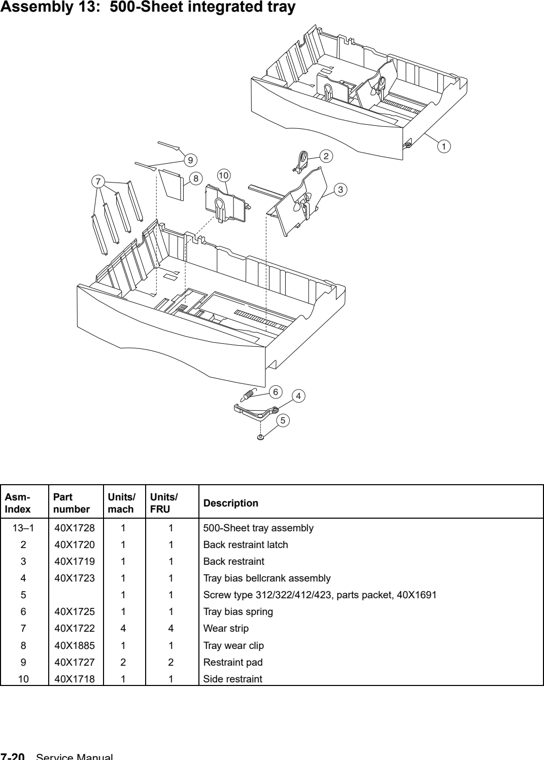

13-1 2 40X1720 Back restraint latch 3 40X1719 Back restraint 4 40X1723 Tray bias bellcrank assembly 5 6 40X1725 Tray bias spring 7 40X1722 Wear strip 8 40X1885 Tray wear clip 9 40X1727 Restraint pad 10 40X1718 Side restraint | |

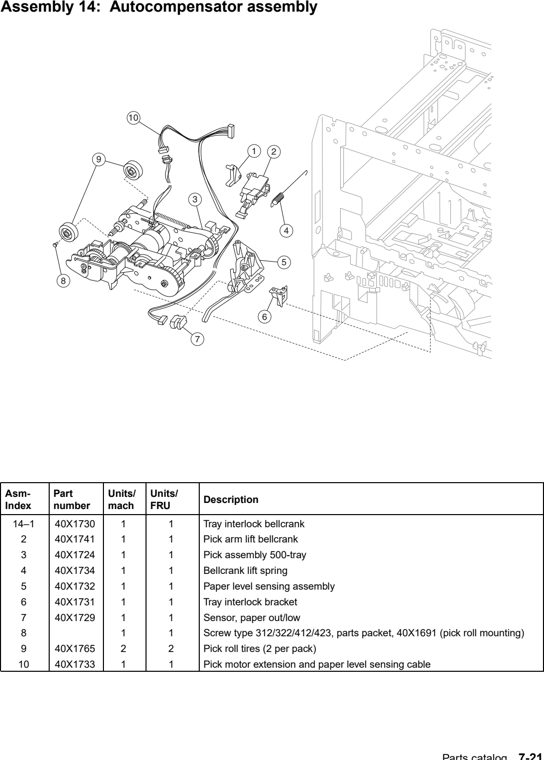

14-1 40X1730 Tray interlock bellcrank 2 40X1741 Pick arm lift bellcrank 3 4 40X1734 Bellcrank lift spring 5 6 40X1731 Tray interlock bracket 7 8 9 40X1765 Pick roll tires (2 per pack) 10 40X1733 Pick motor extension and paper level sensing cable | |

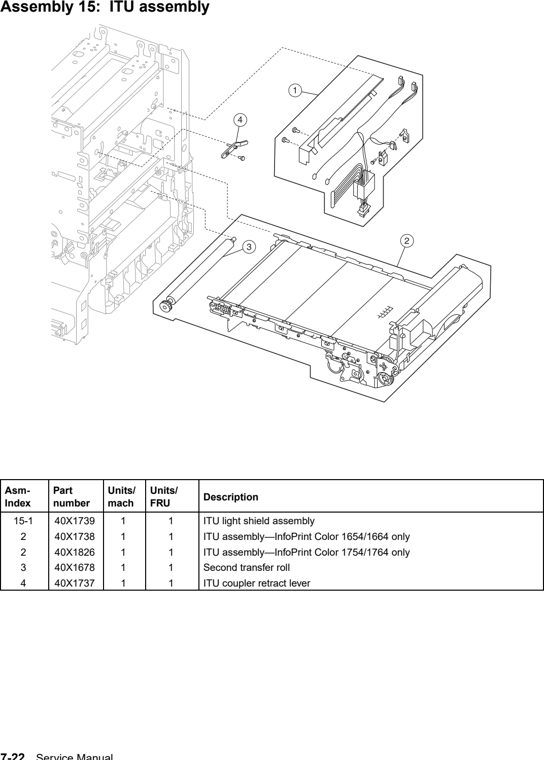

15-1 2 3 40X1678 Second Transfer Roll New 40X1678 (New) Retired, no longer available: Contact for alternatives 4 40X1737 ITU coupler retract lever | |

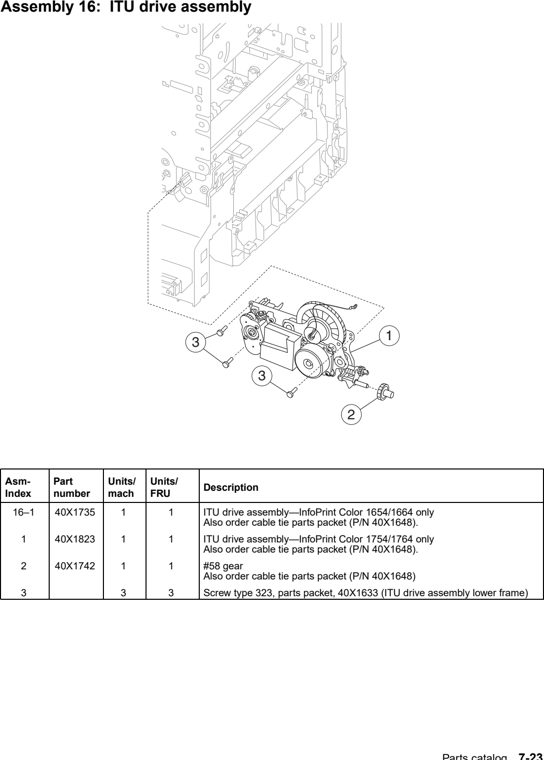

16-1 Also order cable tie parts packet (P/N 40X1648). 2 40X1742 #58 gear Also order cable tie parts packet (P/N 40X1648) 3 Screw type 323, parts packet, 40X1633 (ITU drive assembly lower frame) | |

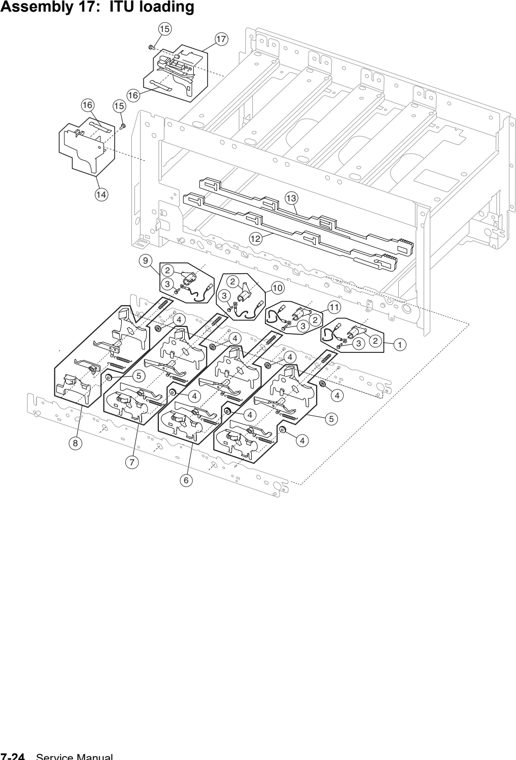

17-1 40X1761 Yellow terminal contact assembly 2 40X1744 Contact spring terminal 3 4 40X1743 Cartridge support roller 5 40X1749 Parts packet, ITU loading-yellow, including - Yellow BOR spring - Rear block guide - Rear transfer bellcrank - Front V block guide - Front transfer bellcrank - High voltage contact spring 6 40X1750 Parts packet, ITU loading-cyan, including - Cyan BOR spring - Rear V block guide - Rear transfer bellcrank - Front V block guide - Front transfer bellcrank - High voltage contact spring 7 40X1751 Parts packet, ITU loading-magenta, including - Magenta BOR spring - Rear V block guide - Rear transfer bellcrank - Front V block guide - Front transfer bellcrank - High voltage contact spring 8 40X1752 Parts packet, ITU loading-black, including - Black BOR spring - Rear block guide - Rear transfer bellcrank - Front V block guide - Front transfer bellcrank - High voltage contact spring 9 40X1753 Black terminal contact assembly 10 40X1757 Magenta terminal contact assembly 11 40X1759 Cyan terminal contact assembly 12 40X1747 BOR front cam 13 40X1748 BOR rear cam 14 40X1770 Front ITU guide 15 Screw type 323, parts packet, 40X1633 16 40X1745 ITU bias spring 17 40X1746 Rear ITU guide | |

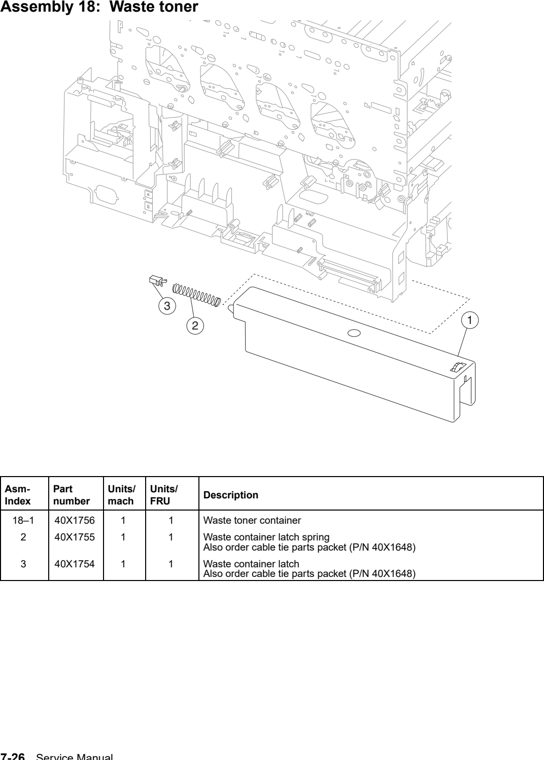

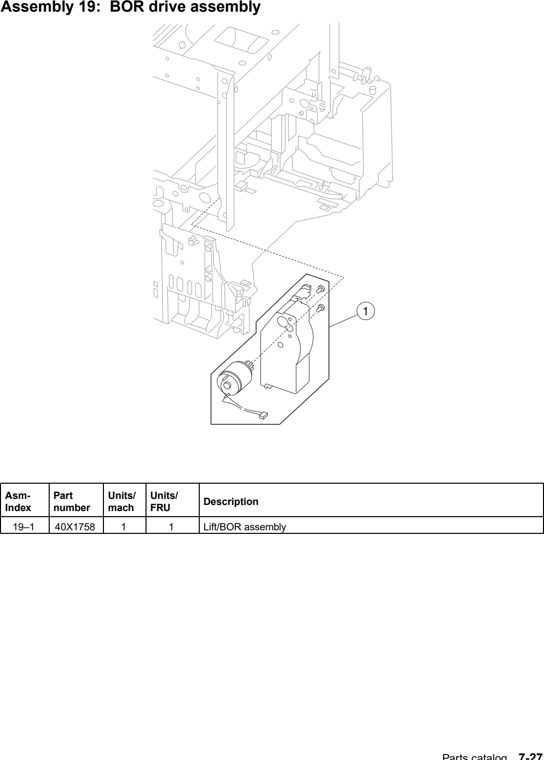

18-1 2 40X1755 Waste container latch spring Also order cable tie parts packet (P/N 40X1648) 3 40X1754 Waste container latch Also order cable tie parts packet (P/N 40X1648) | |
19-1 | |

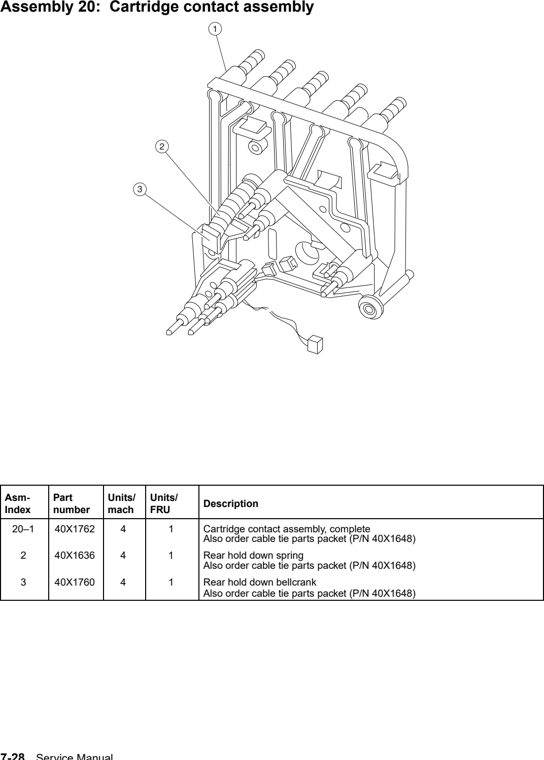

20-1 Also order cable tie parts packet (P/N 40X1648) 2 40X1636 Rear hold down spring Also order cable tie parts packet (P/N 40X1648) 3 40X1760 Rear hold down bellcrank Also order cable tie parts packet (P/N 40X1648) | |

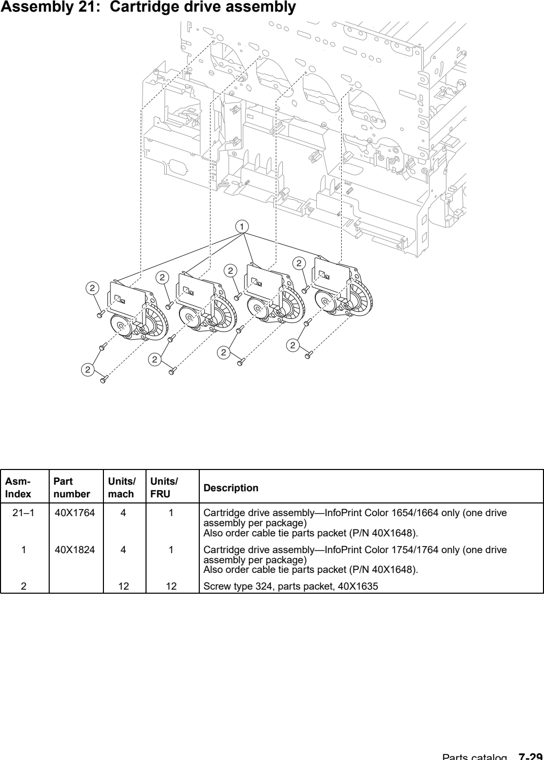

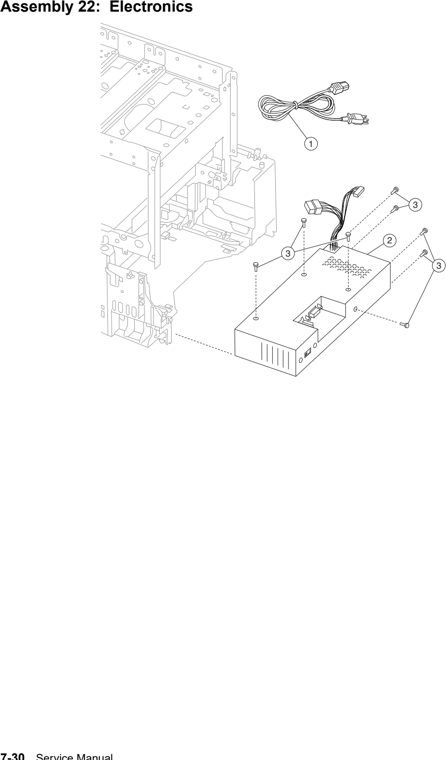

21-1 Also order cable tie parts packet (P/N 40X1648). 2 Screw type 324, parts packet, 40X1635 | |
22-1 2 | |
22.1-1 2 40X1786 Cable clip 3 Also order cable tie parts packet (P/N 40X1648) 4 40X1785 Ground cable 5 40X1700 System board shield support with clips 6 7 40X1817 System Board, Network 1754 1764 Fully refurbished with 90-day warranty 40X1817 40X1829 10z0983 I This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $749.00 40X1817 System Board Network 1754 1764 New 40X1817 40X1829 10z0983 I Advanced Exchange (New)This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $965.00 40X1817 System Board Network New 40X1817 40X1829 10Z0983 (New) This part is electronically branded upon installation, and therefore NON-RETURNABLE IF OPENED $965.00 Also order cable tie parts packet (P/N 40X1648) | |
22.2 1 2 Screw type 323, parts packet, 40X1633 (TFR HVPS board to frame) 3 Screw type 324, parts packet, 40X1635 (TFR HVPS board to frame) 4 40X1794 Standoff, high voltage power supply-developer board 5 Screw type 121, parts packet, 40X1780 6 Also order cable tie parts packet (P/N 40X1648) | |
22.3 1 2 40X1796 VTB fan gap cover 3 4 5 6 40X1662 RIP fan duct 7 Screw type 324, parts packet, 40X1635 | |

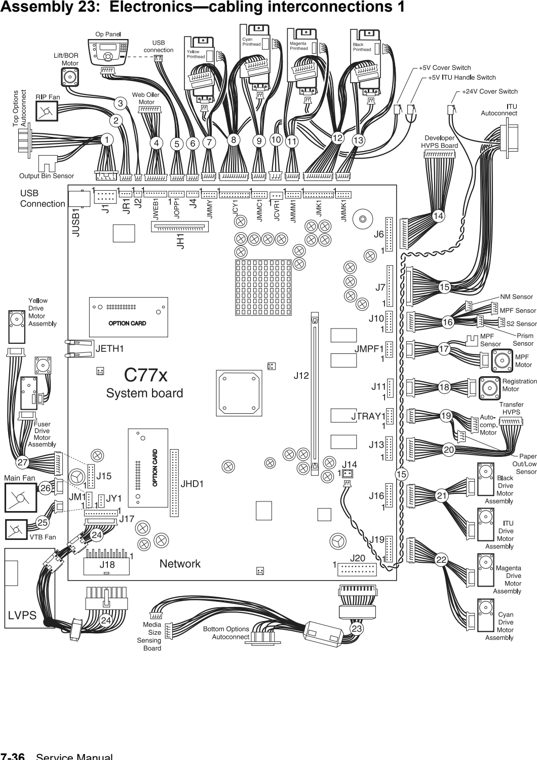

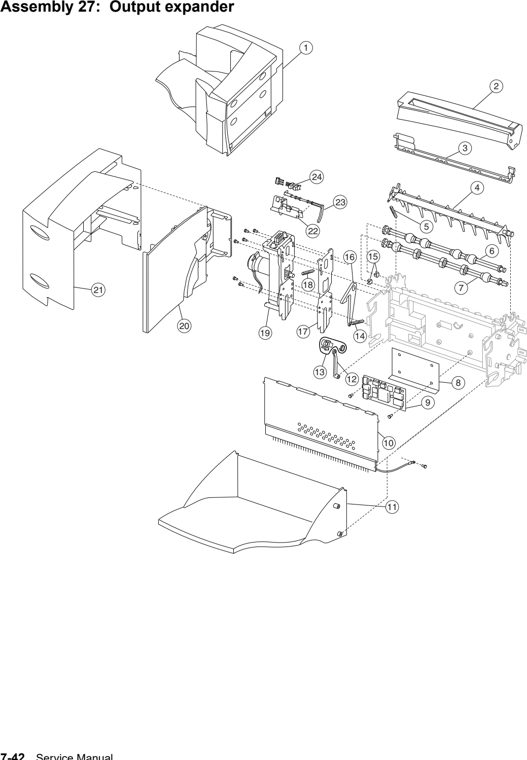

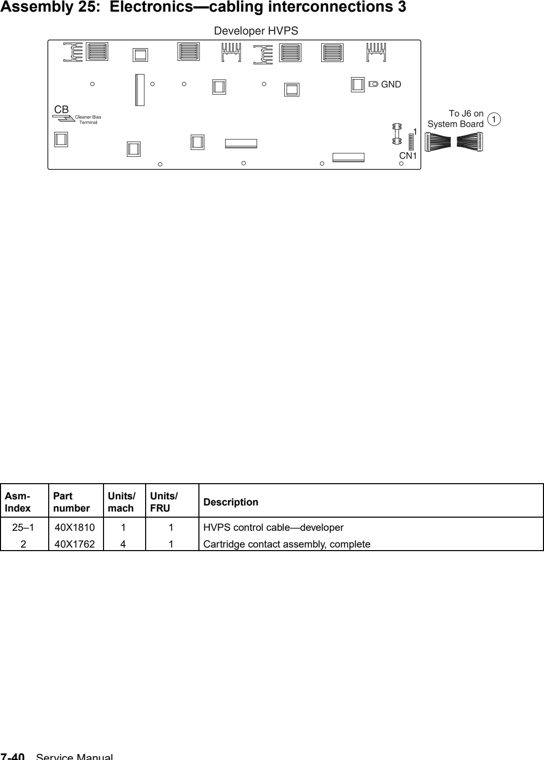

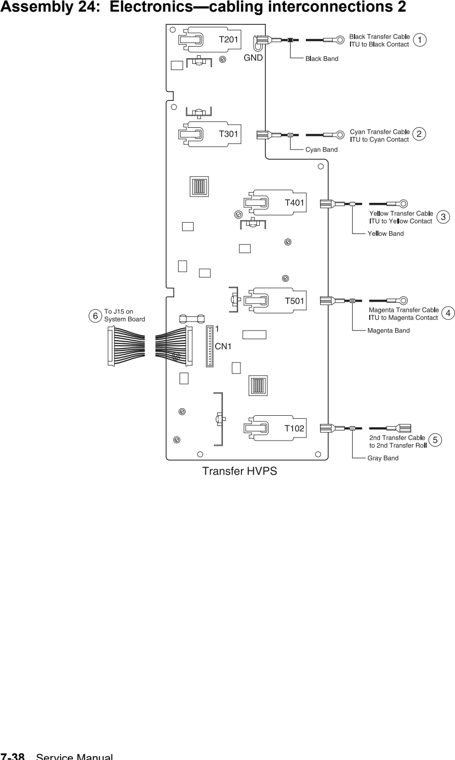

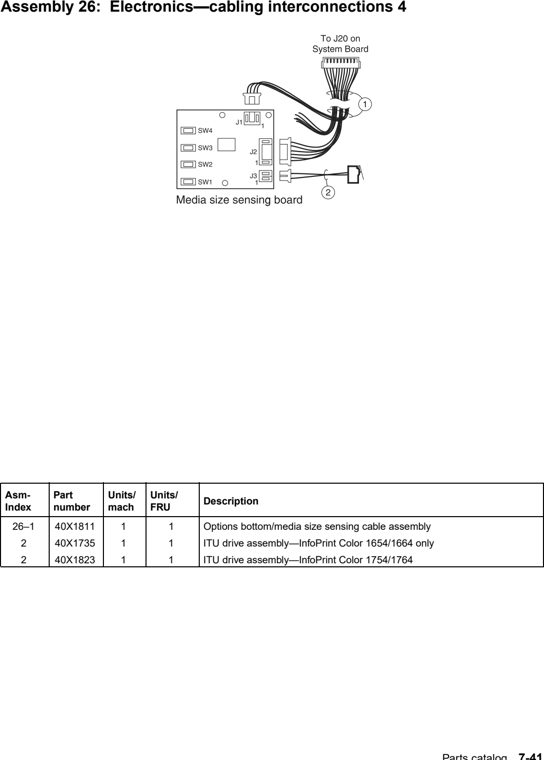

27-1 2 3 4 5 40X2000 Upper diverter spring 6 40X2007 Exit shaft assembly, also order parts packet 40X2011 7 8 9 40X2013 Output expander DC motor board 10 11 12 40X2014 Diverter arm 13 14 40X2010 Output tray spring 15 Shaft bearing, parts packet, 40X2011 16 17 18 19 20 21 22 23 24 40X3265 Dual bin full sensor | |
27.1-1 40X1994 Right jam access door assembly 2 40X2006 Lower shaft assembly, also order parts packet 40X2011 3 40X2004 Drive pulley 4 40X1983 Rear attach bracket 5 screw, parts packet, 40X1813 6 40X1985 Front cover 7 40X2002 160-gear belt 8 40X2003 Belt idler arm assembly 9 40X2005 Belt tensioner spring 10 11 12 40X2015 Frame assembly 13 40X3264 Output expander pass thru sensor 14 6 1 Shaft bearing, parts packet, 40X2011 15 40X2012 Shaft assembly, middle 40T, also order parts packet 40X2011 NS 40X1998 Multi-bin stacker kit | |

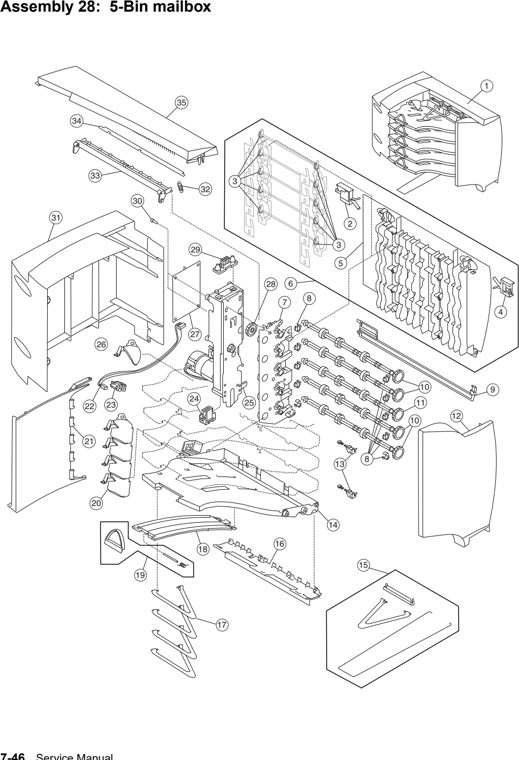

28-1 2 40X2157 Access door rear latch 3 40X2049 Rear access door roller assembly 4 40X2024 Access door front latch 5 40X2032 Front door cover 6 40X4268 Front door assembly 7 40X2044 Left frame assembly w/clutch assembly 8 40X2056 Drive shaft bushing packet 9 40X2033 Right cover 10 40X2054 Drive shaft assembly 11 40X2055 Drive with gear shaft assembly 12 40X2029 Front cover 13 40X3242 5-bin mailbox pass thru sensor 14 40X2028 Paper cap tray 15 40X2043 5-bin mailbox assembly kit 16 40X2027 Bail attach bracket assembly 17 Bail, order P/N 40X2043, 5-bin mailbox assembly kit 18 40X2035 Paper tray support 19 40X2042 Paper tray stop assembly 20 40X2038 Bin full flag 21 40X2030 Rear structural cover 22 40X2023 Tray media level sensor cable 23 40X3240 Dual bin level sensor 24 40X2052 Lower autoconnect cable assembly 25 40X2050 Main DC drive assembly 26 40X2026 Bin full flag 27 40X2064 5-bin mailbox system board assembly 28 40X2067 Drive gear 29 40X2053 Upper autoconnect cable assembly 30 Screw, parts packet, 40X2046 (board mounting) 31 40X2031 Rear assembly cover 32 33 40X2025 Top bin cover 34 40X2040 Wire cover 35 | |
28.1-1 40X2065 Diverter spring 2 40X2039 Right side frame assembly 3 Screw type 323, parts packet, 40X1633 4 40X2057 Diverter actuator cam 5 40X2060 Diverter actuator spring 6 40X2058 Diverter actuator latch 7 40X2059 Diverter actuator arbor 8 40X2069 C-clip retainer 9 40X2021 Attach front bracket 10 40X2061 Diverter solenoid 11 40X2022 Static ground contact 12 40X2041 Paper exit deflector w/brush 13 40X2037 Paper deflector 14 40X2068 Deflector 15 40X2036 Paper top bin deflector NS 40X1968 Drive gear NS 40X2047 Roller retainer | |

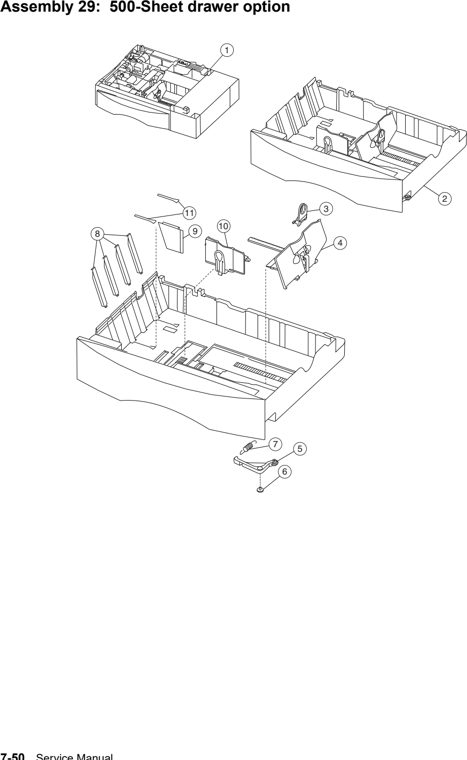

29-1 40X1880 500-Sheet Drawer Complete Assembly with Tray Fully refurbished with 90-day warranty 40X1880 $58.21 2 3 40X1720 Back restraint latch 4 40X1719 Back restraint 5 40X1723 Tray bias bellcrank assembly 6 7 40X1725 Tray bias spring 8 40X1722 Wear strip 9 40X1721 Tray wear clip 10 40X1885 Tray wear clip 11 40X1727 Restraint pad | |
29.1-1 2 Screw type 323, parts packet, 40X1633 3 4 40X1898 Paper level sensing assembly 5 40X1938 Autoconnect cable assembly 6 40X1648 Cable tie (6 in a pack) Note: To secure cables to the inner system board shield) 7 40X1908 Frame cover 8 40X1730 Tray interlock bellcrank 9 40X1891 Pass thru sensor 10 40X1896 Hinge 11 40X1894 Electronics/size sensing assembly with system board 12 40X1741 Pick arm lift bellcrank 13 40X1899 Media size sensing assembly 14 40X1734 Bellcrank lift spring 15 40X1907 500-Sheet base assembly 16 40X1601 Machine pad 17 40X1903 Plate, 500-Sheet support assembly 18 40X1909 Paper guide 19 40X1897 Wall support plate 20 40X1911 Base door assembly 21 40X1895 500-sheet option spring 22 40X1913 500-Sheet option deflector 23 40X1765 Pick roll tires (2 per pack) NS 40X1671 Cable tie (6 in pack) | |

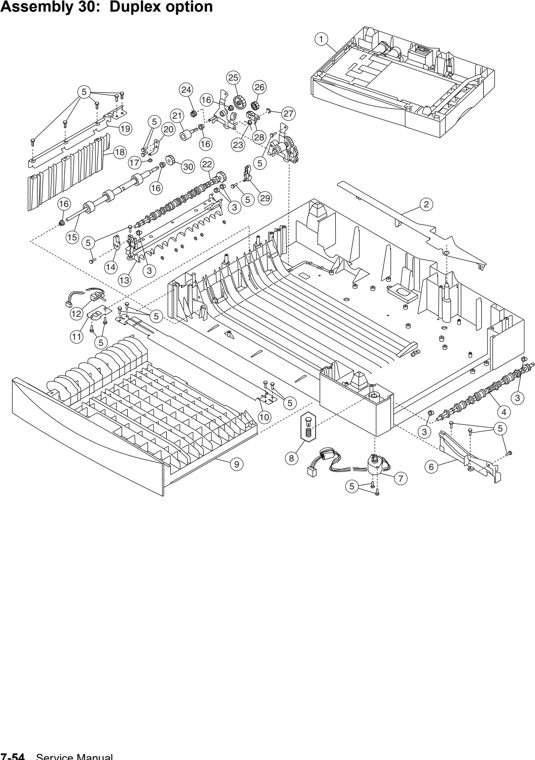

30-1 2 40X1961 Back cover 3 40X1965 Redrive bearing 4 40X1930 Duplex entry shaft assembly 5 6 40X1923 Right side front tray guide 7 40X1956 Deflector actuator assembly 8 40X1957 Deflector follower assembly 9 40X1959 Duplex front jam tray assembly 10 40X1935 Duplex support bracket 11 40X1964 Sensor mount plate 12 40X1927 Duplex exit sensor 13 40X1924 Duplex shaft mount 14 40X1954 Front decurl assembly 15 40X1979 F/R backup shaft assembly 16 40X1951 5 mm bushing 17 40X1948 Brake pad 18 40X1963 Duplex paper guide 19 40X1933 Wall support 20 40X1950 Brake spring 21 40X1947 Pass thru shaft assembly 22 40X1926 Duplex shaft assembly 23 40X1944 Pass thru spring 24 25 40X1942 Spur drive gear 26 40X1943 26T duplex gear 27 1 Retainer, parts packet, 40X1966 28 40X1946 Bellcrank assembly 29 40X1949 Decurl BAC assembly 30 40X1929 40T shaft drive F/R gear NS 40X1955 Pulley washer | |
30.1-1 40X1934 Duplex support plate 2 40X1938 Autoconnect cable assembly 3 40X1939 DC forward/reverse motor assembly 4 40X1940 DC duplex feed motor 5 Screw type 323, parts packet, 40X1633 6 40X1648 Cable tie (6 in pack) 7 40X1937 Back support 8 40X1922 Duplex card assembly 9 40X1958 Transfer belt 10 40X1960 Right jam clearance tray assembly 11 40X1969 C-clip retainer 12 40X1953 Aligner spring 13 40X1967 Paper guide assembly 14 40X1941 Drive alignment shaft assembly 15 40X1952 Reduction gear shaft 16 40X1931 Right backup spring assembly 17 40X1968 Drive gear 18 40X1932 Left backup spring assembly 19 40X1962 Upper rib assembly 20 40X1925 Duplex input sensor 21 Screw type 324, parts packet 440X1635 | |

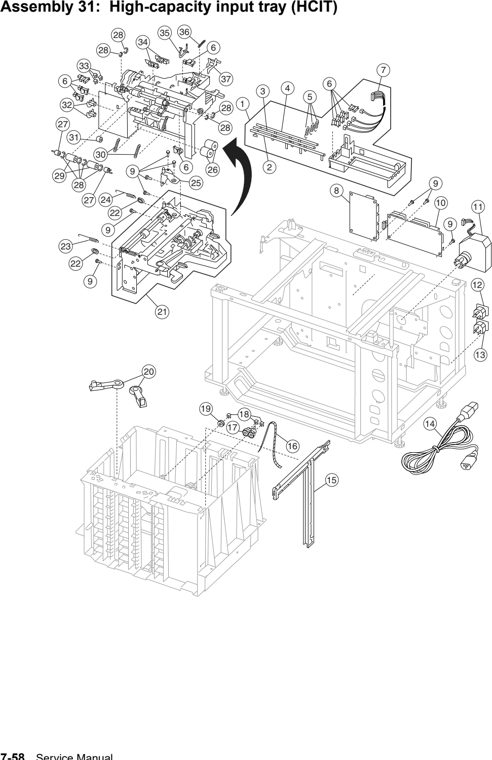

31-1 2 40X2111 Flag, paper size F 3 40X2112 Flag, paper size C 4 40X2110 Flag, paper size R 5 40X2113 Spring, paper size flag 6 40X2108 Sensor, photo interrupter 7 40X2103 Paper size sensors cable 8 40X2095 System control board 9 10 11 40X2105 Elevator motor assembly 12 40X2097 AC power outlet 13 40X2098 AC power inlet 14 40X2091 AC power cord jumper 15 40X2115 Paper tray guide 16 40X2134 Elevator lift belt 17 40X2136 Elevator lift 18 40X2139 Ring 7, elevator lift gear/elevator lift 19 40X2135 Elevator lift gear 20 40X2114 Paper tray arms 21 40X2116 Feed unit, complete assembly 22 40X2118 Bushing 23 40X2124 Front feed unit spring 24 40X2125 Rear feed unit spring 25 40X2138 Feed cover 26 40X2131 Separation/torque roller 27 40X2120 Feed cam 28 E-clips, parts packet, 40X2122 29 40X2119 Feed roller 30 40X2121 Feed unit spring 31 40X2123 060 bushing 32 40X2133 Emitter timing wheel 33 40X2126 Plastic 5W clip 34 40X2117 Special optical sensors 35 40X2127 Level sensor flag 36 40X2129 Extension spring 37 40X2128 Near empty sensor flag NS 40x2090 2000-Sheet High Capacity Feeder, complete assembly Fully refurbished with 90-day warranty 40x2090 5061-HC2 | |
31.1-1 40X2145 Rear cover 2 40X2143 Right side cover 3 40X2092 Caster, movable 4 5 40X2094 F adjuster 6 40X2141 Front cover 7 40X2142 Cover, main CA 8 40X2093 Caster, fixed 9 40X2144 Left side cover 10 40X2146 Upper left side jam cover 11 40X2100 Locating pin, options front right 12 40X2099 Locating pin, options rear left 13 40X2106 Options autoconnect cable assembly 14 40X2109 Options cable mounting plate NS 40X2101 Feed unit special sensors cable NS 40X2102 Feed unit sensors cable NS 40X2104 Elevator motor cable NS 40X2107 Magnetic latch NS 40X2130 Tray present lever NS 40X2132 Cable clamp NS 40X2140 Stabilizer kit with mounting screws | |

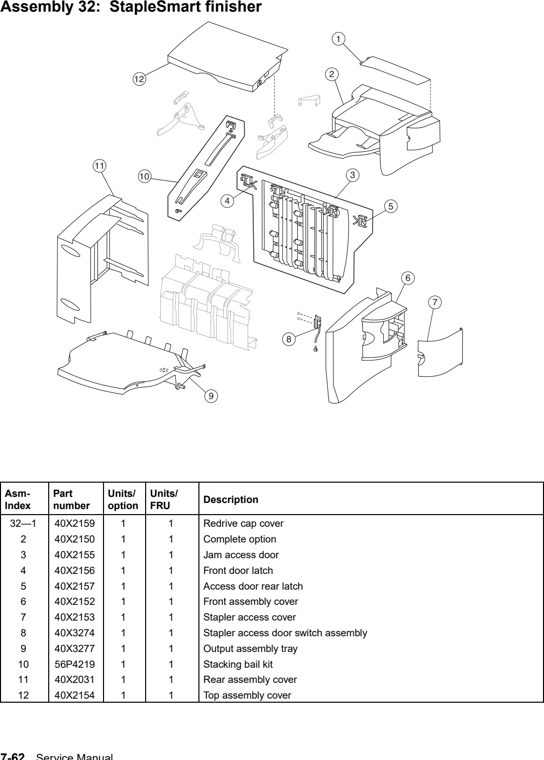

32-1 40X2159 Redrive cap cover 2 40X2150 Complete option 3 40X2155 Jam access door 4 40X2156 Front door latch 5 40X2157 Access door rear latch 6 40X2152 Front assembly cover 7 40X2153 Stapler access cover 8 40X3274 Stapler access door switch assembly 9 40X3277 Output assembly tray 10 56P4219 Stacking bail kit 11 40X2031 Rear assembly cover 12 40X2154 Top assembly cover | |
32.1-1 | |
32.2-1 2 99A0104 Spring, upper diverter | |
32.3-1 40X2158 StapleSmart wheels maintenance kit | |

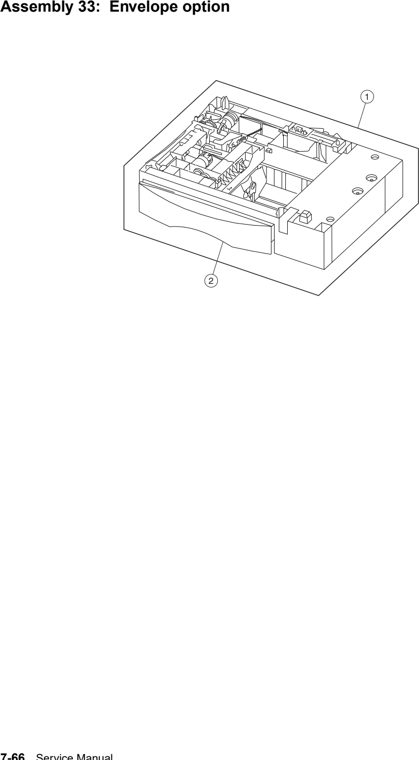

33-1 InfoPrint Color 1654/1664 1 InfoPrint Color 1754/1764 2 InfoPrint Color 1654/1664 2 InfoPrint Color 1754/1764 NS 40X2080 Envelope feeder pick tire | |

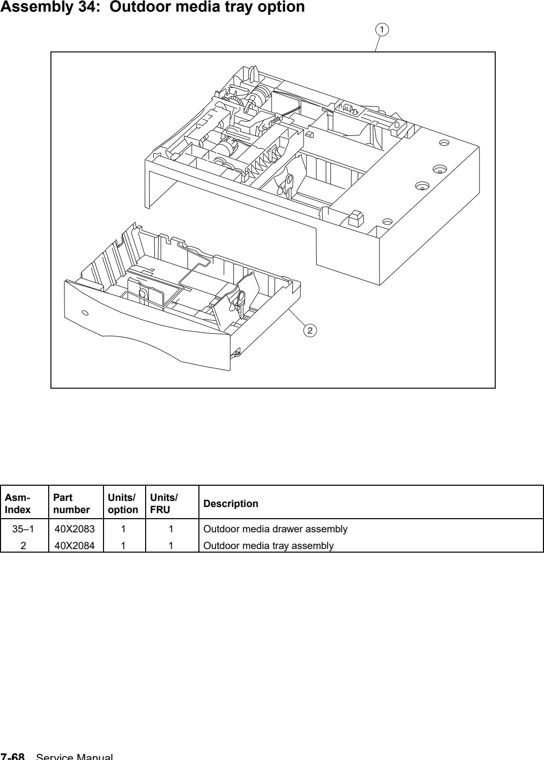

35-1 40X2083 Outdoor media drawer assembly 2 40X2084 Outdoor media tray assembly | |

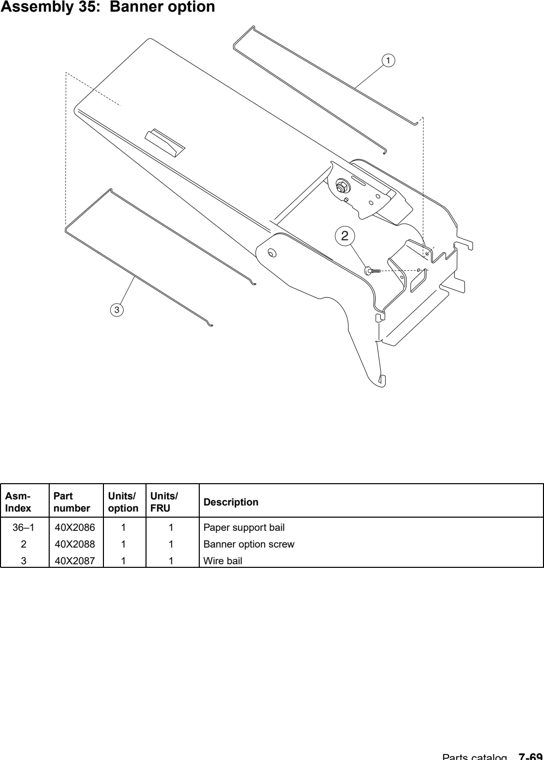

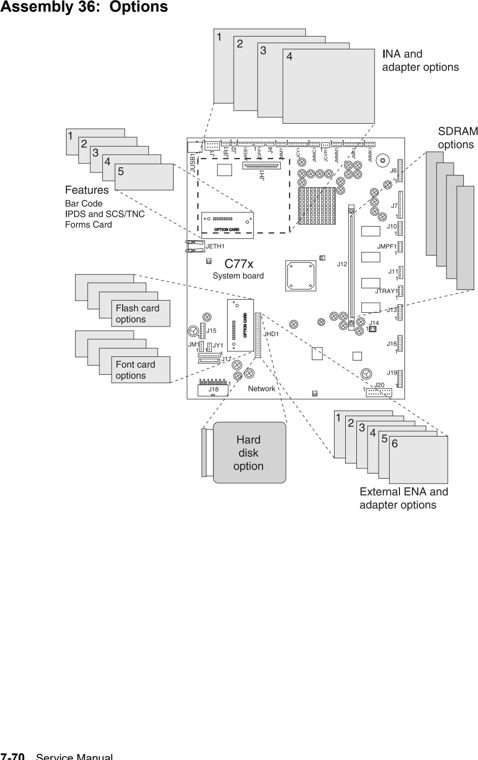

36-1 40X2086 Paper support bail 2 40X2088 Banner option screw 3 40X2087 Wire bail |
