IBM Infoprint 1125 & 1125n (4525) Parts






Please call for parts assistance

Assembly 1: Covers

1
53P8916 Cover Assembly Redrive Cap
Fully refurbished with 90-day warranty
53P8916 99A2074 53P8434 99a1512



2
53P8431 Cover Fuser Wick Assembly
Fully refurbished with 90-day warranty
53P8431



3
53P8871 Cover Laser Assembly
Fully refurbished with 90-day warranty
53P8871
$30.00



4
53P9131 Smart Contact Assembly
Fully refurbished with 90-day warranty
53P9131
$19.00



5
53P8917 Cover Right Side
Fully refurbished with 90-day warranty
53P8917
$30.00



6
53P8881 Hinge Upper Front Cover
Fully refurbished with 90-day warranty
53P8881
$59.00



7
56P0100 Upper Front Cover 1125
Fully refurbished with 90-day warranty
56P0100

Retired, no longer available: Contact for alternatives



7
56P0105 Kit, Upper Front Cover
Fully refurbished with 90-day warranty
56P0105
$99.00



8
53P8316 Label TLI/ID/Serial No. - Blank
Fully refurbished with 90-day warranty
53P8316



9
53P8429 Latch Upper Cover
Fully refurbished with 90-day warranty
53P8429



10
53P8201 Spring Latch
Fully refurbished with 90-day warranty
53P8201



11
53P8433 Cover Assembly Lower Front
Fully refurbished with 90-day warranty
53P8433



12
53P8882 Operator Panel Assembly 110V
Fully refurbished with 90-day warranty
53P8882
$79.00



13
53P8909 Switch Cover Open w/Operator Panel
Fully refurbished with 90-day warranty
53P8909
$25.00



14
53P9119 Cover Left Door 1-slot
Fully refurbished with 90-day warranty
53P9119
$39.00



14
53P8432 Cover Left Door
Fully refurbished with 90-day warranty
53P8432
$45.00



15
53P8465 Support Paper
Fully refurbished with 90-day warranty
53P8465


53P8875 Shroud Fan
Fully refurbished with 90-day warranty
53P8875



53P8912 Fan Main
Fully refurbished with 90-day warranty
53P8912
$25.00



56P1049 Sensor, Standard Bin Level
Fully refurbished with 90-day warranty
56P1049
$34.00



53P8479 Flag Output Paper Level
Fully refurbished with 90-day warranty
53P8479



53P8863 Bracket Level Sensor
Fully refurbished with 90-day warranty
53P8863
$19.00



53P8883 Duct Left Stacker
Fully refurbished with 90-day warranty
53P8883



53P8405 Duct Main Body
Fully refurbished with 90-day warranty
53P8405



53P8884 Guide Redrive Exit
Fully refurbished with 90-day warranty
53P8884



53P8885 Support Left Lower Stacker
Fully refurbished with 90-day warranty
53P8885



10
53P8885 Support Left Lower Stacker
Fully refurbished with 90-day warranty
53P8885



11
53P8918 Pan Drip ITC
Fully refurbished with 90-day warranty
53P8918



12
53P8888 Support Right Stacker Plate
Fully refurbished with 90-day warranty
53P8888



13
53P8887 Transfer Plate Assembly
Fully refurbished with 90-day warranty
53P8887



14
53P8889 Right Side Frame
Fully refurbished with 90-day warranty
53P8889



15
53P8437 Frame Extension Right
Fully refurbished with 90-day warranty
53P8437



16
53P8204 Spring Tray Bias
Fully refurbished with 90-day warranty
53P8204
$13.00



17
53P8361 Parts Packet Contact Kit
Fully refurbished with 90-day warranty
53P8361



Contact, Dr Blade/TAR/Developer Roll (3)
Contact, PC Drum (1)
Contact, Charge Roll (1)
Block, Contact Mounting (4)
Screw, Contact Mounting (5)

18
53P8335 Sensor Toner Cartridge Level
Fully refurbished with 90-day warranty
53P8335
$19.00



19
53P8205 Roller Developer Support
Fully refurbished with 90-day warranty
53P8205
$16.00



20
53P8203 Tray Bias Arm Assembly
Fully refurbished with 90-day warranty
53P8203



21
53P8890 Pan Center Assembly
Fully refurbished with 90-day warranty
53P8890



22
53P8886 Spring Cartridge Hold Down
Fully refurbished with 90-day warranty
53P8886



23
53P8442 Deflector Upper PF
Fully refurbished with 90-day warranty
53P8442
$12.00



24
53P8879 Deflector Inner
Fully refurbished with 90-day warranty
53P8879



25
53P8913 Frame EP Module
Fully refurbished with 90-day warranty
53P8913



26
53P8207 Sensor Input
Fully refurbished with 90-day warranty
53P8207
$15.00



27
53P8436 Frame Extension Left
Fully refurbished with 90-day warranty
53P8436
$72.00



28
53P8351 Shield ESD Assembly with label
Fully refurbished with 90-day warranty
53P8351



29

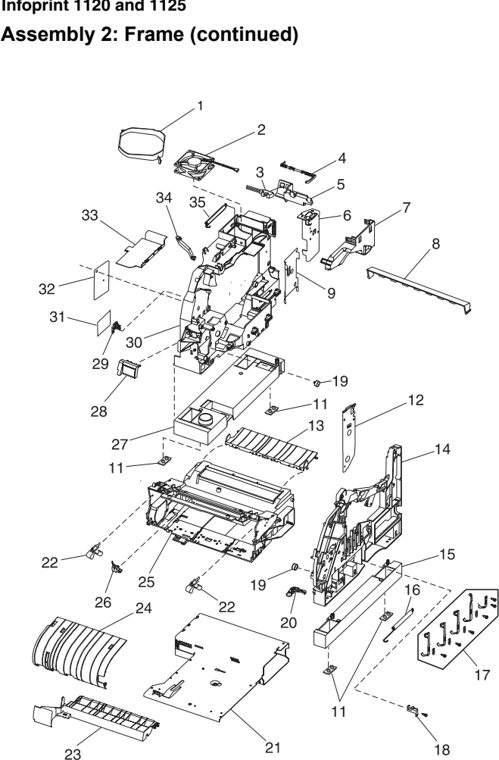

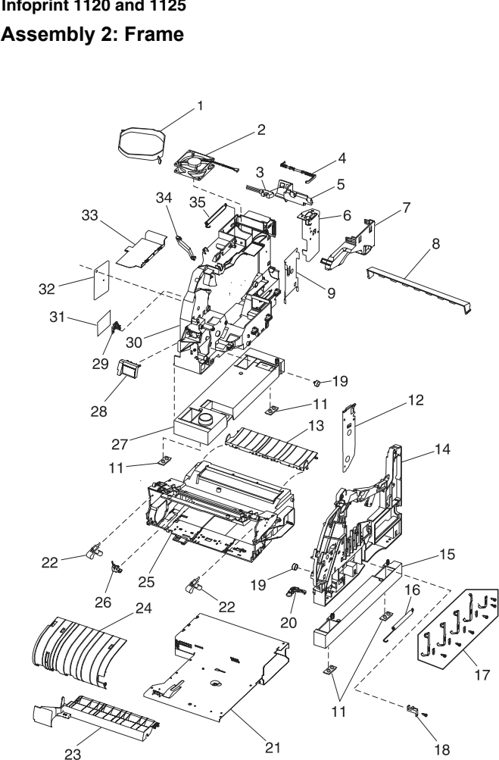

2 - 30Assembly 2: Frame (continued)

 53P8891 1 Left Side Frame

31
56P1139 Board, Input Tray (ITC)
Fully refurbished with 90-day warranty
56P1139
$25.00



32 53P8641 1 Guard, Gear

33
53P8920 Pan Motor Drip
Fully refurbished with 90-day warranty
53P8920



34
53P8357 Link Gear Release
Fully refurbished with 90-day warranty
53P8357
$16.00




35
53P8352 Spring Counterbalance
Fully refurbished with 90-day warranty
53P8352
$13.00



NS 53P8617 17 Parts Packet, Screw

NS 53P8441 1 Spring, Cartridge Load

NS 53P8452 1 Shield, Gear

NS 53P8470 1 Contact, LSF Ground

NS 53P8448 1 Contact, RSF Ground

NS NA 1 Shield, Fuser Lockout

NS 53P8449 4 Nut Plate, Frame 1125

NS 53P8450 1 Spring, Duplex Ground

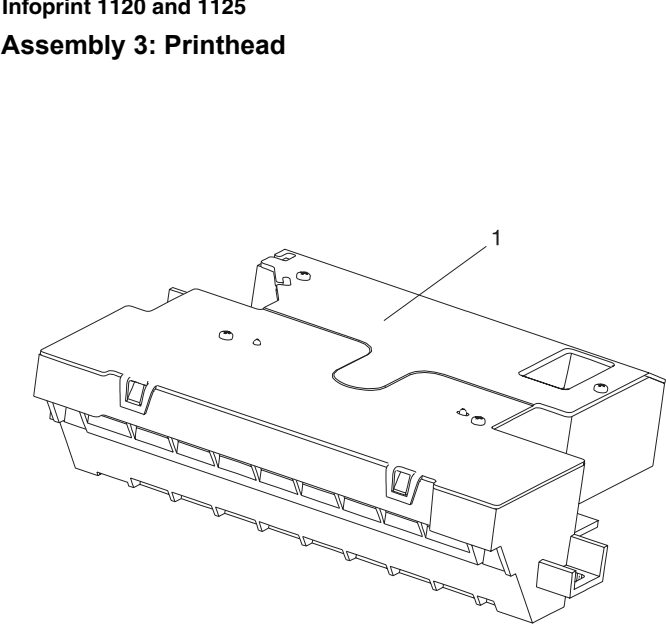

Assembly 3: Printhead
53P8892 Printhead Assembly
Fully refurbished with 90-day warranty
53P8892
$59.00

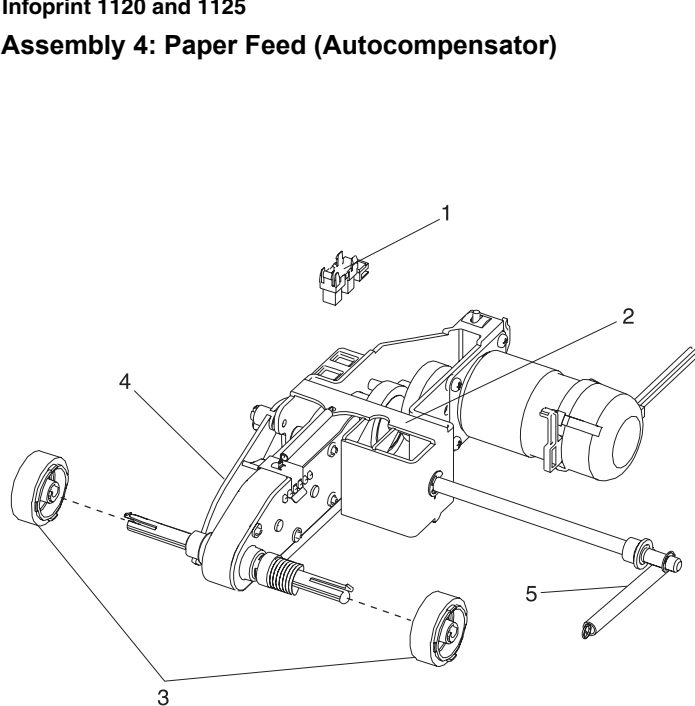

Assembly 4: Paper Feed (Autocompensator)

1 53P9130 Sensor, Paper Out Internal Tray

53P8937 250 Sheet Pick Arm Assembly
Fully refurbished with 90-day warranty
53P8937
$59.00



75P5958 Pick roll tires (2 per pack)
New
75P5958 (New)
$16.00



4 53P8928 Flag, Paper Out 250 Tray (1120)

5 53P8929 Spring, Bellcrank Internal (250) (1120)

NS 53P8617 Parts Packet, Screw (Hanger)
NS 56P1228 Bellcrank, Spring Arm

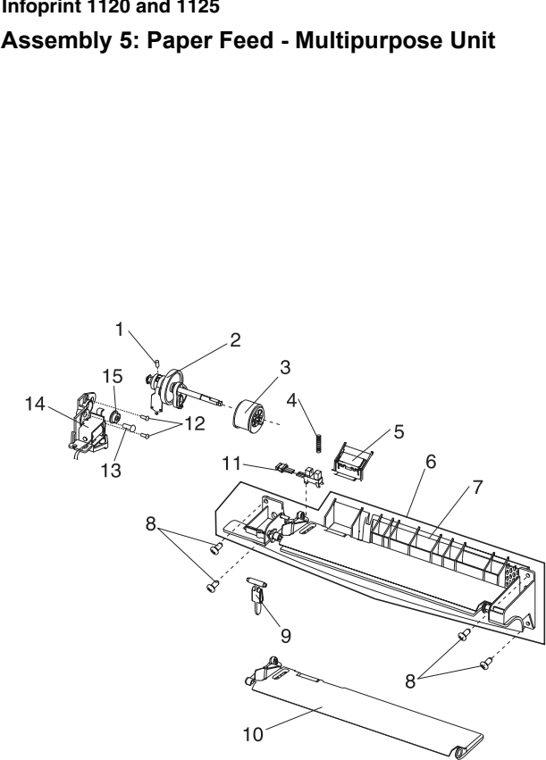

Assembly 5: Paper Feed - Multipurpose Unit

1 53p8215

2
53P9106 Arm Assembly MPT
Fully refurbished with 90-day warranty
53P9106
$27.00



3
53P8795 Pick Roll Assembly
Fully refurbished with 90-day warranty
53P8795
$19.00



4
53P8217 Spring Assembly Separator
Fully refurbished with 90-day warranty
53P8217
$16.00



5
53P8219 MPT Pad/Separator Arm Assembly
Fully refurbished with 90-day warranty
53P8219
$16.00



6
53P9134 Deflector Assembly MPT
Fully refurbished with 90-day warranty
53P9134
$39.00



7
56P0125 Deflector, Lower
Fully refurbished with 90-day warranty
56P0125
$59.00



8
56P9750 Fan RIP
New
56P9750 (New)
$54.00



9
53P8220 Flag MPT Paper Out
Fully refurbished with 90-day warranty
53P8220
$20.00



10
53P8218 Plate Assembly MPT
Fully refurbished with 90-day warranty
53P8218
$19.00



11
53P8914 Sensor MPT Paper Out
Fully refurbished with 90-day warranty
53P8914
$19.00



12
53P8213 Screw Damper
Fully refurbished with 90-day warranty
53P8213



13
14
53P8893 Solenoid Assembly MPT
Fully refurbished with 90-day warranty
53P8893
$30.00



15
53P8214 Bushing Pick Roll Shaft
Fully refurbished with 90-day warranty
53P8214
$16.00

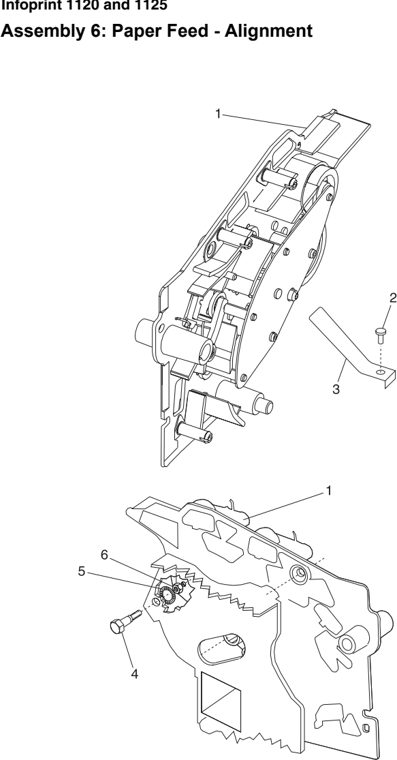

Assembly 6: Paper Feed - Alignment

1
53P8221 Alignment Paper Feed Assembly
Fully refurbished with 90-day warranty
53P8221
$26.00



2 53P8617 Parts Packet, Screw (Paper Feed)

3 53P9127 Clip, Reference Ground
4 53P8346 Screw, Paper Reference Adjustment

5 53P8355 Washer, Reference Adjustment

6 53P8356 Nut, Paper Reference Adjustment

NS 53P8617 Parts Packet, Screw (Alignment Asm Mounting)

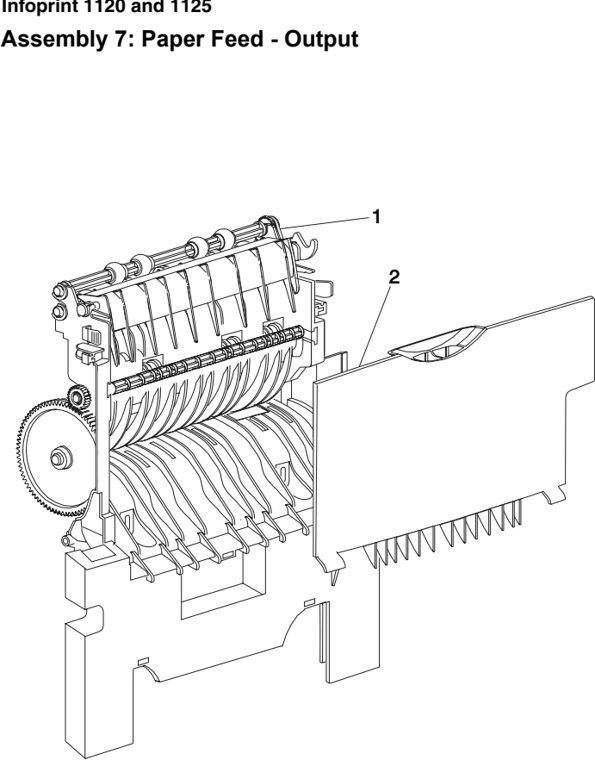

Assembly 7: Paper Feed - Output

1
53P8931 Redrive assembly 250 in/250 out
New
53P8931 (New)

Retired, no longer available: Contact for alternatives



2
53P8876 Door assembly redrive 250 sheet
Fully refurbished with 90-day warranty
53P8876 56p1351
$29.00



NS 53P8222 Spring, Upper Diverter

NS 53P8610 Deflector, Upper Redrive

NS 53P8617 Parts Packet, Screw (Duplex Path)

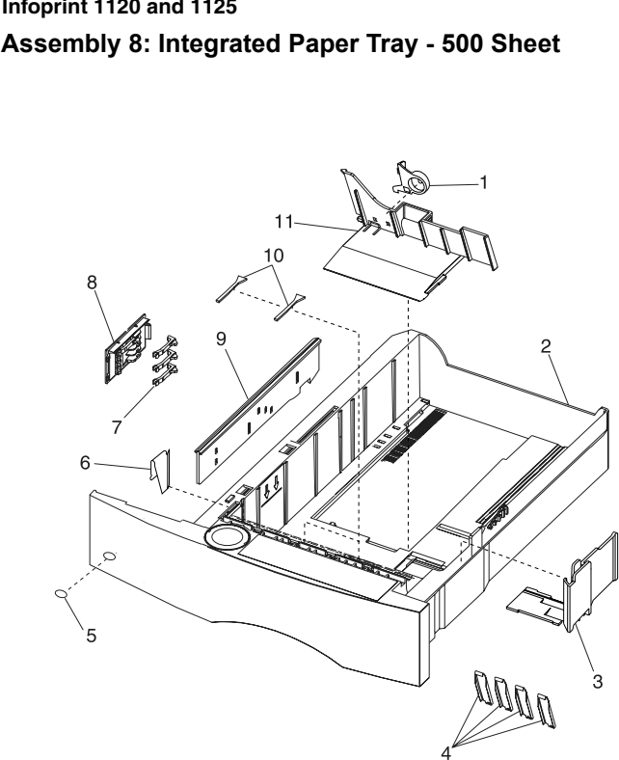

Assembly 8: Integrated Paper Tray - 500 Sheet

8 - 1 53P8473 1 Latch, Back Restraint

2 53P8459 1 Tray Assembly 500 Sheet

3 53P8747 1 Restraint, Side

4 53P8266 4 Strip, Wear

5 53P8483 1 Label, Tray Option Number

6 53P8464 1 Plate, 500 Tray Wear

7 53P8229 3 Finger, Autosize

8 53P8228 1 Plate, Snap-in

9 53P8463 1 Slider, Autosize 500

10 53P8226 2 Pad, Restraint

11 53P9135 1 Restraint, Back

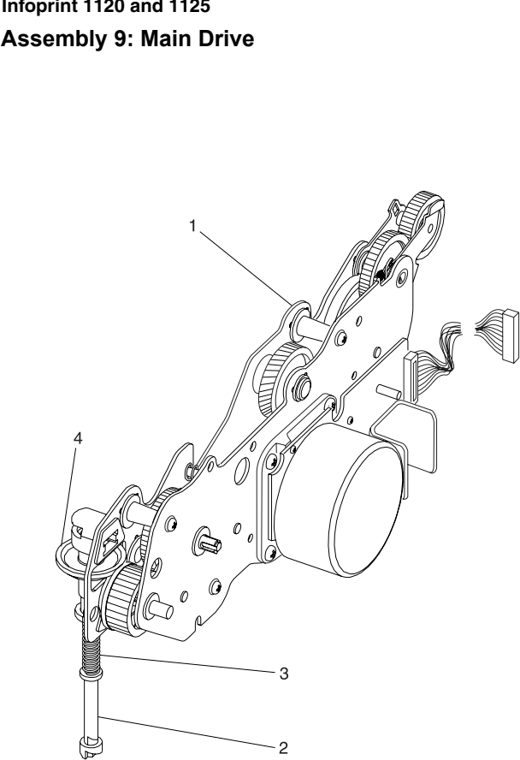

Assembly 9: Main Drive

53P8894 Gearbox Assembly with Motor
Fully refurbished with 90-day warranty
53P8894
$39.00



53P8925 Shaft, Power Takeoff 250
New
53P8925 (New)
$59.00



53P8457 Shaft Takeoff 500
New
53P8457 (New)
$59.00



53P8256 Spring Power Takeoff
Fully refurbished with 90-day warranty
53P8256
$16.00



56P2162 Bevel Gear
Fully refurbished with 90-day warranty
56P2162
$24.00



NS 53P8617 Parts Packet, Screw (Gearbox Mounting)

NS 53P8617 Parts Packet, Screw (Motor Mounting)

NS 53P8772 Clip, Cable

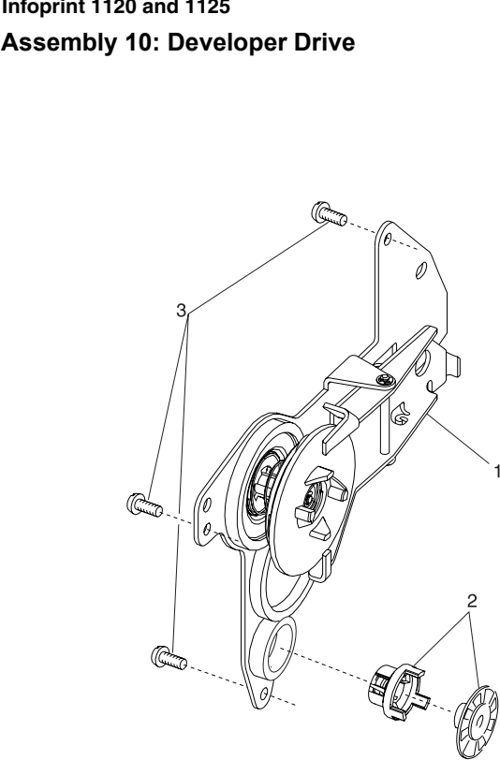

Assembly 10: Developer Drive

10 - 1 53P8451 1 Developer Drive Assembly

2 53P8922 1 Parts Packet, Developer Drive Shaft, Coupler

Gear #55

3 53P8617 3 Parts Packet, Screw (Developer Drive

Ground)

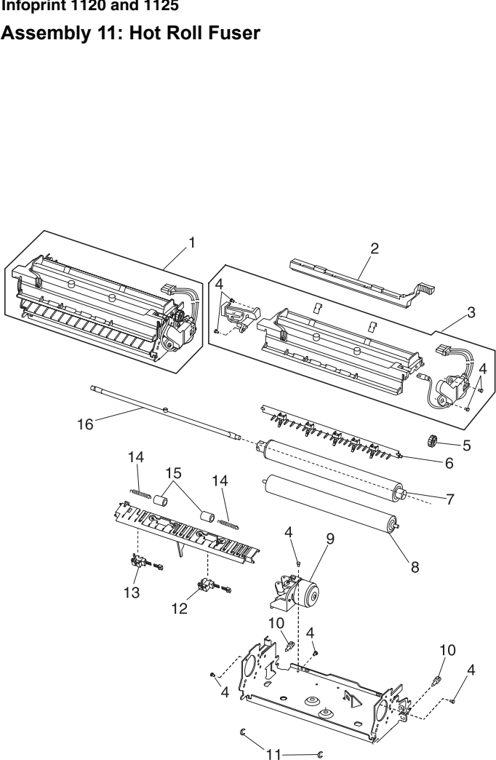

Assembly 11: Hot Roll Fuser

56P9104 IBM Fuser 1120 1125
Fully refurbished with 90-day warranty
56P9104

Retired, no longer available: Contact for alternatives



2 53P9103 Wiper Assembly, Wet

56P0150 Cover Fuser Assembly with Thermistor
Fully refurbished with 90-day warranty
56P0150
$89.00



4 53P8617 Parts Packet, Screws:
Contact Assembly (4)
Solenoid Mounting (1)
Board Cover Mounting (1)
Fuser Cover Assembly (4)
Hanger (7)

5 53P8439 Gear, Upper Redrive

6 53P9196 Housing, Detack Assembly

7 53P8896 Hot Roll

8 56P0126 Backup Roll

9 53P9128 Envelope Conditioner Solenoid Assembly

10 Fuser Card Assembly (included with 11-3, pn 56P0150)

11 53P8487 Screw, Fuser Mounting

12 53P8249 Parts Packet, Retainer (Backup Roll Bellcrank)

13 53P8877 Sensor, Narrow Media

14 53P8872 Sensor, Exit

15 53P8409 Spring, Redrive Idler

16 53P8240 Roller, Redrive Idler

17 53P8900 Lamp, 115V 630W CC Gold

NS 53P8488 Cover, Fuser Wiper Cavity

NS 53P8897 Grip Ring

NS 53P8915 Clip, Hot Roll Bearing<

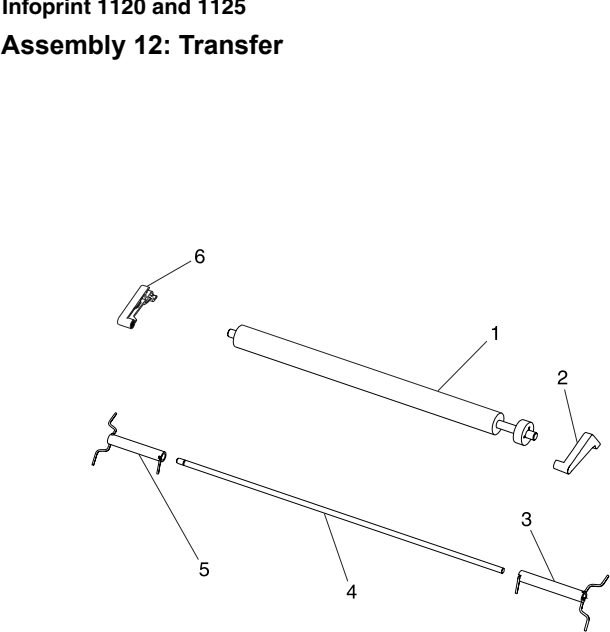

Assembly 12: Transfer

28P2017 Transfer Roll
New
28P2017 (New)
$40.00



2 53P8293 Arm, Transfer Roll Assembly Right

3 53P8242 Spring, Transfer Roll Right

4 53P8243 Shaft, Transfer Pivot

5 53P8241 Spring, Transfer Roll Left

6 53P8460 Arm, Transfer Roll Left

NS 53P8249 Parts Packet, Retainer (Pivot Shaft)

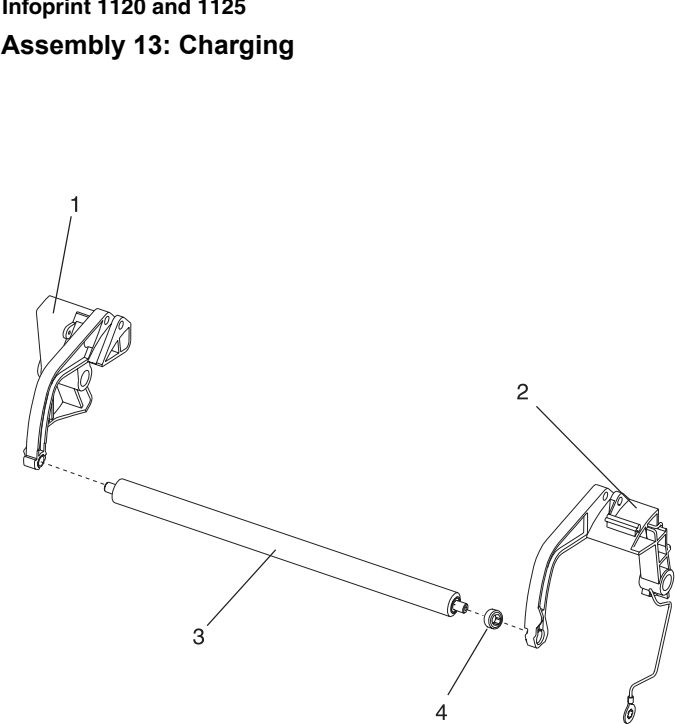

Assembly 13: Charging

1 53P8348 Link Assembly, Charge Left Kit

28P2016 Charge Roll
New
28P2016 (New)
$41.00



4 53P8456 Bushing, Charge Roll

NS 53P8617 Parts Packet, Screw (Charge Roll)
Assembly-13-Charging

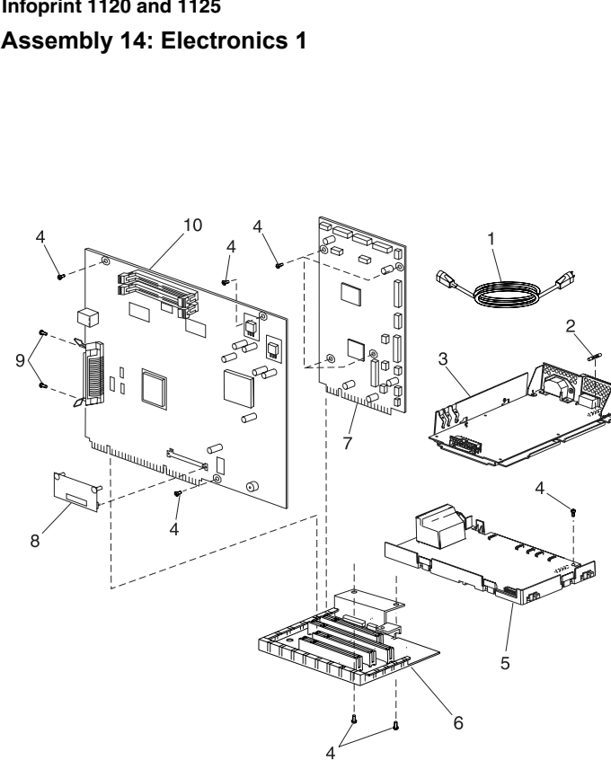

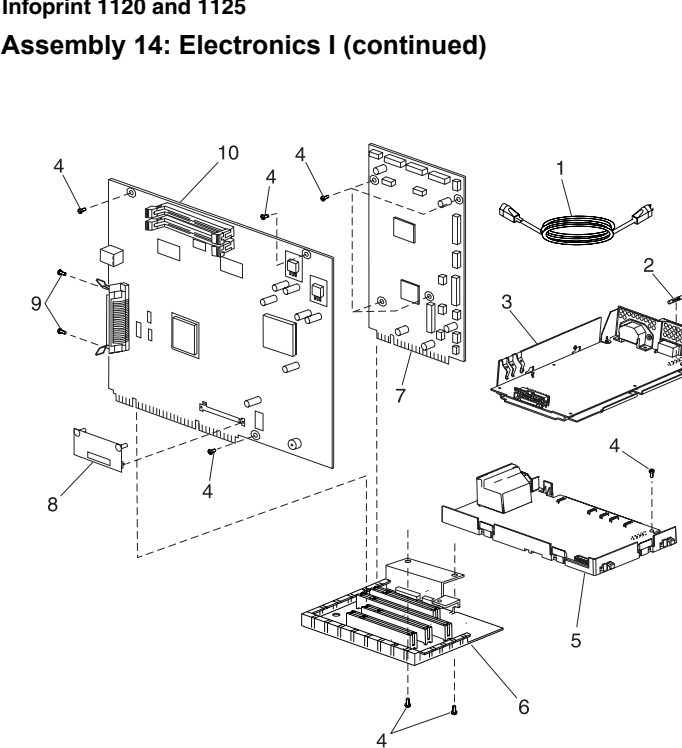

Assembly 14: Electronics 1

1 1342514 Power Cord Set, 8 ft.

2 53P8923 Fuse, for 110 V ac LVPS 10 a

2 53P8632 Fuse, for 110 V ac LVPS 5 a

53P8898 4520 LVPS Low Volt Power Supply
Fully refurbished with 90-day warranty
53p8898

Retired, no longer available: Contact for alternatives



53P8617 Parts Packet
Fully refurbished with 90-day warranty
53P8617
$38.00



Screw(s):
Controller Board Mtg (2)
Controller Board Mtg Front (2)
Controller Mtg Ground (1)
Engine Board Mtg (6)
Engine Board Mtg Top (2)
HVPS Mtg
INA Cover Mtg (12)
Interconnect Board Mtg (2)
Interconnect Board Shield Ground (1)
Interconnect Shield Mtg (5)
Outer Shield Mtg (10)
Parallel Connector Mtg (2)
53P8899 Power Supply High Voltage HVPS
Fully refurbished with 90-day warranty
53P8899
$49.00



56P0131 Interconnect Board Assembly, 1 slot
Fully refurbished with 90-day warranty
56P0131
$75.00



56P1014 IBM 1120 Engine Board
Fully refurbished with 90-day warranty
56P1014 Advanced exchange

Retired, no longer available: Contact for alternatives



9 Screws

10
56P1190 IBM 1120 RIP Board
Fully refurbished with 90-day warranty
56P1190 I

Retired, no longer available: Contact for alternatives





10


56P1191 RIP Board for 1120n
Fully refurbished with 90-day warranty
56P1191 I

Retired, no longer available: Contact for alternatives


Assembly 14: Electronics I


- 4 53P8617 1 Parts Packet, Screw(s):
??Controller Board Mtg (2)

??Controller Board Mtg Front (2)

??Controller Mtg Ground (1)

??Engine Board Mtg (6)

??Engine Board Mtg Top (2)

??HVPS Mtg

??INA Cover Mtg (12)

??Interconnect Board Mtg (2)

??Interconnect Board Shield Ground (1)

??Interconnect Shield Mtg (5)

??Outer Shield Mtg (10)

??Parallel Connector Mtg (2)

5 53P8899 1 Power Supply, High Voltage

6 53P8941 1 Interconnect Board Assembly 2 slot 1125

6 56P0131 1 Interconnect Board Assembly 1 slot 1120

7 56P1015 1 Engine Board Assembly 1125

7 56P1014 1 Engine Board Assembly 1120

8 56P1118 1 Card Assembly, Bar Code

8 56P2030 1 Card Assembly, IPDS and SC5/TNE

8 56P1234 1 Card Assembly, Prescribe 5/4/2 Flash

8 53P9097 1 Card Assembly, Image Quick

9 53P9113 2 Screws, Parallel Connector Mounting

10 56P1192 1 Controller Board Assembly (Non Network)

1125

10 56P1193 1 Controller Board Assembly (Network) 1125

10 56P1190 1 Controller Board Assembly (Non-Network)

1120

10 56P1191 1 Controller Board Assembly (Network) 1120

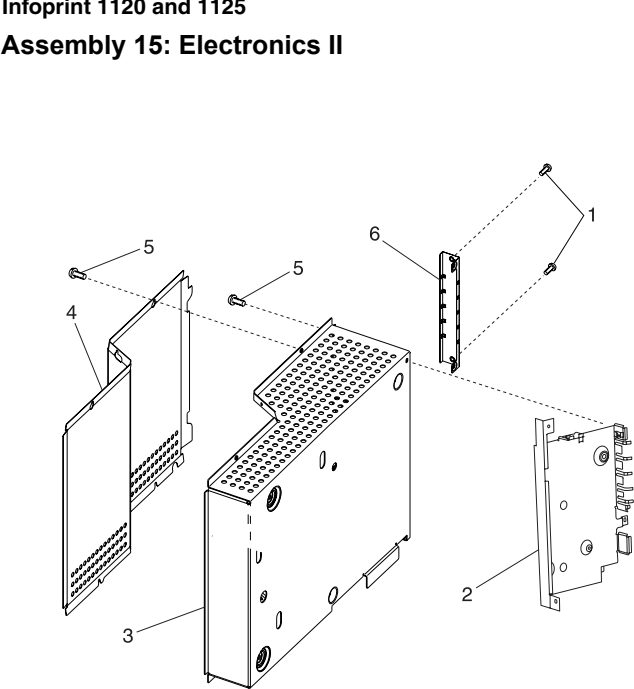

Assembly 15: Electronics II

1 53P8617 6 Parts Packet, Screw (INA Cover Mounting)

2 56P0113 1 Engine Board Shield Assembly 1125

3 53P8944 1 Shield, Inner Assembly, 2 Slot 1125

3 53P8936 1 Shield, Inner Assembly, 1 Slot 1120

4 53P8946 1 Shield, Outer 2 Slot 1125

4 53P8926 1 Shield, Outer 1 Slot 1120

5 53P8617 4 Parts Packet, Screw (Outer Shield Mounting)

5 53P8617 6 Parts Packet, Screw (Outer Shield Mounting)

6 53P8317 1 Cover, INA Flat (Blank)

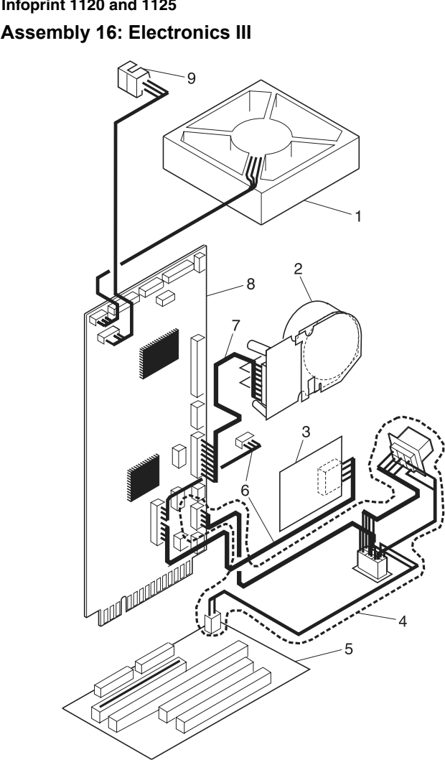

Assembly 16: Electronics III

1 53P8912 1 Fan, Main

2 53P8894 1 Gearbox, w/Motor

3 56P1139 1 Board, Input Tray (ITC)

4 53P8902 1 Cable, Auto Connect Bottom

5 53P8941 1 Interconnect Board Assembly

6 53P8901 1 Cable, Integrated Tray

7 53P8903 1 Cable, Main Drive Motor

8 56P1015 1 Engine Board Assembly - 1125

8 56P1014 1 Engine Board Assembly - 1120

9 56P1049 1 Sensor, Standard Bin Level

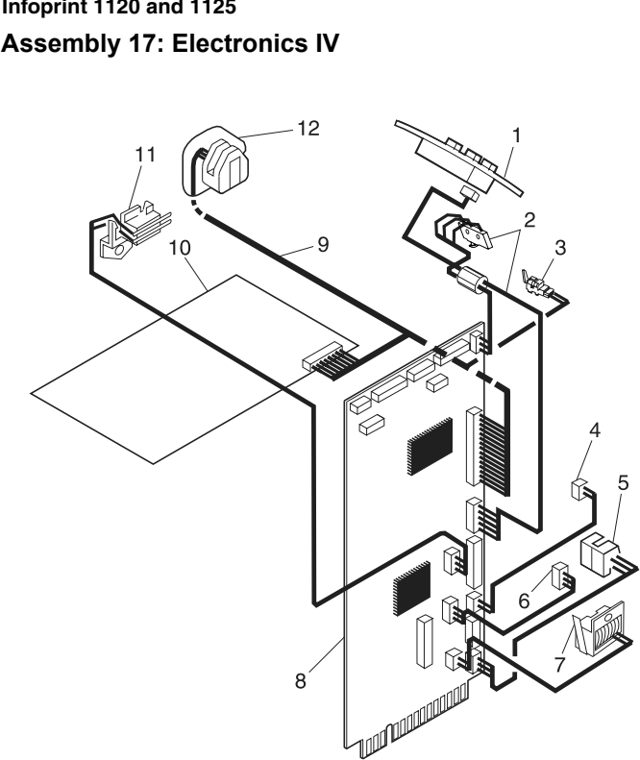

Assembly 17: Electronics IV

1 53P8882 1 Operator Panel Assembly 110 V

1 56P0123 1 Operator Panel Assembly 220 V

2 53P8909 1 Switch, Cover Open w/Operator Panel Cable

Assembly

3 53P8207 1 Sensor, Input

4 53P8945 1 Pick Arm Assembly (500) 1125

4 53P8937 1 Pick Arm Assembly (250) 1120

5 53P8914 1 Sensor, MPT Paper Out

6 53P8945 1 Pick Arm Assembly (500) 1125

6 53P8937 1 Pick Arm Assembly (250) 1120

7 53P8634 1 MPT Solenoid

8 56P1014 1 Engine Board Assembly (1120)

8 56P1015 1 Engine Board Assembly (1125)

9 53P8904 1 Cable, Front Harness

10 53P8899 1 Power Supply, High Voltage

11 53P9131 1 Smart Contact Assembly

12 53P8335 1 Sensor, Toner Cartridge Level

NS 53P8908 1 Cable, Deflector

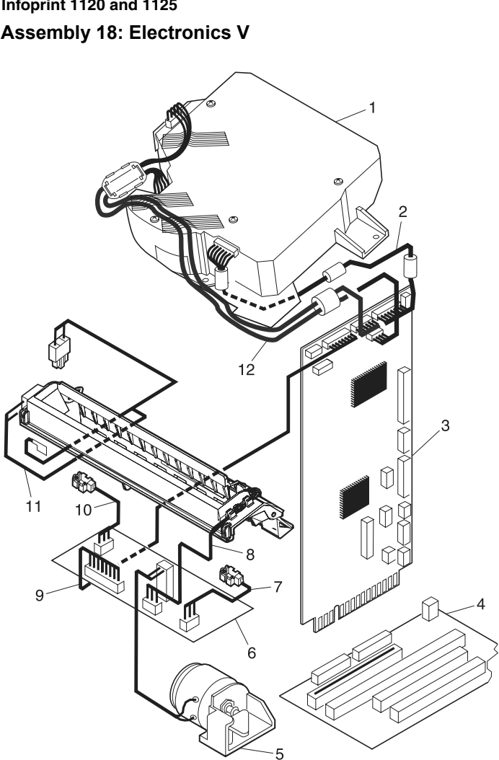

Assembly 18: Electronics V

1 53P8892 1 Printhead Assembly

2 53P8905 1 Cable, Laser

3 56P1014 1 Engine Board Assembly - 1120

3 56P1015 1 Engine Board Assembly - 1125

4 53P8941 1 Interconnect Board Assembly

5 53P9128 1 Solenoid Assembly, Envelope Conditioner

6 56P0150 1 Fuser Board Assembly

7 53P8872 1 Sensor, Exit

8 56P0150 1 Cover, Fuser Assembly with Thermistor

9 53P8911 1 Cable, Engine Board to Fuser Board

10 53P8877 1 Sensor, Narrow Media

11 53P8910 1 Cable, Fuser AC Fuser to LVPS

12 53P8906 1 Cable, Hysnc

12 53P8907 1 Cable, Mirror Motor

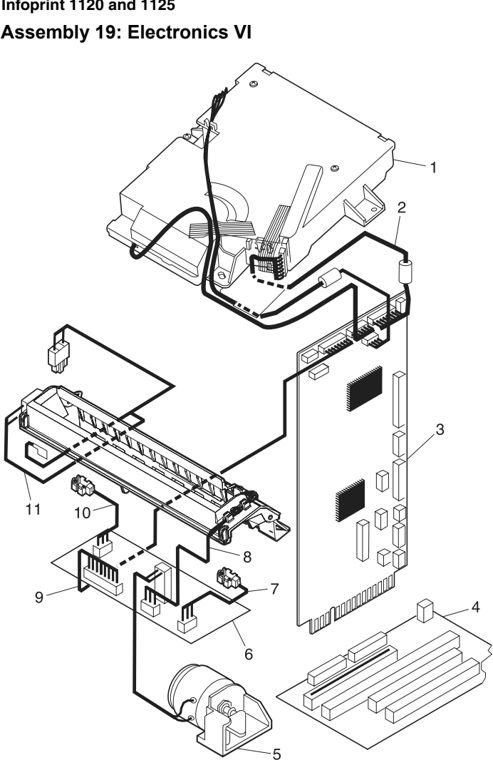

Assembly 19: Electronics VI

1 53P8892 1 Printhead Assembly

2 53P8905 1 Cable, Laser

3 56P1014 1 Engine Board Assembly (1120)

3 56P1015 1 Engine Board Assembly (1125)

4 53P8941 1 Interconnect Board Assembly

5 53P9128 1 Solenoid Assembly, Envelope Conditioner

6 56P0150 1 Fuser Board Assembly

7 53P8872 1 Sensor, Exit

8 56P0150 1 Cover, Fuser Assembly with Thermistor

9 53P8911 1 Cable, Engine Board to Fuser Board

10 53P8877 1 Sensor, Narrow Media

11 53P8910 1 Cable, Fuser AC Fuser to LVPS

NS 53P8906 1 Cable, Hysnc/Mirror Motor

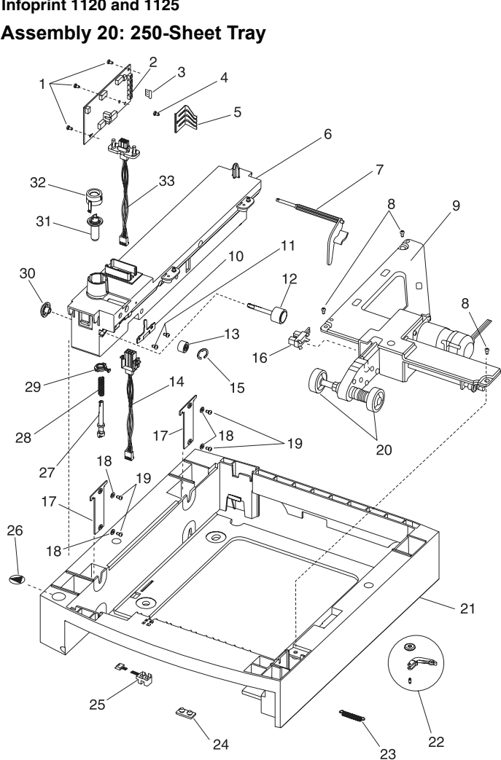

Assembly 20: 250-Sheet Tray

1 53P8617 3 Parts Packet, Screw (Option Board)

2 56P0557 1 Board, Option Tray

3 53P8362 1 Jumper, pin

4 53P8617 1 Parts Packet, Screw (Switch Spring)

5 53P8211 1 Spring, Switch Activate

6 53P8326 1 Stud Assembly, 250 Frame

7 53P8928 1 Arm, Paper Out 250

8 53P8617 3 Parts Packet, Screw (Auto Comp

Mounting)

9 53P8423 1 Pick Arm Assembly

10 53P8258 1 Wear Plate, Pass Thru 250 Tray

11 53P8617 2 Parts Packet, Screw (Wear Plate

Mounting)

12 53P8257 1 Roll Assembly, Drive 500 Dual

13 53P8331 1 Roller, Skewed Backup

14 53P8263 1 Cable, 250 Tray Option

15 53P8330 1 Retainer, Roller

16 53P8294 1 Sensor, Paper Low

17 53P8384 2 Bracket, 250 Frame Retention

18 53P8382 4 Parts Packet, Washer

19 53P8617 4 Parts Packet, Screw

20 75P5958 1 Roll Assembly, Pick (2 per pack)

21 53P8484 1 Base, 250 Option

22 53P8203 1 Tray Bias Arm Assembly

23 53P8322 1 Spring, Tray Bias

24 53P8209 4 Pad, Machine Mounting

25 53P8265 1 Sensor, Option Pass Thru

26 53P8493 1 Label, Options

27 53P8253 1 Shaft, 250 Drive

28 53P8256 1 Spring, Power Takeoff

29 53P8261 1 Bushing, Drive Shaft Low

30 53P8255 1 Gear, Feed Roll

31 53P8254 1 Gear, Bevel

32 53P8260 1 Bearing, Drive Shaft

33 53P8262 1 Cable, 250 Auto Connect Option

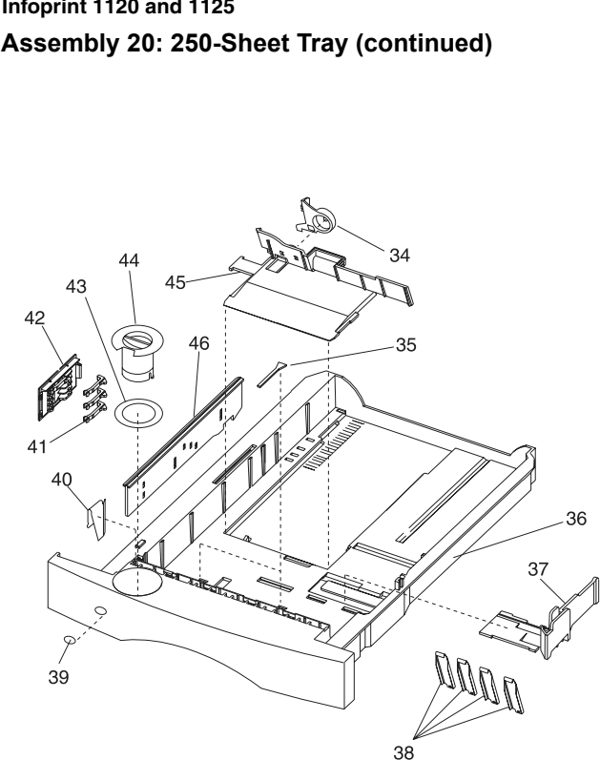

Assembly 20: 250-Sheet Tray (continued)

34 53P8473 1 Latch, Back Restraint

35 53P8226 2 Restraint Pad

36 53P8446 1 Tray Assembly, 250-Sheet Option

37 53P8823 1 Restraint, Side 250-Sheet Tray

38 56P1279 4 Wear Strips

39 53P8748 1 Label, Tray Option Number

40 53P8227 1 Clip, 250 Tray Wear

41 53P8229 4 Finger, Autosize

42 53P8228 1 Plate, Snap-In

43 53P8614 1 Label, Paper Size

44 53P8447 1 Knob, Paper Size

45 53P9136 1 Restraint, Back 250 Sheet Tray

46 53P8230 1 Slider, Autosize 250

NS 53P8264 1 Spring, Backup Roller

NS 56P2540 1 Spring, Bellcrank 250 Tray Option

NS 53P8325 2 Bushing, Drive Roll

NS 53P8259 1 Bellcrank, Roller Release

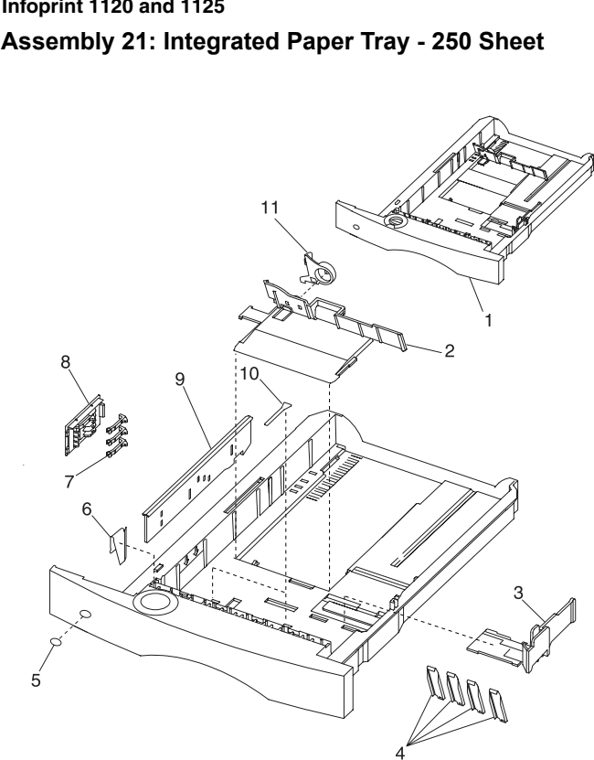

21  Assembly 21: Integrated Paper Tray - 250 Sheet

53P8446 Paper Tray 250-sheet
Fully refurbished with 90-day warranty
53P8446
$43.00



2 53P9136 Restraint, Back 250 Sheet Tray

3 53P8823 Restraint, Side 250 Sheet Tray

4 56P1279 Wear Strips

5 53P8483 Label, Tray Option Number

6 53P8227 Clip, 250 Tray Wear

53P8229 Finger Autosize
Fully refurbished with 90-day warranty
53P8229
$20.00



8 53P8228 Plate, Snap-In

53P8230 Cam
Fully refurbished with 90-day warranty
53P8230



10
53P8226 Restraint Pad
Fully refurbished with 90-day warranty
53P8226
$20.00



11
53P8473 Latch Back Restraint
Fully refurbished with 90-day warranty
53P8473 99a1601
$19.00

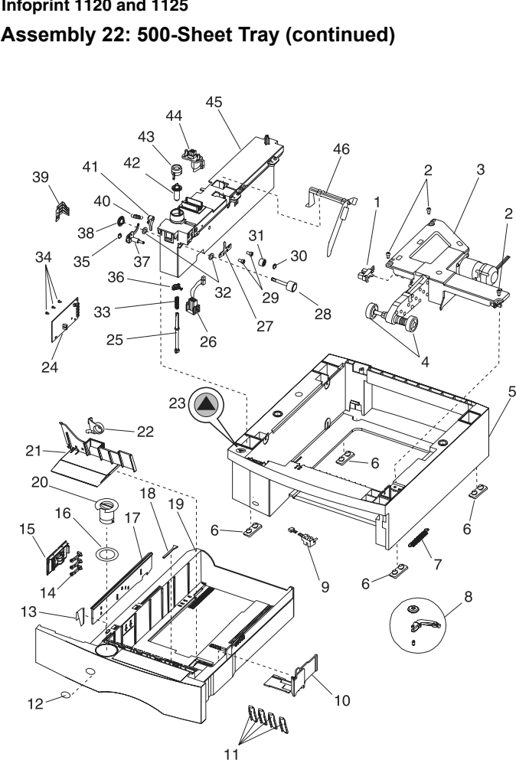

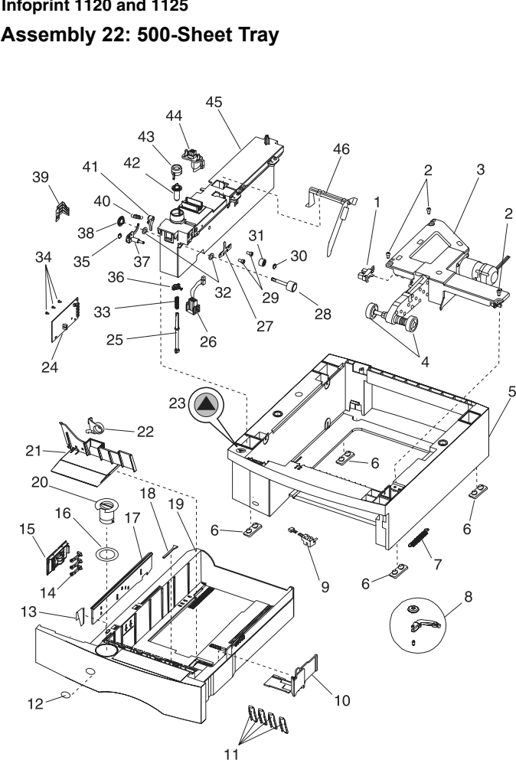

Assembly 22: 500-Sheet Tray

53P8294 Sensor Paper Low
Fully refurbished with 90-day warranty
53P8294
$19.00



56P9637 Frame, printhead controller
New
56P9637 (New)
$57.00



53P8315 Pick Arm Assembly (500)
Fully refurbished with 90-day warranty
53P8315
$59.00





53P8212 Pick Roll Assembly
New
53P8212 Set of two (New)
$18.00





53P8209 Pad Base 500
New
53P8209 (New)
$19.00



53P8322 Spring Tray Bias
Fully refurbished with 90-day warranty
53P8322
$13.00



53P8203 Tray Bias Arm Assembly
Fully refurbished with 90-day warranty
53P8203



53P8265 Sensor Option Pass Thru
New
53P8265 (New)

Retired, no longer available: Contact for alternatives



10
53P8747 Restraint Side 500-Sheet Tray
Fully refurbished with 90-day warranty
53P8747
$19.00



11
53P8266 Wear Strips
New
53P8266 (New)
$20.00



12
53P8748 Label Tray Option Number
Fully refurbished with 90-day warranty
53P8748



13
53P8464 Plate 500 Tray Wear
Fully refurbished with 90-day warranty
53P8464



14
53P8229 Finger Autosize
Fully refurbished with 90-day warranty
53P8229
$20.00



15
53P8228 Plate Snap-In
Fully refurbished with 90-day warranty
53P8228
$20.00



16
53P8614 Label Paper Size
Fully refurbished with 90-day warranty
53P8614



17
53P8463 Slider Autosize 500
Fully refurbished with 90-day warranty
53P8463



18
53P8226 Restraint Pad
Fully refurbished with 90-day warranty
53P8226
$20.00



19
53P8459 Tray Assembly 500 Sheet
Fully refurbished with 90-day warranty
53P8459
$49.00



20
53P8447 Knob Paper Size
Fully refurbished with 90-day warranty
53P8447



21
53P8474 Restraint Back 500-Sheet Tray
New
53P8474 (New)
$31.00



22
53P8473 Latch Back Restraint
Fully refurbished with 90-day warranty
53P8473 99a1601
$19.00



23
53P8493 Label Options
Fully refurbished with 90-day warranty
53P8493



24
56P0557 Board, Tray ITC
Fully refurbished with 90-day warranty
56P0557
$25.00



25
53P8328 Shaft 500 Drive
Fully refurbished with 90-day warranty
53P8328
$17.00



26
53P8263 Cable 500 Auto Connect Bottom
Fully refurbished with 90-day warranty
53P8263
$16.00



27
53P8568 Wear Plate Pass Thru
Fully refurbished with 90-day warranty
53P8568



28

29
53P8617 Parts Packet
Fully refurbished with 90-day warranty
53P8617
$38.00



30
53P8330 Retainer Roller
Fully refurbished with 90-day warranty
53P8330



31
Sale53P8331 Roller Skewed Backup
New
53P8331 99a0451 (New)
$12.00 $8.00



32
53P8325 Bearing Drive Roll
Fully refurbished with 90-day warranty
53P8325



33
53P8256 Spring Power Takeoff
Fully refurbished with 90-day warranty
53P8256
$16.00



34
53P8617 Parts Packet
Fully refurbished with 90-day warranty
53P8617
$38.00



35
53P8249 Parts Packet Retainer (Aligner Assembly)
Fully refurbished with 90-day warranty
53P8249



36
53P8261 Bearing Drive Shaft Low
Fully refurbished with 90-day warranty
53P8261
$16.00



37
53P8327 Aligner Assembly Paper
Fully refurbished with 90-day warranty
53P8327



38
53P8255 Gear Feed Roll
Fully refurbished with 90-day warranty
53P8255
$16.00



39
53P8211 Spring Switch Activate
Fully refurbished with 90-day warranty
53P8211
$16.00



40
53P8264 Spring Backup Roller
Fully refurbished with 90-day warranty
53P8264
$13.00



41
53P8491 Bellcrank Roller Release
Fully refurbished with 90-day warranty
53P8491



42
53P8264 Spring Backup Roller
Fully refurbished with 90-day warranty
53P8264
$13.00



43
53P8260 Bearing Drive Shaft
Fully refurbished with 90-day warranty
53P8260
$16.00



44
53P8262 Cable 500 Auto Connect Top
Fully refurbished with 90-day warranty
53P8262
$16.00



45
53P8526 Stud Assembly 500 Frame
Fully refurbished with 90-day warranty
53P8526



46
53P8485 Arm Paper Out 500
Fully refurbished with 90-day warranty
53P8485
$24.00

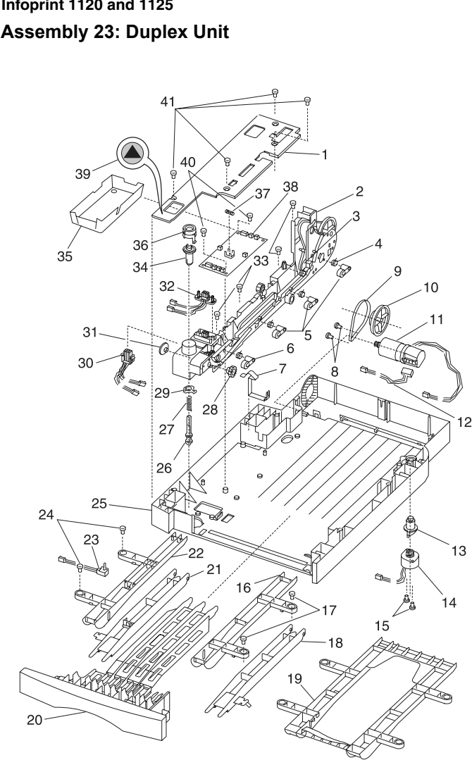

Assembly 23: Duplex Unit

1 53P8498 1 Cover, Engine Board

2 53P8517 1 Main Frame Assembly 250 Duplex

2 53P8517 1 Main Frame Assembly 500 Duplex

3 53P8280 1 Idler Assembly, Belt Tension

4 53P8282 3 Spring, Aligner

5 53P8279 3 Guide Assembly, Paper

6 53P8499 1 Guide Assembly, Paper

7 53P8274 2 Spring, Chassis Ground

8 53P8319 2 Parts Packet, Screw (Motor Mount 3 mm)

9 53P8283 1 Belt, Motor 114 Gear

10 53P8284 1 Pulley, Main Drive 96/54 Gear

11 53P8278 1 Motor Assembly, DC Drive

12 53P8497 1 Cable, D.C. Motor Tach 250 Duplex

13 53P8268 1 Parts Packet, Cam Follower Assembly Kit

14 53P8273 1 Actuator Assembly, Deflector

15 53P8319 2 Parts Packet, Screw (Actuator Mtg)

16 53P9089 1 Guide, Return RH Upper 250 Duplex

17 53P8319 2 Parts Packet, Screw (Guide Mounting)

18 53P8504 1 Guide, Return RH Lower 250 Duplex

18 53P8504 1 Guide, Return RH Lower 500 Duplex

19 53P8461 1 Guide, Upper 500 Duplex

20 56P0115 1 Tray Assembly, Jam Removal 250 Duplex

20 56P0115 1 Tray Assembly, Jam Removal 500 Duplex

21 53P9112 1 Guide, LH Lower Return 250 Duplex

21 53P8506 1 Guide, LH Lower Return 500 Duplex

22 53P9090 1 Guide, Return LH Upper 250 Duplex

23 53P8291 1 Sensor, Exit - Optical

24 53P8319 2 Parts Packet, Screw (Upper Guide Mtg)

25 53P9122 1 Base Assembly, w/Tray Bias 250 Duplex

25 53P8501 1 Base Assembly, w/Tray Bias 500 Duplex

26 53P8276 1 Shaft, Duplex Drive

27 53P8275 1 Spring, Duplex Shaft

28 53P8281 1 Gear, Pass Thru Idler

29 53P8261 1 Bearing, Drive Shaft Low

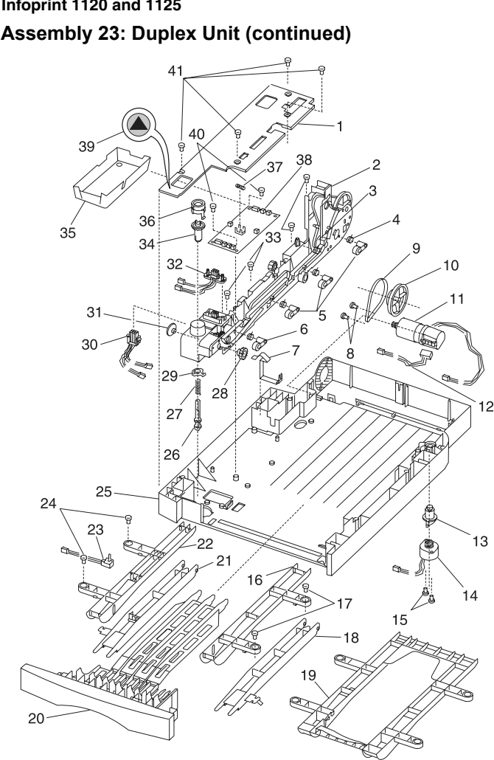

Assembly 23: Duplex Unit (continued)

30 53P8272 1 Cable, Auto Connect Bottom

31 53P8255 1 Gear, Pass Thru Drive Roll

32 53P8271 1 Cable, Auto Connect Top

33 53P8319 4 Parts Packet, Screw (Main Frame

Assembly Mounting)

34 53P8277 1 Gear, Duplex Bevel

35 53P8323 1 Pan, Engine Board Drip

36 53P8260 1 Bearing, Drive Shaft

37 53P8245 1 Fuse,.8A SB

38 56P0314 1 Board, System with Jumper 250/500

Duplex

39 53P8493 1 Label, Options

40 53P8319 2 Parts Packet, Screw

41 53P8319 4 Parts Packet, Screw

NS 53P8792 1 Roller, Duplex Pass Thru

NS 53P8362 1 Jumper, Engine Board 250 Duplex

NS 53P8314 2 Parts Packet, Retainer (6 mm Backup Roll)

NS 53P8319 2 Parts Packet, Screw (M3x6L:G Supradrive)

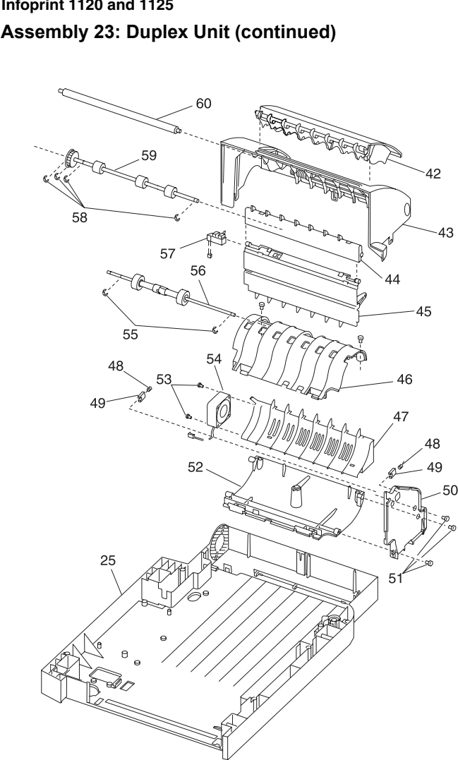

Assembly 23: Duplex Unit (continued-2)

42 53P9118 1 Top Cover Assembly, Movable 250 Duplex

42 53P8502 1 Top Cover Assembly, Movable 500 Duplex

43 53P9121 1 Top Cover Assembly, Fixed 250 Duplex

43 53P8503 1 Top Cover Assembly, Fixed 500 Duplex

44 53P8324 1 Guide, Lower Entry 250 Duplex

44 53P8515 1 Guide, Lower Entry 500 Duplex

45 53P8496 1 Guide Assembly, Paper Decurl

46 53P8286 1 Guide, Center Drive Upper

47 53P8269 1 Air Plenum

48 53P8288 2 Spring, Decurl Shaft

49 53P8287 2 Bushing, Decurl Shaft

50 53P9116 1 Frame Assembly, 250 Duplex

51 53P8319 3 Parts Packet, Screw (Outer Frame)

52 53P8285 1 Guide Assembly, Center Drive

53 53P8251 1 Parts Packet, Fan Mounting Kit

54 53P8270 1 Fan, Cooling Duplex

55 53P8314 2 Parts Packet, Retainer (5 mm Main Drive)

56 53P8290 1 Main Drive Assembly

57 53P8500 1 Sensor, Input Optical 500 Duplex

58 53P8314 4 Parts Packet, Retainer (6 mm Drive Roll)

59 53P8289 1 Shaft Assembly, Drive 250 Duplex

59 53P8516 1 Shaft Assembly, Drive 3 Roll 500 Duplex

60 53P8425 1 Shaft Assembly, Decurl

NS 53P8319 1 Parts Packet, Screw (Tensioner)

NS 53P8314 2 Parts Packet, Retainer (6 mm Clutch Roll)

NS 53P8209 4 Feet, Duplex Base

NS 53P8519 1 Shaft Assembly, Drive 2 Roll 500 Duplex

NS 53P8314 1 Parts Packet, Retainer (6 mm Top Cover)

NS 56P0116 1 Guide, Debuckle

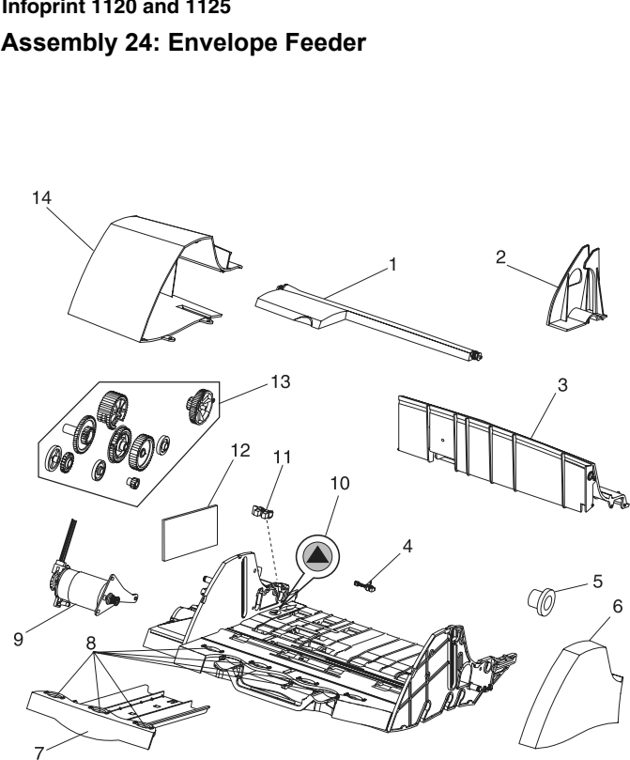

Assembly 24: Envelope Feeder

42 53P9118 1 Top Cover Assembly, Movable 250 Duplex

42 53P8502 1 Top Cover Assembly, Movable 500 Duplex

43 53P9121 1 Top Cover Assembly, Fixed 250 Duplex

43 53P8503 1 Top Cover Assembly, Fixed 500 Duplex

44 53P8324 1 Guide, Lower Entry 250 Duplex

44 53P8515 1 Guide, Lower Entry 500 Duplex

45 53P8496 1 Guide Assembly, Paper Decurl

46 53P8286 1 Guide, Center Drive Upper

47 53P8269 1 Air Plenum

48 53P8288 2 Spring, Decurl Shaft

49 53P8287 2 Bushing, Decurl Shaft

50 53P9116 1 Frame Assembly, 250 Duplex

51 53P8319 3 Parts Packet, Screw (Outer Frame)

52 53P8285 1 Guide Assembly, Center Drive

53 53P8251 1 Parts Packet, Fan Mounting Kit

54 53P8270 1 Fan, Cooling Duplex

55 53P8314 2 Parts Packet, Retainer (5 mm Main Drive)

56 53P8290 1 Main Drive Assembly

57 53P8500 1 Sensor, Input Optical 500 Duplex

58 53P8314 4 Parts Packet, Retainer (6 mm Drive Roll)

59 53P8289 1 Shaft Assembly, Drive 250 Duplex

59 53P8516 1 Shaft Assembly, Drive 3 Roll 500 Duplex

60 53P8425 1 Shaft Assembly, Decurl

NS 53P8319 1 Parts Packet, Screw (Tensioner)

NS 53P8314 2 Parts Packet, Retainer (6 mm Clutch Roll)

NS 53P8209 4 Feet, Duplex Base

NS 53P8519 1 Shaft Assembly, Drive 2 Roll 500 Duplex

NS 53P8314 1 Parts Packet, Retainer (6 mm Top Cover)

NS 56P0116 1 Guide, Debuckle

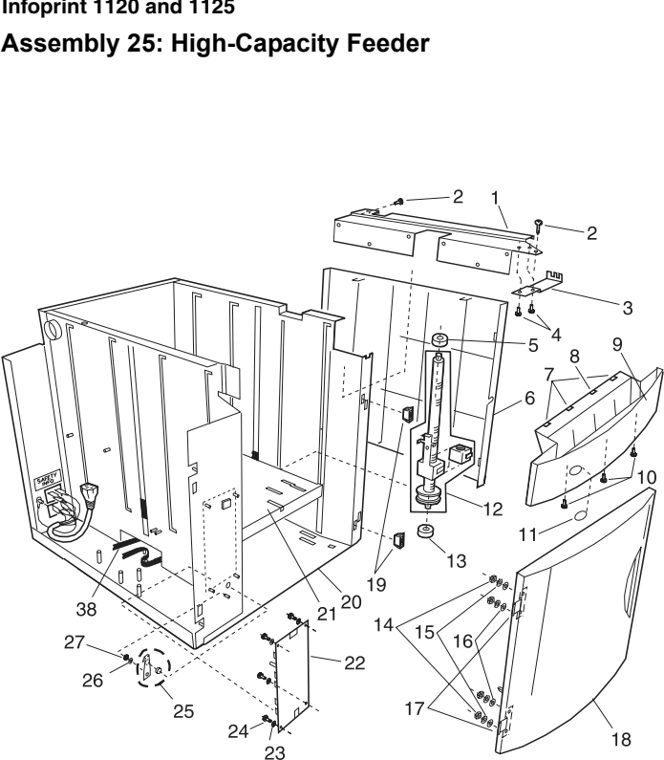

Assembly 25: High-Capacity Feeder

1 53P8372 1 Frame, Printer Support Frame 2

2 53P8380 3 Parts Packet, Screw (Printer Support 2

Frame Mounting

3 53P8395 2 Clamp, Feed Frame

4 53P8380 4 Parts Packet, Screw (Feed Frame Clamp)

5 53P8391 2 Bearing, Nyliner Leadscrew Top

6 53P8368 1 Cover, Side

7 53P8385 3 Strip, Wear

8 53P8815 1 Strip, Wear Dimple

9 53P8604 1 Deflector Assembly Front

10 53P8380 3 Parts Packet, Screw (Deflector Mt 8-18 x 7/8

inch)

11 53P8748 1 Label, Tray Option Number

12 53P8374 2 Transfer Lead Screw Assembly

13 53P8398 2 Bearing, Leadscrew Bottom

14 53P8381 4 Parts Packet, Nut (6-32 Hinge Mounting)

15 53P8382 4 Parts Packet, Washer (Hinge Mounting Flat)

16 53P8382 4 Parts Packet, Washer (Hinge Mounting Star)

17 53P8369 2 Hinge, Door

18 53P8367 1 Door Assembly, Front

19 53P8370 2 Magnet, Door

20 53P8363 1 Frame Assembly

21 53P8373 1 Tray Assembly, Elevator

22 56P0069 1 Card Assembly, 2000 Option Control

23 53P8382 4 Parts Packet, Washer (Card Asm Mounting)

24 53P8380 4 Parts Packet, Screw (Card Asm Mounting)

25 53P8310 1 Kit, Door Switch Spring and Bumper

26 53P8382 1 Parts Packet, Washer (Door Sw itch Spring

Mounting)

27 53P8381 1 Parts Packet, Nut (Door Switch Spring

Mounting)

NS 53P8390 1 Cable, Optical Sensor

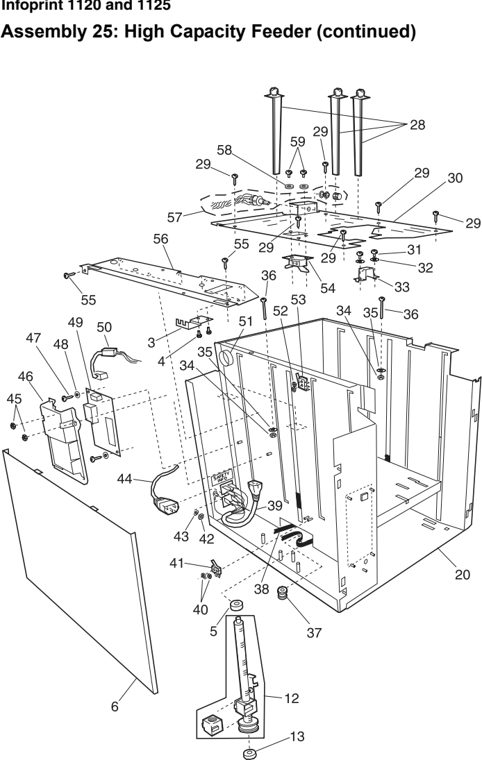

Assembly 25: High Capacity Feeder (continued)

28 53P8244 3 Guide, Rear Paper use with 53P8247

29 53P8380 6 Parts Packet, Screw (Top Frame Mounting)

30 53P8247 1 Frame Assembly, Top with labels

31 53P8380 2 Parts Packet, Screw

32 53P8382 2 Parts Packet, Washer (Top Frame Clamp)

33 53P8400 1 Clamp, Top Frame Mounting

34 53P8381 2 Parts Packet, Nut (Base Mounting)

35 53P8382 2 Parts Packet, Washer (Base Mounting)

36 53P8380 2 Parts Packet, Screw (Base Mounting)

37 53P8375 1 Pulley, Idler

38 53P8376 1 Belt, Drive

39 53P8602 1 Cable, AC Internal Wiring

40 53P8381 2 Parts Packet, Nut (2-56 Switch Mounting)

41 53P8366 1 Switch, Lower Limit Microswitch

42 53P8381 2 Parts Packet, Nut (Power Supply Ground)

43 53P8382 4 Parts Packet, Washer (Motor Plate Mtg)

44 53P8603 1 Cord, AC External Jumper

45 53P8381 2 Parts Packet, Nut (Power Supply Cover)

46 53P8396 1 Cover, Power Supply

47 53P8380 2 Parts Packet, Screw (Power Supply Bd

Mtg)

48 53P8382 2 Parts Packet, Washer (Power Supply

Board)

49 53P8377 1 Power Supply Board

50 53P8397 1 Cable, Low Voltage Power Supply

51 53P8388 1 Bushing

52 53P8381 2 Parts Packet, Nut - 2-56

53 53P8366 1 Switch, Paper Low

54 53P8364 1 Sensor Assembly, Paper Out/Upper Limit

55 53P8380 3 Parts Packet, Screw (Support 1 Frame

Mtg)

56 53P8371 1 Frame, Printer Support 1

57 53P8394 1 Parts Kit, Paper Size Switch Assembly

58 53P8382 2 Parts Packet, Washer (Sensor Bracket

Mtg)

59 53P8380 2 Parts Packet, Screw (Sensor Bracket Mtg)

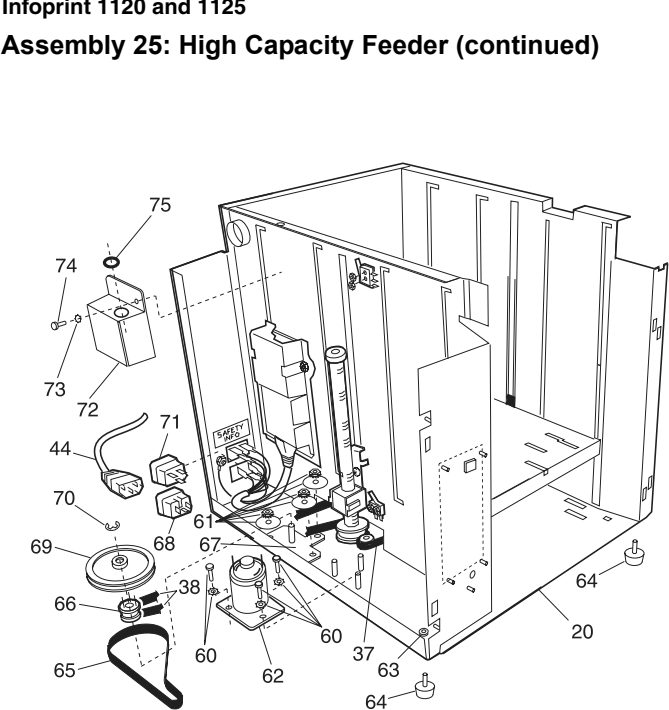

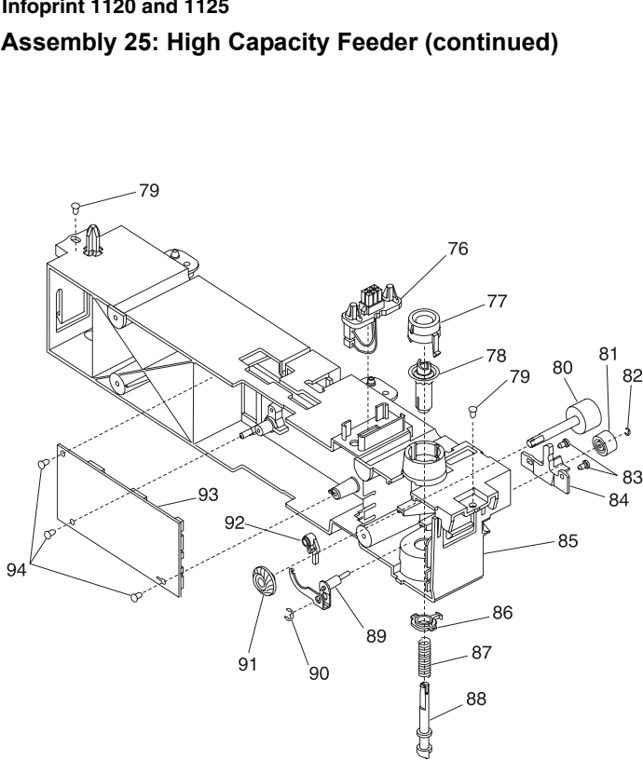

Assembly 25: High Capacity Feeder (continued-2)

60 53P8596 3 Parts Packet, Screw w/washer (Motor Mt)

61 53P8597 3 Parts Packet, Nut & washer (Drive Pulley

Plate)

62 53P8598 1 Motor Assembly, DC

63 53P8389 4 Parts Packet, Foot (Stabilizer)

64 53P8389 4 Parts Packet, Mounting Feet

65 53P8807 1 Belt, DC Motor Drive

66 53P8375 1 Idler Pulley, Belt Tension

67 53P8809 1 Plate, Drive Pulley

68 53P8810 1 AC Receptacle, Lower AC

69 53P8811 1 Pulley, Drive

70 53P8812 1 Retainer, C-Clip

71 53P8813 1 AC Receptacle, Upper AC

72 53P8814 1 Cover, Top LVPS

73 53P8599 3 Nut w/lock washer, Top LVPS Cover

Mounting

74 53P8599 1 Screw, Top LVPS Cover Mounting

75 53P8600 1 Grommet, Top LVPS Cover

76 53P8262 1 Cable, 250 Auto Connect

77 53P8260 1 Bearing, Drive Shaft

78 53P8254 1 Gear, Bevel

79 53P8617 2 Parts Packet, Screw (Frame Mounting)

80 53P8257 1 Roll Assembly, Drive 250 Option

81 53P8331 1 Roll, Skew Backup

82 53P8249 1 Parts Packet, Retainer (Roller)

83 53P8380 2 Parts Packet, Screw (Wear Plate

Mounting)

84 53P8258 1 Plate Wear, Pass Thru

85 53P8326 1 Stud Assembly, 250 Frame

86 53P8261 1 Bearing, Drive Shaft Low

87 53P8256 1 Spring, Power Takeoff

88 53P8253 1 Shaft, 250 Drive

89 53P8327 1 Aligner Assembly, Paper

Assembly 25: High Capacity Feeder (continued-3)

90 53P8249 1 Parts Packet, Retainer (Aligner Assembly)

91 53P8255 1 Gear, Feed Roll

92 53P8259 1 Bellcrank, Roller Release

93 56P0557 1 Card Assembly, 2000 Tray Option

94 53P8617 3 Parts Packet, Screw (Tray Option Card

Mtg)

NS 53P8380 10 Parts Packet, Screw (Door to Door Frame

Mounting)

NS 53P8381 6 Parts Packet, Nut Support Frame 1Hex,

Support Frame 2, Hex

NS 53P8382 6 Parts Packet, Washer (Support Frame 1

Star, Support Frame 2 Star)

NS 53P8387 1 Cable, HCIT-14Pin Flex

NS 53P8264 1 Spring, Backup Roller

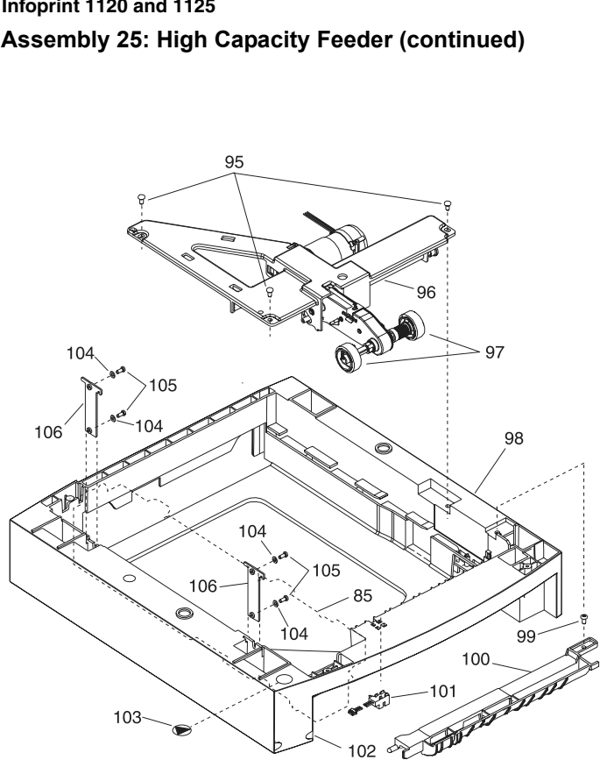

Assembly 25: High Capacity Feeder (continued-4)

90 53P8249 1 Parts Packet, Retainer (Aligner Assembly)

91 53P8255 1 Gear, Feed Roll

92 53P8259 1 Bellcrank, Roller Release

93 56P0557 1 Card Assembly, 2000 Tray Option

94 53P8617 3 Parts Packet, Screw (Tray Option Card

Mtg)

NS 53P8380 10 Parts Packet, Screw (Door to Door Frame

Mounting)

NS 53P8381 6 Parts Packet, Nut Support Frame 1Hex,

Support Frame 2, Hex

NS 53P8382 6 Parts Packet, Washer (Support Frame 1

Star, Support Frame 2 Star)

NS 53P8387 1 Cable, HCIT-14Pin Flex

NS 53P8264 1 Spring, Backup Roller25 - 95 53P8617 3 Parts Packet, Screw (Auto Com p

Assembly Mounting)

96 53P8379 1 Arm Assembly, Pick 2000

97 75P5958 1 Roll Assembly, Pick (2 per pack)

98 53P8392 1 Base, 2000 Option

99 53P8617 1 Parts Packet, Screw (Deflector Mounting)

100 53P8383 1 Deflector, Base

101 53P8265 1 Sensor, Pass Thru

102 53P8483 1 Label, Tray Option Number

103 53P8493 1 Label, Options

104 53P8382 4 Parts Packet, Washer (Bracket 250 Frame

Retention Mounting)

105 53P8617 4 Parts Packet, Screw (Bracket 250 Frame

Retention Mounting)

106 53P8384 2 Bracket, 250 Frame Retention

NS 53P8399 1 Cable, Paper Low Switch

NS 53P8401 1 Cable, Lower Limit Switch

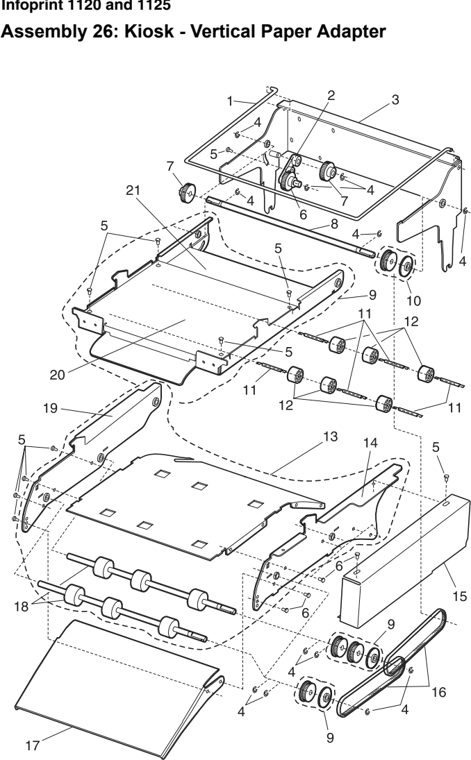

Assembly 26: Kiosk - Vertical Paper Adapter

1 53P8608 1 Bail, Support

2 53P8621 1 Arm Assembly, Pivot

3 53P8643 1 Mounting, Frame Assembly

4 53P8615 12 Parts Packet, Retainer

5 53P8770 16 Parts Packet, Screw

6 53P8627 1 Gear, Idler

7 53P8626 2 Gear, Idler

8 53P8427 1 Shaft, Drive Rear

9 53P8756 1 Tray Assembly, Backup Roller

10 53P8472 3 Parts Packet, Pulley

11 53P8402 6 Spring, Backup Roller

12 53P8393 6 Roller, Backup

13 53P8638 1 Tray Assembly, Drive Roller

14 53P8408 1 Frame Assembly, Right Side

15 53P8612 1 Cover, Right

16 53P8607 2 Belt, 185G

17 53P8489 1 Guide, Paper Exit

18 53P8406 2 Shaft Assembly, Drive Roller

19 53P8421 1 Frame Assembly, Left Side

20 53P8404 1 Cover, Backup Tray

21 53P8386 1 Tray, Backup Roller

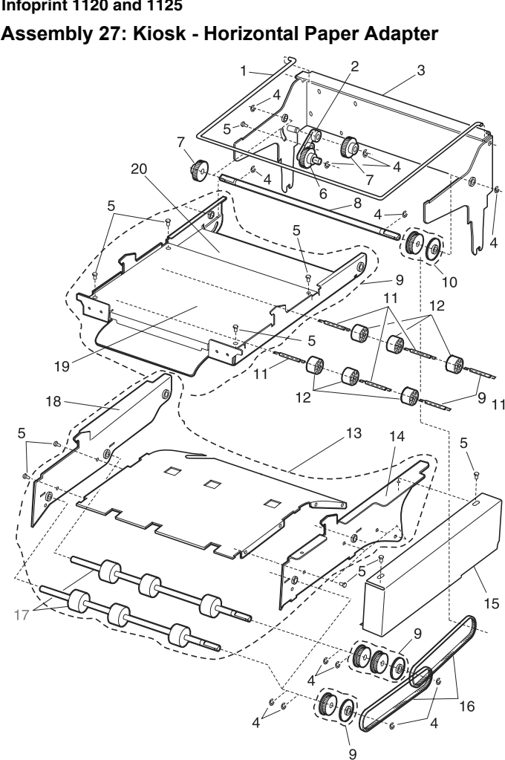

Assembly 27: Kiosk - Horizontal Paper Adapter

1 53P8608 1 Bail, Support

2 53P8621 1 Arm Assembly, Pivot

3 53P8643 1 Mounting, Frame Assembly

4 53P8615 12 Parts Packet, Retainer

5 53P8770 16 Parts Packet, Screw

6 53P8627 1 Gear, Idler

7 53P8626 2 Gear, Idler

8 53P8427 1 Shaft, Drive Rear

9 53P8756 1 Tray Assembly, Backup Roller

10 53P8472 3 Parts Packet, Pulley

11 53P8402 6 Spring, Backup Roller

12 53P8393 6 Roller, Backup

13 53P8638 1 Tray Assembly, Drive Roller

14 53P8408 1 Frame Assembly, Right Side

15 53P8612 1 Cover, Right

16 53P8607 2 Belt, 185G

17 53P8489 1 Guide, Paper Exit

18 53P8406 2 Shaft Assembly, Drive Roller

19 53P8421 1 Frame Assembly, Left Side

20 53P8404 1 Cover, Backup Tray

21 53P8386 1 Tray, Backup Roller27 - 1 53P8608 1 Bail, Support

2 56P8621 1 Arm Assembly, Pivot

3 53P8643 1 Mounting, Frame Assembly

4 53P8615 12 Parts Packet, Retainer

5 53P8770 15 Parts Packet, Screw

6 53P8627 1 Gear, Idler

7 53P8626 2 Gear, Idler

8 53P8427 1 Shaft, Drive Rear

9 53P8756 1 Tray Assembly, Backup Roller

10 53P8472 3 Parts Packet, Pulley

11 53P8402 6 Spring, Backup Roller

12 53P8393 6 Roller, Backup

13 53P8642 1 Tray Assembly, Drive Roller

14 53P8620 1 Frame Assembly, Right Side

15 53P8612 1 Cover, Right

16 53P8607 2 Belt, 185G

17 53P8406 2 Shaft Assembly, Drive Roller

18 53P8618 1 Frame Assembly, Left Side

19 53P8404 1 Cover, Backup Tray

20 53P8386 1 Tray, Backup Roller
