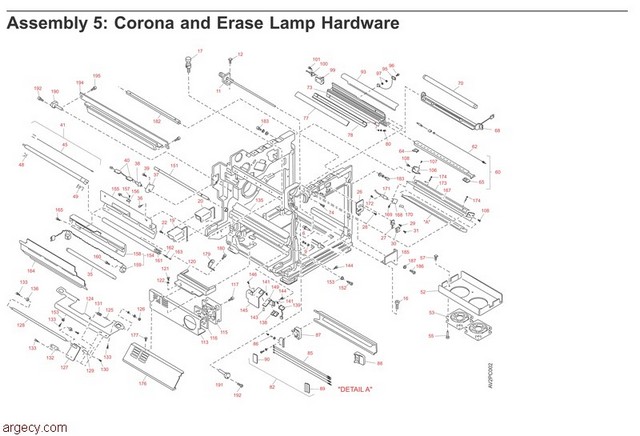

Assembly 5 Corona and Erase Lamp Hardware







6 88F2421 Stopper, Transfer Station

9 88F1627 Nut, M8 PP

11 NP

12 06F0420 4 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

13 NP

14 06F0420 4 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

16 57G6696 Screw, Developer Adjust

17 57G6697 Screw, Adjust 2U Asm

19 06F0091 Starter, Erase Lamp (ST101)

20 57G6698 Starter, Erase Lamp (ST102)

22 06F0411 4 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 10 PP

26 88F2426 Holder, Connector

27 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

28 88F3092 Holder, Sensor

29 06F0411 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 10 PP

30 88F3335 Cover, SW Drum Asm

31 06F0401 Screw, Phillips Pan Hd with Star Wshr & Wshr M3 X 16 PP

32 88F2427 Rail, Slide

33 06F0413 8 Screw, Phillips Bind Hd M4 X 10 PP

35 06F0089 Lamp, Erase (PL102)

36 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

37 88F2428 Holder, Connector

38 53F1866 Cable, High Voltage (Preclean Corona)

39 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

40 88F3391 Ferrite Bead

41
57G6505 Corona Assembly
Fully refurbished with 90-day warranty
57G6505



41
30H6934 Preclean Corona Asm
Fully refurbished with 90-day warranty
30H6934



45 30H6586 Wires (8), Corona

48 88F1632 Cover, Terminal

49 88F1633 Cover, Terminal Wire

52 NP

53 06F0194 Fan, B108 & B109

55 06F0413 4 Screw, Bind Hd with Star Wshr & Wshr M4 X 50 PP

57 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

60
57G6505 Corona Assembly
Fully refurbished with 90-day warranty
57G6505



62

64 88F1632 Cover, Terminal

65 88F1633 Cover, Terminal Wire

68
57G6700 Secondary Erase Asm
Fully refurbished with 90-day warranty
57G6700



70
57G6508 Erase Lamp
Fully refurbished with 90-day warranty
57G6508
$166.00



73 NP

74 88F3349 Screw, Tapping Tight

77 NP

78 NP

80 06F0413 Screw, Bind Hd with Star Wshr & Wshr M3 X 8 PP

82
57G6504 Charge Corona Assembly
Fully refurbished with 90-day warranty
57G6504



82 90H1155 Corona, Charge Asm ( IS1, ID1/2, IR3/4)

82 11L5201 Corona, Charge Asm (IS2, ID3/4)

85

86 90H1038 Terminal, Charge Corona (used with Corona

Asm. 90H1155 & 11L5201)

86 02N7109 Terminal, Charge Corona (used with Corona Asm. 57G6504)

87 90H1037 Endcap, Charge Corona Rear (used with Corona Asm. 90H1155 & 11L5201)

87 02N8718 Endcap, Charge Corona Rear (used with Corona Asm. 57G6504)

88 90H1036 Endcap, Charge Corona Front (used with Corona Asm. 90H1155 & 11L5201)

88 02N8717 Endcap, Charge Corona Front (used with Corona Asm. 57G6504)

89 88F2434 Cover, Wire Holder

90 88F2435 Cover, Wire Holder

93 NP

95
53F1869 Sensor Secondary Erase Lamp
Fully refurbished with 90-day warranty
53F1869



96 06F0401 Screw, Phillips Pan Hd with Star Wshr & Wshr M3 X 10 PP

97 06F0406 4 Washer, FP PP

99 NP

100
53F1868 HV Cable Asm (PreCharge Corona)
Fully refurbished with 90-day warranty
53F1868



101 06F0401 Screw, Phillips Pan Hd with Star Wshr & Wshr M3 X 10 PP

106 88F2438 Holder

107 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

108 06F0420 4 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

113 NP

115 06F0194 Fan, Left Front Developer (B104)

116 NP

117 06F0413 Screw, Bind Hd M4 X 50 PP

120 NP

121 06F0401 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 10 PP

122 06F0406 Washer, Special PP

124 NP

125 88F2443 Guide, C Spring

126 06F0407 Nut, M4 PP

127 88F2444 Spring, Pre-measure

128 NP

129 88F2446 Holder, Spring

130 06F0420 4 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 8 PP

131 88F2447 Spring, Compression Coil

132 88F2448 Holder, Spring

133 06F0420 11 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 P

135 30H6930 Guide, Lower Paper

136 88F2450 Bearing, Ball

138 88F2451 Holder, Transfer Sensor

139
53F1829 Sensor Drain Lever
Fully refurbished with 90-day warranty
53F1829



53F1829R Sensor Drain Lever Sw
Fully refurbished with 90-day warranty
53F1829R



141 06F0401 Screw, Phillips Pan Hd with Star Wshr & Wshr M3 X 6 PP

143 88F2452 Plate, Y.S Nut

144 06F0401 Screw, Phillips Pan Hd with Star Wshr & Wshr M3 X 10 PP

145 88F2453 Cover, Transfer Station Sensor

146 06F0401 Screw, Phillips Pan Hd with Star Wshr & Wshr M3 X 6 PP

149 88F2454 Holder, Transfer Station Sensor

151 88F2455 Stay, Transfer Station Stopper

152 06F0415 Bolt, Hexagon Socket Hd with Star Wshr M5 X 16 PP

153 06F0420 Washer, Press PP

154
57G6711 Erase Lamp Assembly
Fully refurbished with 90-day warranty
57G6711



155 90H2710 Holder, Preclean and Erase

156
53F1869 Sensor Secondary Erase Lamp
Fully refurbished with 90-day warranty
53F1869



157 06F0413 Screw, Phillips Bind Hd M3 X 6 PP

158 NP

159 57G6713 Cable, Secondary Erase Asm

160 88F1626 Screw, Phillips Pan Hd M3 X 10 PP

161 57G6714 Rail, Preclean Guide

162 88F1634 Spring, Reflector

163 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 8 PP

164 NP

165 06F0420 4 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 8 PP

167 57G6715 Guide, Charge Corona

168 06F0510 Holder, Charge Corona Connector

169 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 8 PP

170 06F0509 Plate, Connector Hold

171 53F1867 Cable, High Voltage (Charge Corona)

172 06F0401 Screw, Phillips Pan Hd with Star Wshr & Wshr M3 X 10 PP

173 57G6716 Spring, Reflector

174 06F0413 Screw, Phillips Bind Hd M4 X 6 PP

176 NP

177 06F0415 Bolt, Hexagon Socket Hd with Star Wshr & Wshr M4 X 10 PP

182 NP

183 06F0414 Bolt, Hexagon Socket Hd M8 X 30 PP

185 NP

186 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M5 X 12 PP

187 06F0420 Washer, Press PP

190 NP

191 NP

192 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP

194 NP

195 06F0420 Screw, Phillips Pan Hd with Star Wshr & Wshr M4 X 12 PP
